Product's Detail----Class----Glass Bottle ----BPT-4 Ramp Pressure Tester (automatic)
Click the right thumbnail to see larger image.



Detail Moredetail

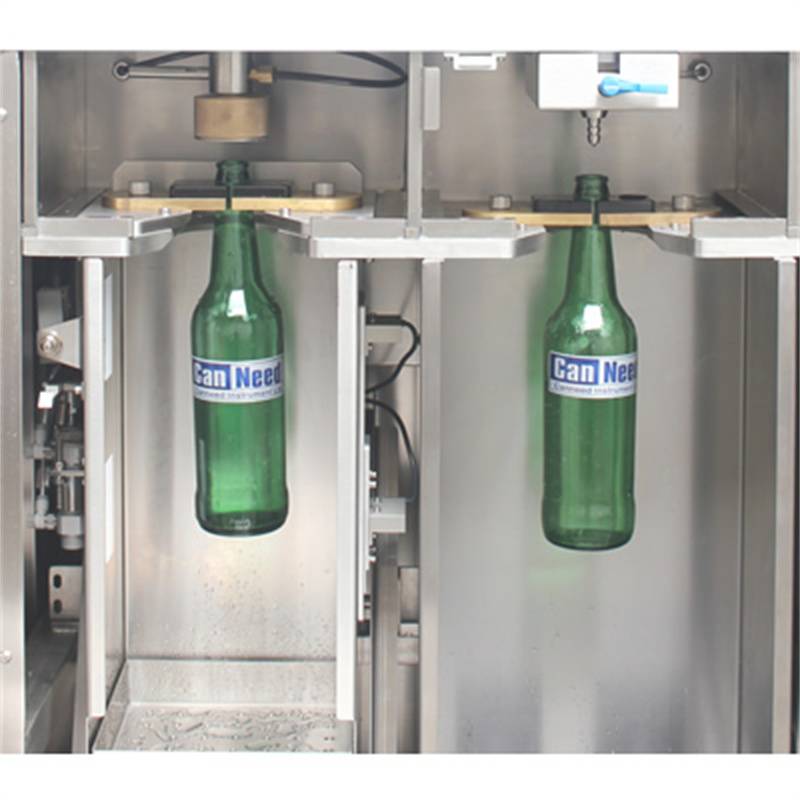

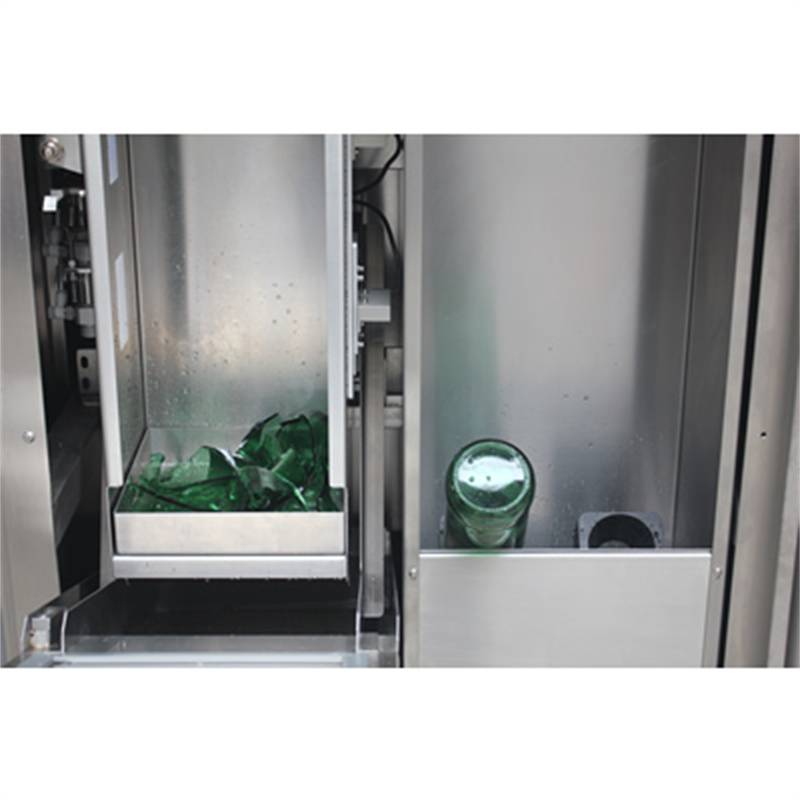

BPT-4 Ramp Pressure Tester is an advanced testing instrument for pressure testing glass containers,also can be used to test the burst value.
Two positions,high efficiency.PLC controlled,LCD touch screen display.Automatic clamping system,servo control pressure process.Display real-time data,test and save data automatically.
Two test ways: :linear pressurization and pressure maintaining.Users can choose testing way as to actual demands.

Advantages:
1 Automatic clamping system
2 Compensate pressure seal
3 Durable shim
4 Durable clamps
5 Automatic spot big and small bottles
6 Data can be output to PC or SPC
7 Automatic save data up to 1000
8 High efficiency
9 PLC controlled
10 Two test ways:linear pressurization and pressure maintaining
11 With calibration funtion
12 Safety interlocks on test chamber doors



Technical data:
*Measure range:0-6 MPa
*Resolution:0.01Mpa
*Water supply:0.1~0.3 Mpa
*Woking temperature:0-50º C
*Power supply:110-120 or 220/240V, 50/60 Hz
*Output interface:RS232
*Dimensions:830mm580mm1600mm
*Weight:120KG
