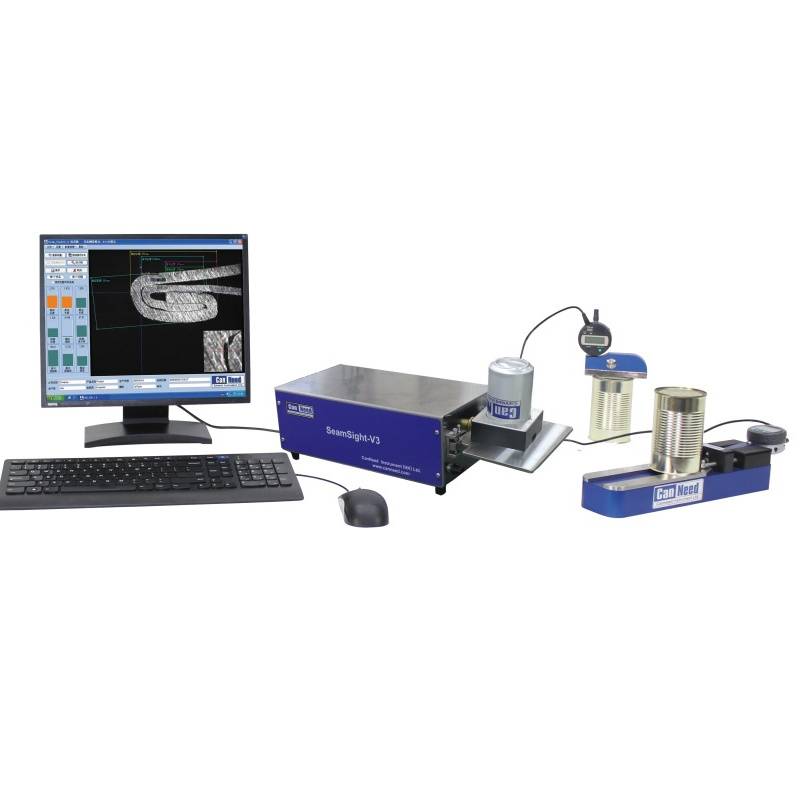

With CanNeed Automatic Seam Sight® Monitor, press only one key “Auto Measure” to do the line positioning automatically and the measurement to be finished within 1 second! It can measure the seam dimension automatically, efficiently, simply and also avoid operator mistake. Use the CanNeed SPC data collection system (CSG-200 countersink gauge & STG-200D seam thickness gauge), the actual seam thickness, actual countersink, etc., can be transferred to the computer automatically. Such data can generate a report together with other data, improving the process.

The machine adopted fully automatic inspecting technology, more efficient and more effectively reducing the human errors. It is the standard for evaluating can quality in can-making industry.

Automatic Seam Monitor（Automatic Cutting and Measurement）Equipped with Golden Lens® video capture device which interference-free of external light source and ensured the high image definition.

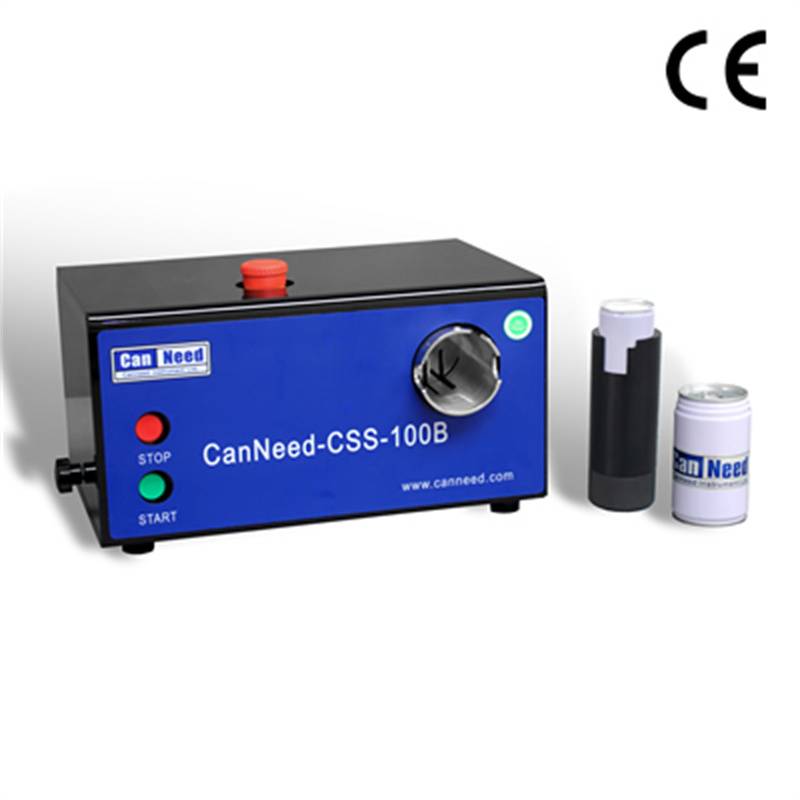

CanNeed-CSS-100B Anti-noise seam saw is provided with an anti-noise design and a special guide for 2- and 3-piece cans (65 mm dia.). Special seam circular saw with double cut for can double seam inspections. The CanNeed  -CSS-100B was specially designed  for 2 and 3-piece cans.

The nitrated blades achieve  together with  the speed of approx. 1.000  r/min. a very plain cut surface. The seam image on VSM 6A Automatic Seam Computer (Video Seam Monitors), and automatic seam measuring systems gets thereby very clear and improves measurement speed and reliability.

CanNeed-CSG-A Countersink Gauge (digital) is a digital gauge for measuring countersink depth parameters of aerosol cans. Equipped with Zero-Adjusting calibration platform and protection piece.

If purchased the adapter and cable, the gauge can be connected to a computer or SPC system for data collection, avoiding that the persons record the data. It can also used together with the seam sight monitor and output the measuring data to the PC.

Under defined conditions, CanNeed-CSRT-100 Coating Scratch Resistance Tester is used to determine the resistance of a single coating or a multi-coating of paint, varnish or related product to penetration by scratching with a hemispherical tipped needle or abrasion tool and metal scratching tool and so on.

Clamp the sample, adjust the testing pressure load and move the sample relatively to the tipped needle. If any scratches, there will be readings displaying on the machine.

The CanNeed Seam Sight ® -B system can automatically collect the data from STG-200-d Seam Thickness Gauge and CSG-d Countersink Gauge. The actual seam thickness and countersink can be generated reports together with other data. To optimize the measurement process.

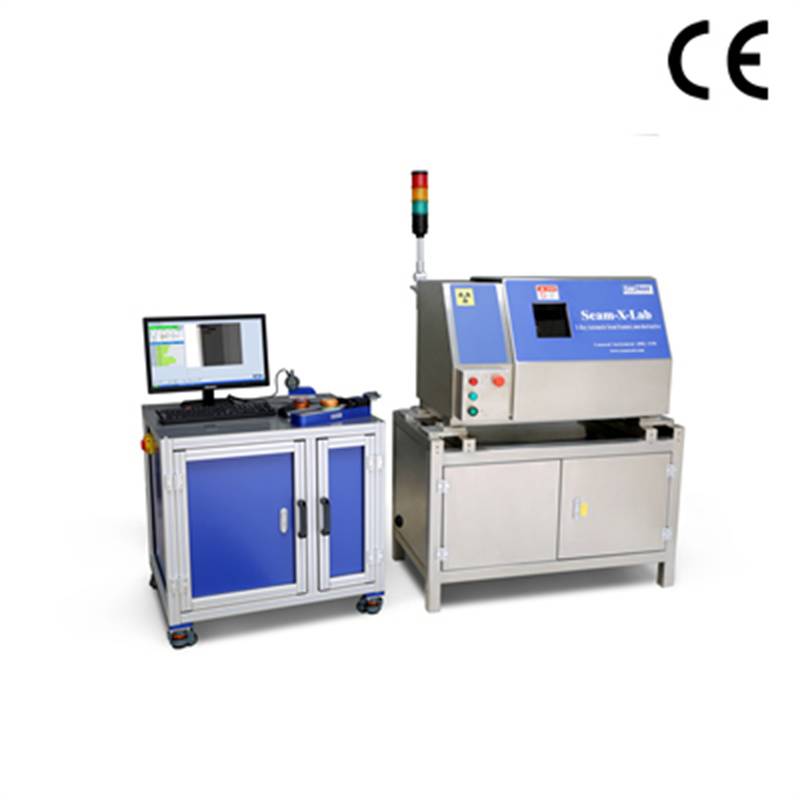

Seam-X®-Lab Automatic Seam Scanner adopts non-destructive measure method to measure the seam dimension, tightness(aluminum and tin composite can excluded), and the actual seam formation.

Measure Items: Seam Length, Body Hook, End Hook, Overlap, %Overlap, Seam Gap, %Body Hook Butting, %End Hook Butting, %Tightness, and the actual seam formation.
It is able to identify if the double seam is fake or not base on the actual seam formation
It’s applicable to measure cans of various materials. Combination of can body and the end can be following: (1) Aluminum & Aluminum; (2) Tin & Tin; (3) Tin & Aluminum.

Seam-X®-Lab can work together with the seam thickness gauge and countersink gauge, to make up a complete measure system for the double seam.

The CanNeed RPG-100 is able to scan profiles of seaming Rolls and Chucks (or other tooling - including carbide and ceramic tools) easily and quickly. The system can be used for acceptance testing for new seaming rolls or chucks, for quality assurance purposes and for stress analysis. Monitor tooling wear to replace rolls and chucks only when they need to be replaced

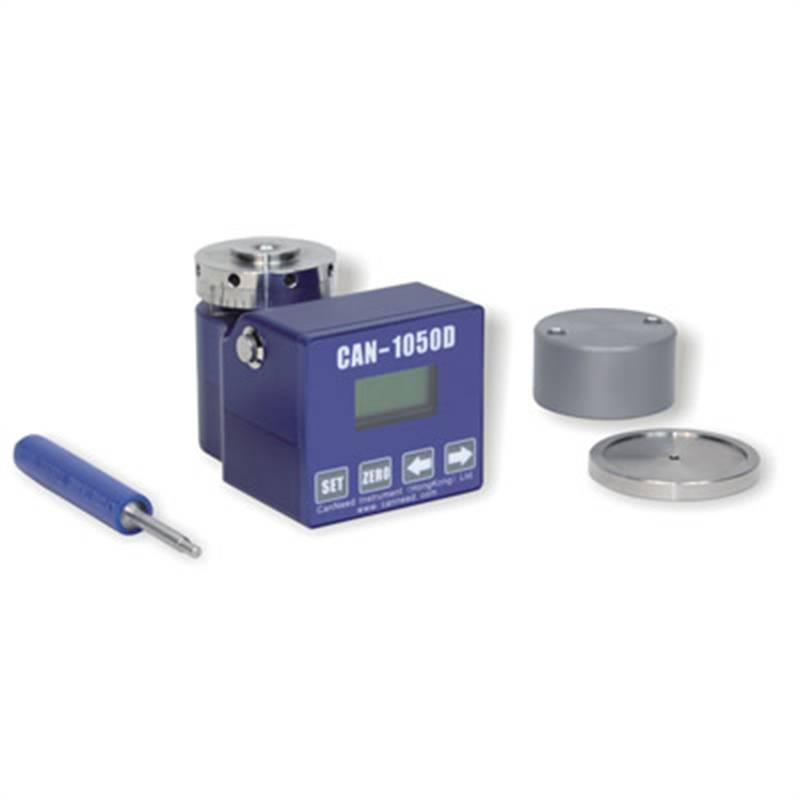

CanNeed-CAN-1050D Can Closing Force Gauge  is  for measuring  the  force of seaming head of  the seaming machine. By using CanNeed-CAN-1050d, producers can avoid product defects caused by over plating: sharp edge, seam breakage, body deformation, body hook overlength, over  large countersink and so on.  In  the meantime, producers can also avoid product defects caused by  too small pallet  lift force: slippery cans, too short hook and so on.

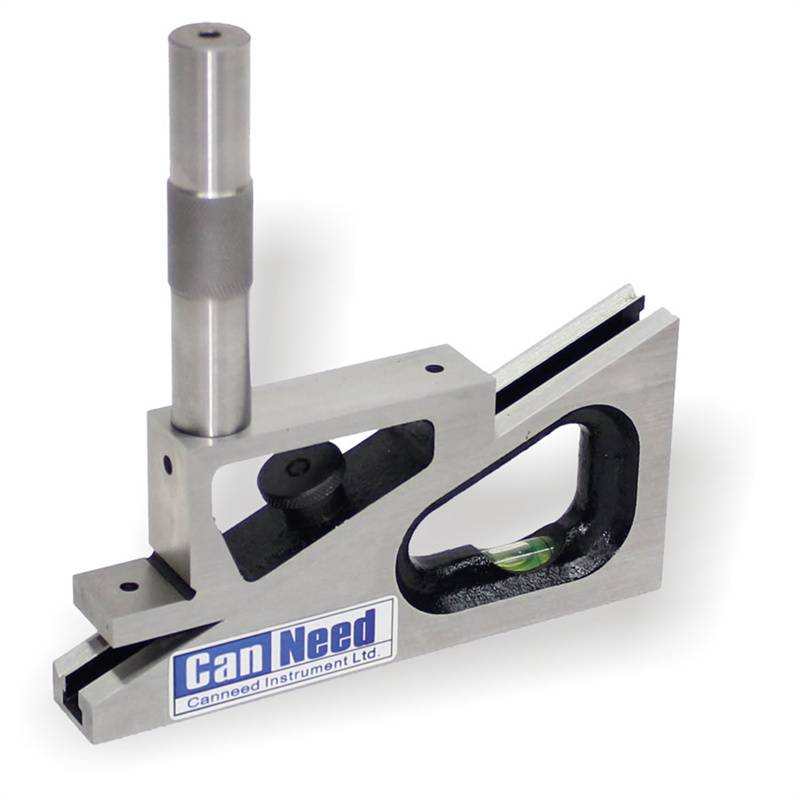

CanNeed-CAN-10774 The Pin Height Gauge  is commonly used  in  the  initial setup of  the seamer  to ensure double seaming
performance and air removal.

All working surfaces are hardened and accurately ground.

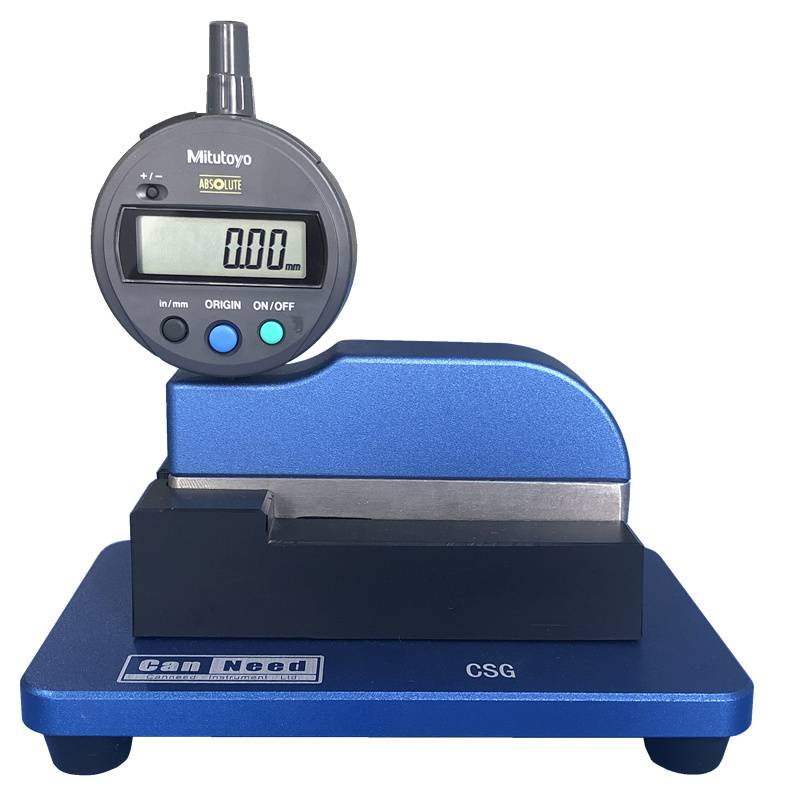

The CanNeed-CSG-200 Countersink Gauge (digital) is a Digital gauge for measuring Countersink depth parameters (the depth of beader of can). With the Mitutoyo 0.01mm Resolution Digital Indicator.

The gauge can be connected to a computer or SPC system via the adapter and cable, so that to avoid the manual recording and personal error. The gauge can also combine with Canneed Seam Monitors and import the measurement data into computer.
