CanNeed-SCDG Crown Gauge is used to test the external diameter of the crown caps to see if it is qualified.

Judgment method : Qualified limit corresponding holes should be passed the bottle caps, but caps can not pass through corresponding holes if they’re below the lower Limit Usage: Place this SCDG on the crown cap, to see if the hole can pass the crown cap or not.

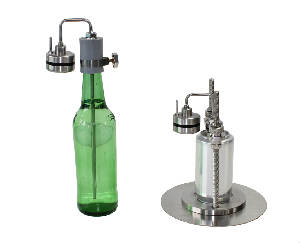

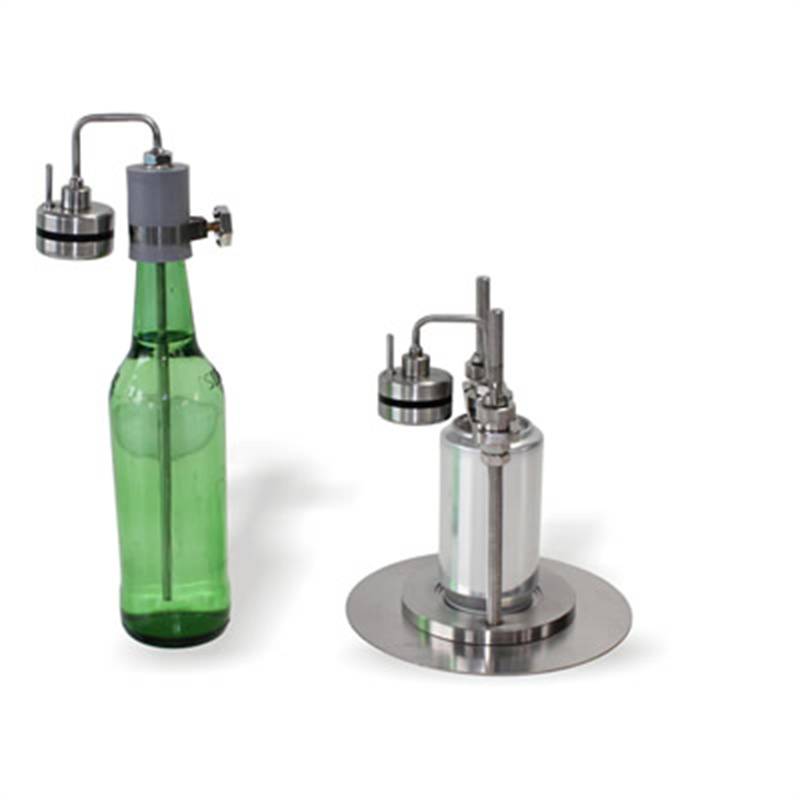

CanNeed-CAN-125B Pasteurization Temperature Monitor is used to measure the temperature in bottles or cans ,also water temperature during sterilizing process,caculate Pu value,and temperature curve can display on PC or print out with a printer.

CanNeed-CAN-125B PU Monitor record and store the temperature data of the whole sterilizing process,caculate the total PU value,king PU value(PU value that obtained when temperature is above 60℃), max.wine temperature,max.water temperature,runtime and the runtime of the two max.temperature.Users can define the sampling frequency of the monitoring.The powerful professional software CND-LogSee can print the report and curve,save data as excel files and transfter the data to those computers which have not installed the CND-LogSee software.

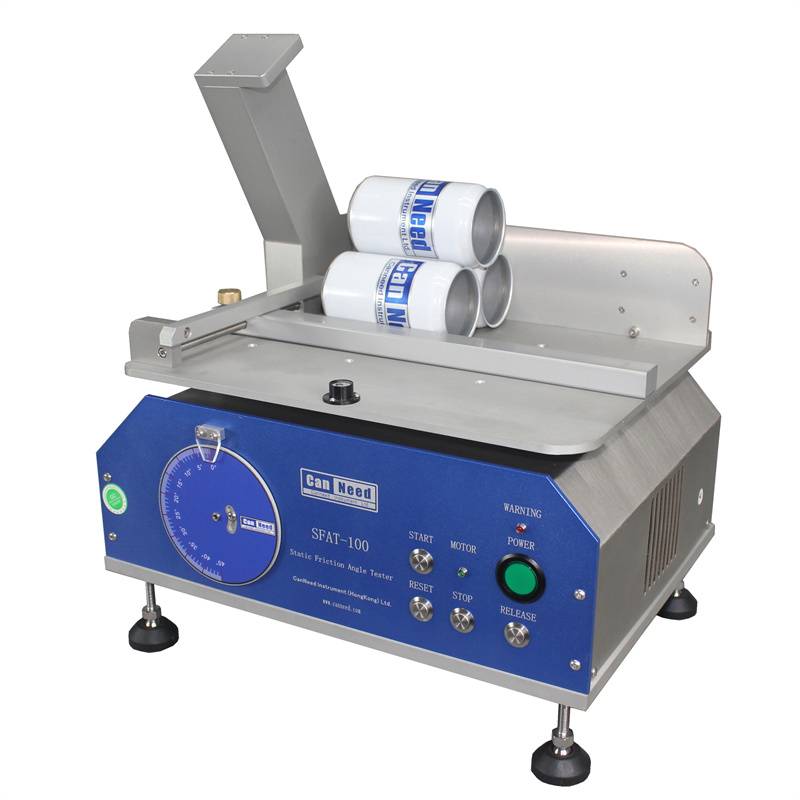

CanNeed-SFAT-100 Static Friction Angle Tester enables accurate measurement of container lubricity and coefficient of static friction.

Three containers are placed on the table in a pyramidal configuration. After the start button is pushed, an electric motor increases the angle of inclination of the table. The bottom two containers are constrained and do not move during testing. When the tilt angle becomes great enough to overcome the frictional forces between the containers, the top container begins to slide and will contact the trip bar, which stops the drive motor and simultaneously applies a brake to the inclined table. This prevents coasting and inadvertent measurements of erroneously high tilt angles.

Applicable for: glass bottles, plastic bottles, aluminum bottles and cans, etc.

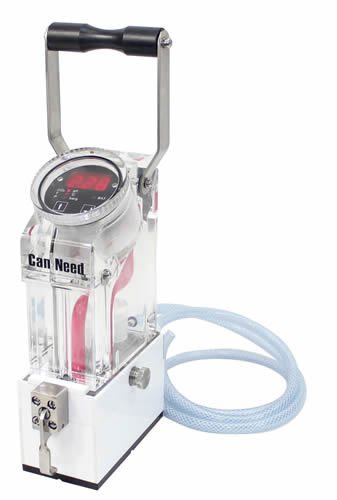

DGM-200 Portable Digital Beverage CO2 Calculator (CO2-Gehaltemeter)

The CanNeed “DGM-200 Portable Digital Beverage CO2 Meter” is common in breweries and soft drink industry to frequently measure the CO2 content during production. It enables a fast and accurate determination of the CO2 content in beer and carbonated drinks, either directly sampled within the production process (from e.g. tanks, pipes) of thereafter (from e.g. kegs).

The CanNeed “GMT-100 Portable Beverage CO2 Meter” is common in breweries and soft drink industry to frequently measure the CO2 content during production. It enables a fast and accurate determination of the CO2 content in beer and carbonated drinks, either directly sampled within the production process (from e.g. tanks, pipes) of thereafter (from e.g. kegs). It only takes 3 minutes for one test, repetitive and durable.

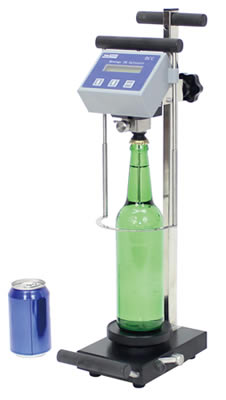

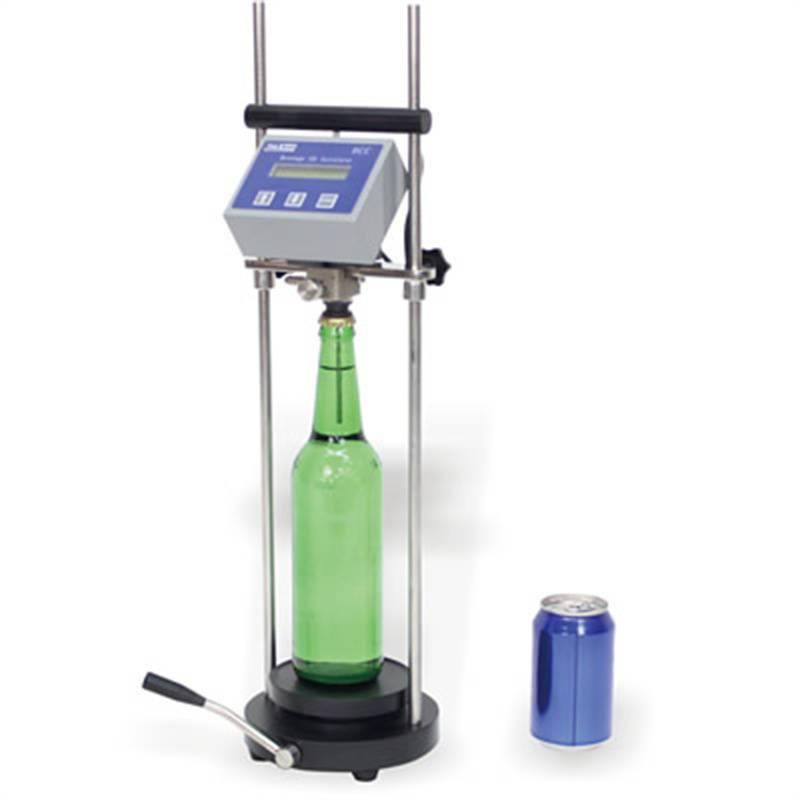

The CanNeed “BCC-200 Digital Beverage CO2 Calculator” is for measuring the CO2 content of the glass bottled, canned or PET bottled beer and other carbonated beverage. Simple operation, high accuracy and the CO2 content will be calculated automatically. After the sample was pierced, shake the device together with the sample, start the measurement, and then the instrument will measure the sample’s temperature and pressure and display the CO2 content. It is applicable for different sizes of glass bottles, cans and PET bottles.

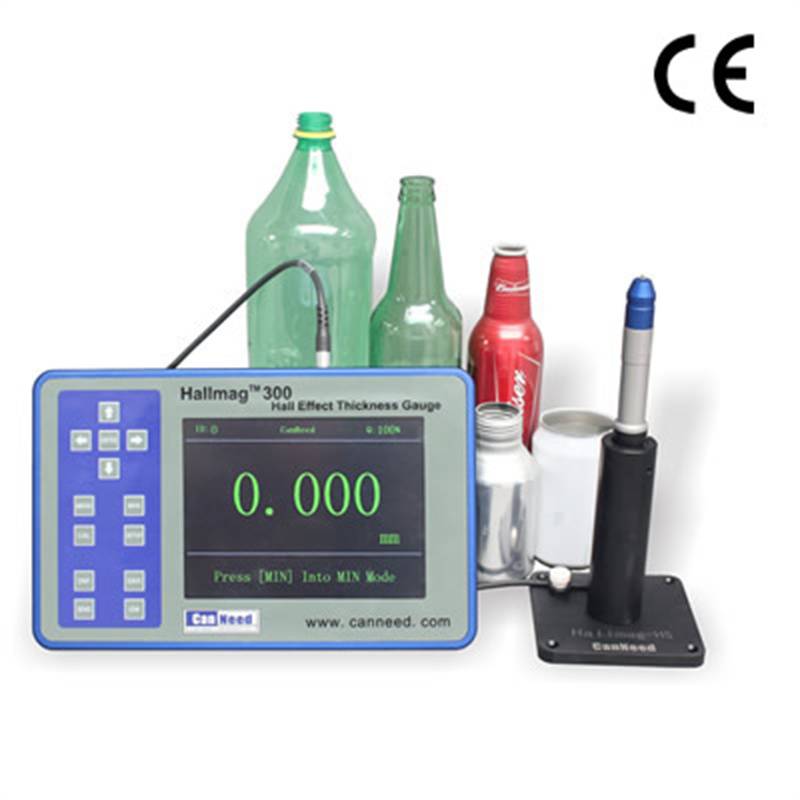

The “CanNeed-MBT-300 Hall Effect Thickness Gauge (Magnetic Bottle Thickness Gauge)” is a refined portable thickness gauge. It is used to measure the thickness of nonmagnetic material, such as plastic, glass, synthetics, aluminum and titanium, etc. The measurement accuracy is undistorted by the samples’ shapes.

CanNeed-MBT-300 is based on the theory of Hall Effect. For test, place the steel ball on one side of the sample and the probe on the other side. The Hall Effect sensor on the probe measures the distance from the probe tip to the steel ball. The calculator will display the real thickness readings.

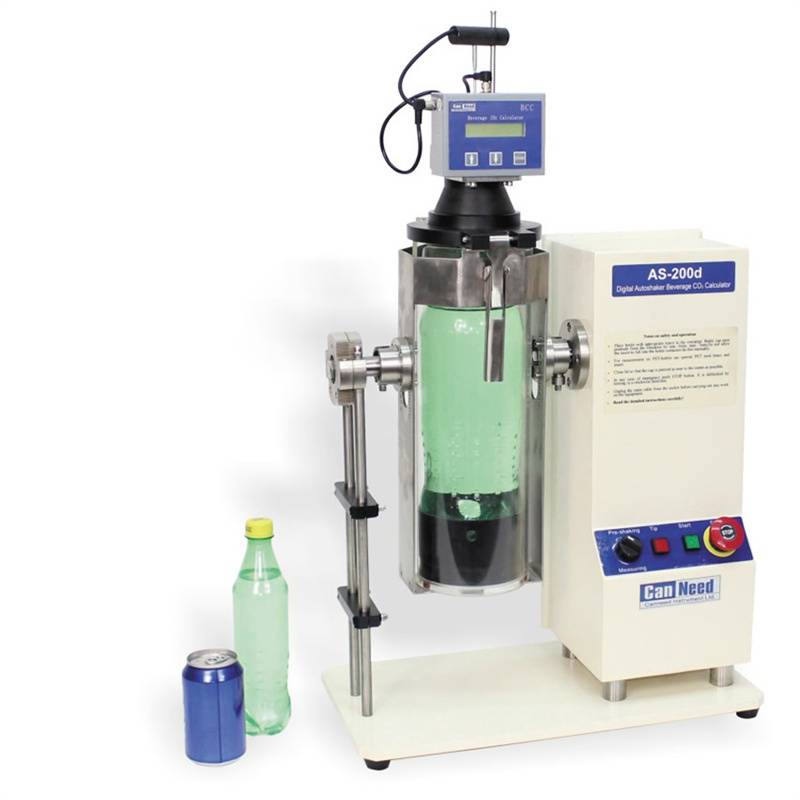

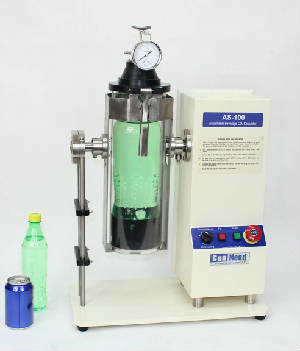

The “AS-100 AutoShaker Beverage CO2 Calculator” is a patented instrument which is for calculating the carbon dioxide content in the filled beverage in glass/PET bottles and cans. The simple operation which guarantees high reproducibility has led to its becoming a significant element of Quality Assurance in the drinks industry.

Attributes:
- Rotate by motor, avoid shaking by hand, guarantees high reproducibility
- With protection drum, more safety
- Measurement just need 3 minutes
- Simple operation
- Applicable to most common glass bottle PET bottle and cans.

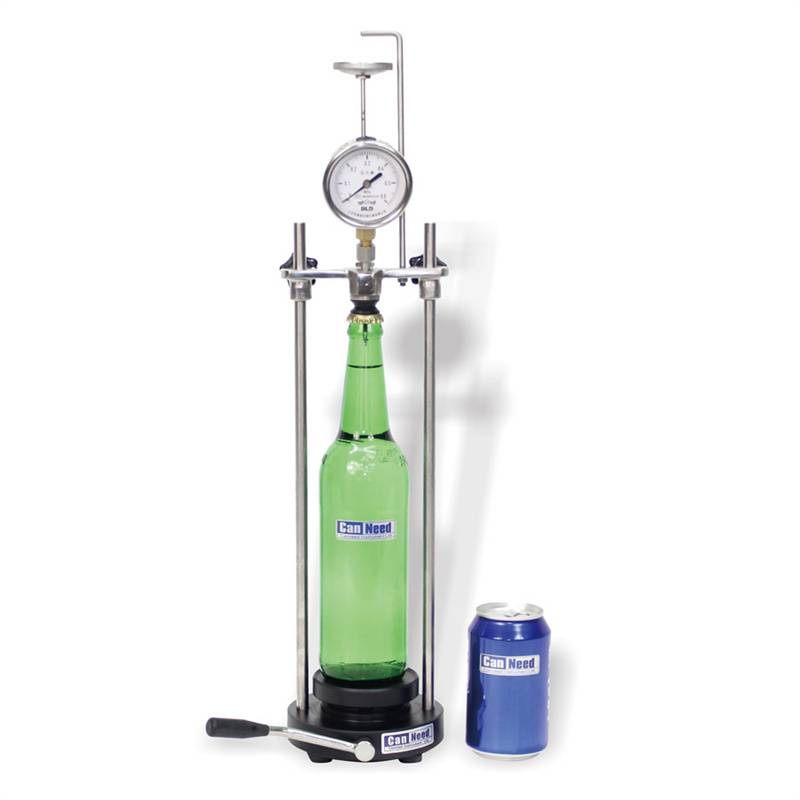

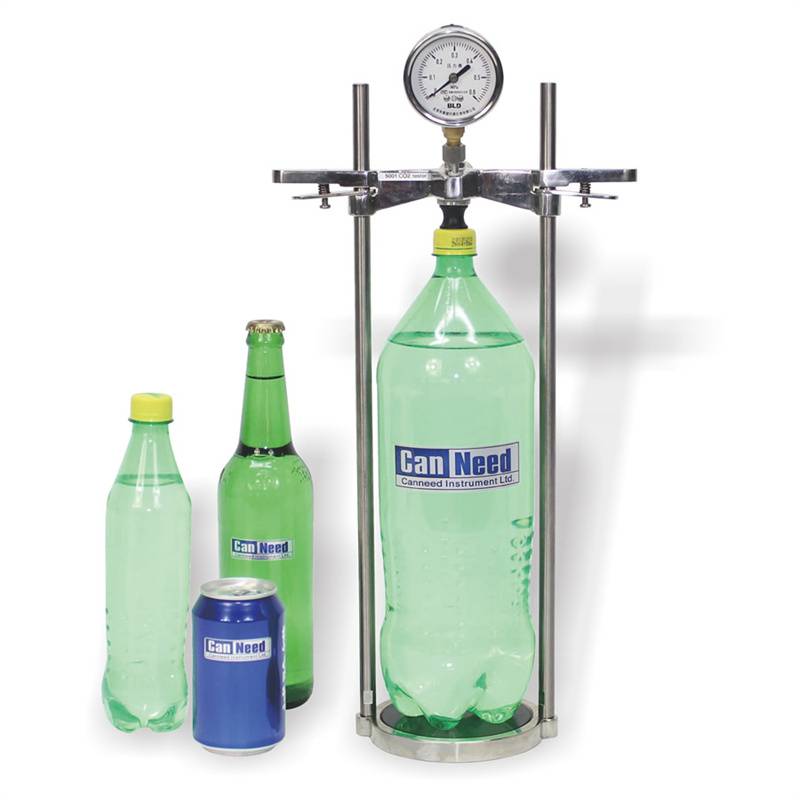

The CanNeed-CAN-5001, CAN-5002 CO2 tester and Pressure Tester are for measuring the CO2 content in carbonated beverages filled in glass and PET bottles or cans. It is designed according to ASBC Theory of American Society of Brewing Chemists, corresponding to “GB/T 4928 – 2001 Brewing Analysis Methods” and “GB/T 10792 – 1995 Carbonated Beverage Analysis Methods”. Therefore, the machine is widely used by Quality and Technical Supervision Bureau and beverage enterprises.

It is applicable to the bottles or cans with different sizes. After the sample is pierced, the pressure is read on the pressure gauge as soon as the equilibrium pressure is achieved. The CO2 content is determined by means of the CO2 slide rule or temperature/pressure relationship charts.

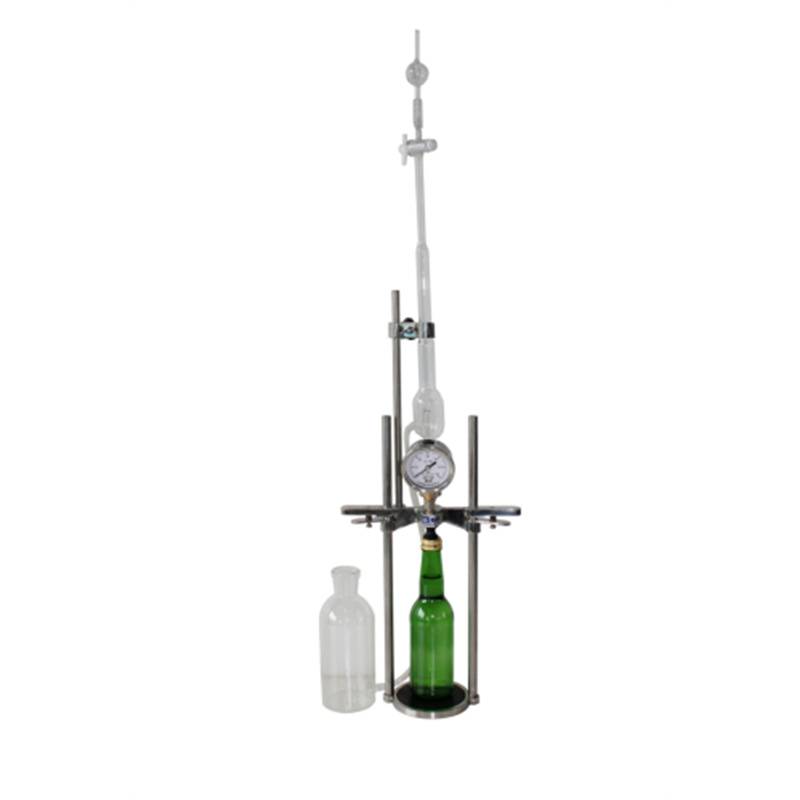

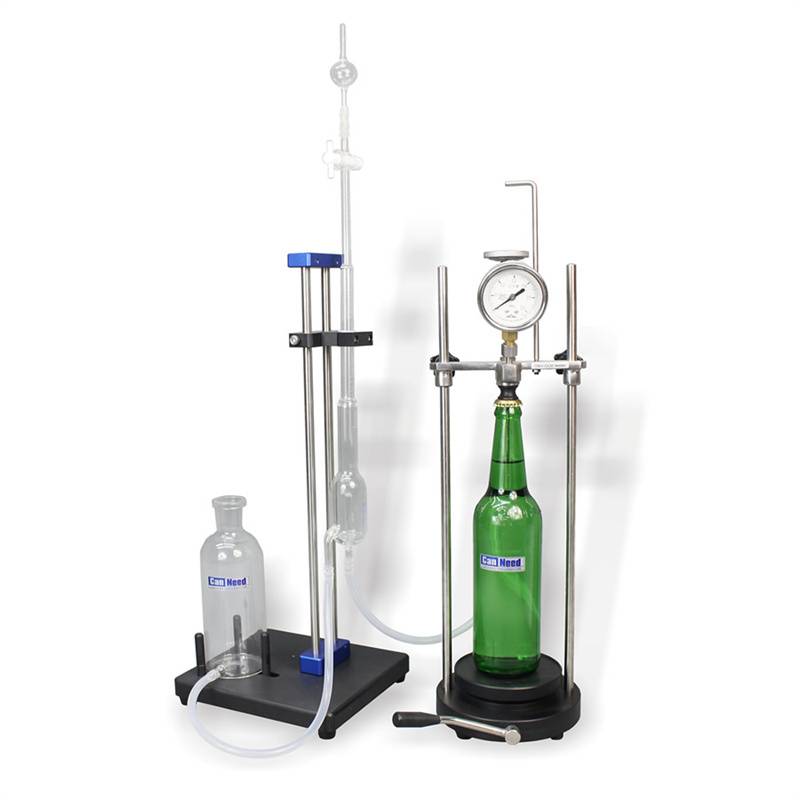

The “CAN-5000 Air Meter “ is for measuring the total air content in carbonated beverages filled in glass and PET bottles and cans. And the air content in the headspace volume. This instrument is recommended for testing air content where greater speed and accuracy is required. It is applicable to various size of bottles and cans.
