Product Classification : Can Making----3-Piece Can/Spray Can
|
|

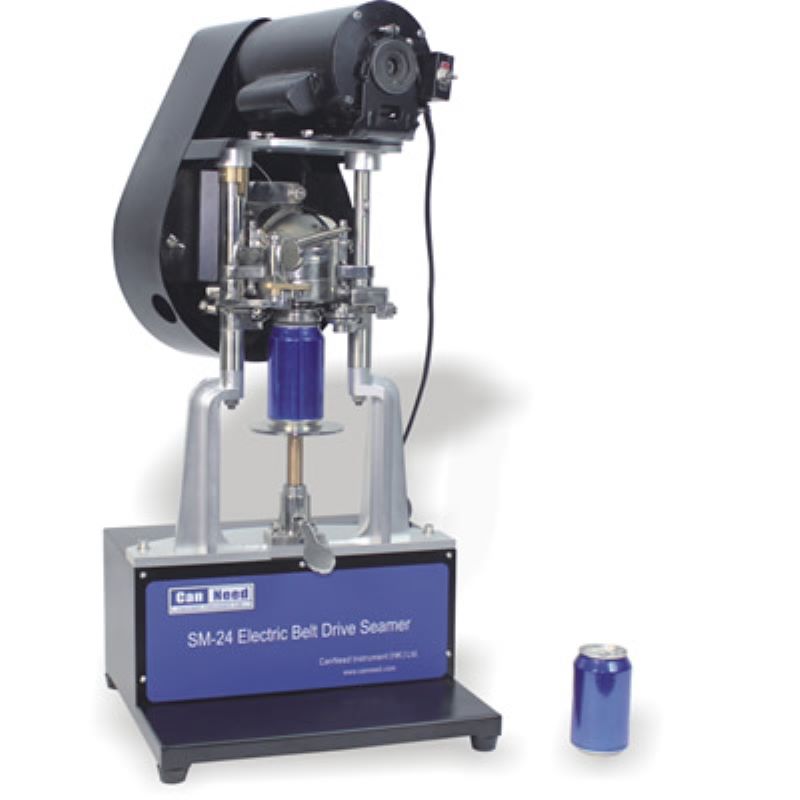

CanNeed-SM-24 Electric Belt Drive Seamer
|
The Canneed “SM- 24 Electric Belt Drive Seamer” (Desktop model) enables the users to do more lab tests. Such as, adjusting some technique, enhancing the products quality, test the empty cans and free ends, to insert a temperature logger into a can before running a temperature monitoring.
It is much more convenient for those lab tests, fast, easy and high efficiency.
|
|
|
CanNeed-AMG-300 Aerosol Measuring Gauge
|
|
The CanNeed AMG-300 Aerosol Measuring Gauge is a Convenient Gauge for Aerosol Cans, it can measures 6 characteristics in 1 compact Gauge. measures the following characteristics:
1) Can Height over all (E)
2) Can Height over the seams (D)
3) Can height between the seams (F)
4) Top Outside Diameter (K),
5) Top seam Outside Diameter
6) Bottom seam Outside Diameter
The CanNeed AMG-300 saves valuable time and table space. Combine five essential aerosol can gauges into one convenient measurement Gauge.
|
|
|

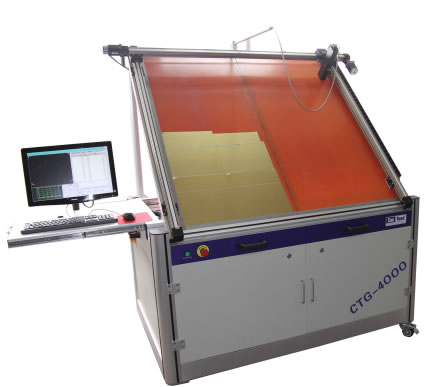

CTG-4000 Wet Film and Coating Thickness
|
Application:
1. Test wet film and coating thickness,both save time and improve quality
2. Test both single layer and multilayer coating
3. Adopt non-contact optical technique,suitable for research,quality control and on-line control.
4. Can be used in Solar energe,optical coating,foods package,metal package field.Improve the quality by appearance,adhesion,resistant to corrosion and fricton,as well as scratch.
|
|
|

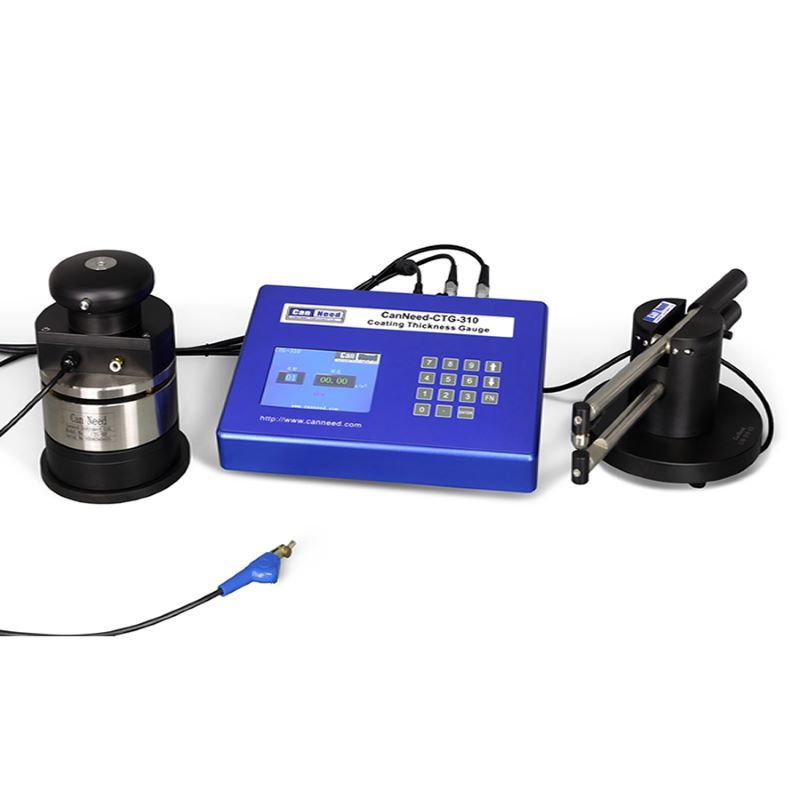

CanNeed-CTG-310 Coating Thickness Gauge
|
|
CanNeed-CTG-310 Coating Thickness Gauge is used to test the coating thickness(coating weight per unit area, g/m2). When equipped with “Hover Probe”, it can measure the coating thickness of plate sheets. When equipped with can body testing clamp, it can test the coating thickness of can body.
Use standard coating plate (sample with known weight, g/m2) calibration equipment to test different
types of coatings. Test result and coating type number will display on the screen and the data will be output to PC with RS232.
|
|
|

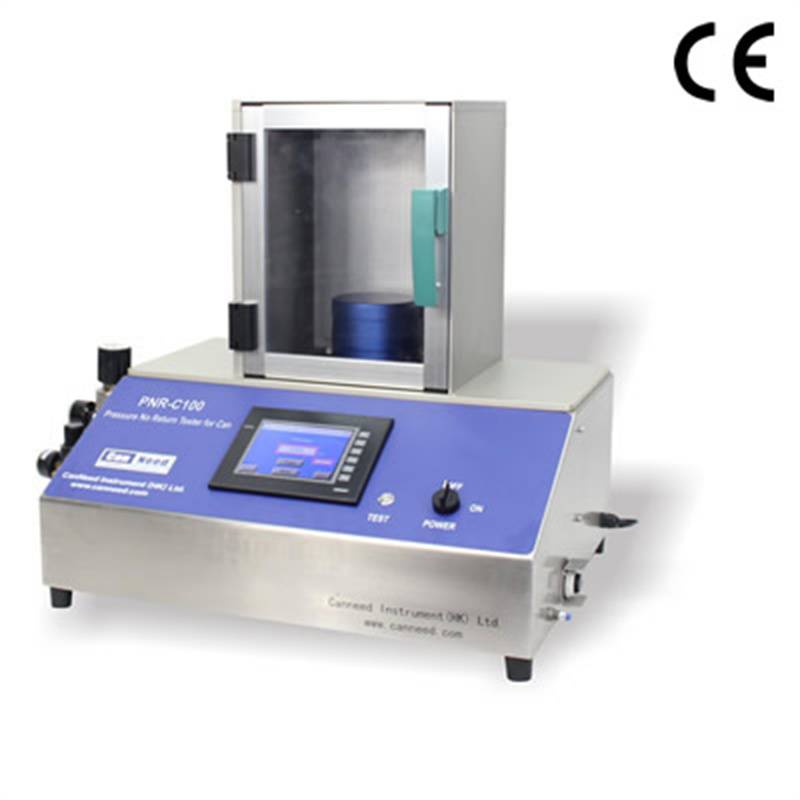

PNR-C100 Pressure No Return Tester for Cans on Bottom
|
|
The CanNeed "PNR-C100 Pressure No Return Tester for Cans on Bottom" can measure the PNR value (Plastic Deformation) and the buckle value of the can bottom. During the whole pressurization process, use the micrometer to track and measure the deformation amount, generate the curve through the software and analyze the correlation between pressure and deformation amount of the can bottom.
|
|
|
STG-200-D Seam Thickness Gauge (Digital)
|
|
The CanNeed “STG-200-D Seam thickness gauge (Digital)” is used to measure the Seam thickness of cans. With measure angle compensation. The center measure point can be adjusted. Cans can be auto-positioned in the center easily during measuring. With the Mitutoyo 0.01mm Resolution Digital Indicator.
|
|
|

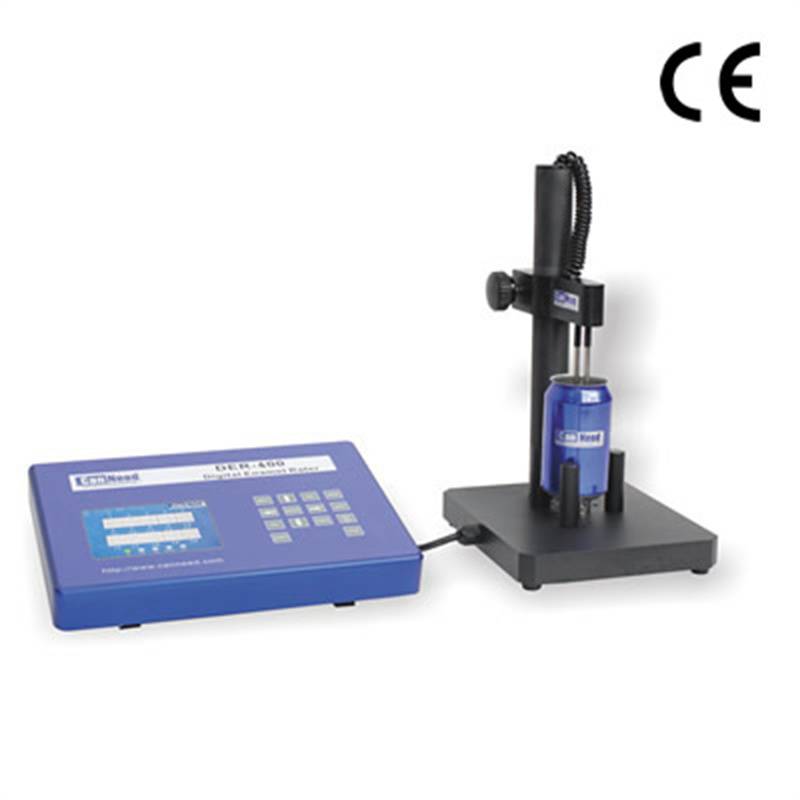

CanNeed-DER-400 Digital Enamel Rater
|
|
CanNeed-DER-400 Digital Enamel Rater is able to detect the exposed metal position more easily compare to the former models. The reformative electronic design makes it more sensitive, reliable and accurate. The anticorrosion characteristic of the enhanced can body support is ensured its durability. The film coated buttons are more durable and with better corrosion resistance.
CanNeed-DER-400 is the industry standard. The new CanNeed Enamel Rater DER-400 instrument test the coverage of the enamel coating inside food and beverage cans, aerosol-cans and also different kinds of ends. It displays an index of the amount of metal exposed by incomplete enamel coverage on a clear, easily read digital LED.
|
|
|

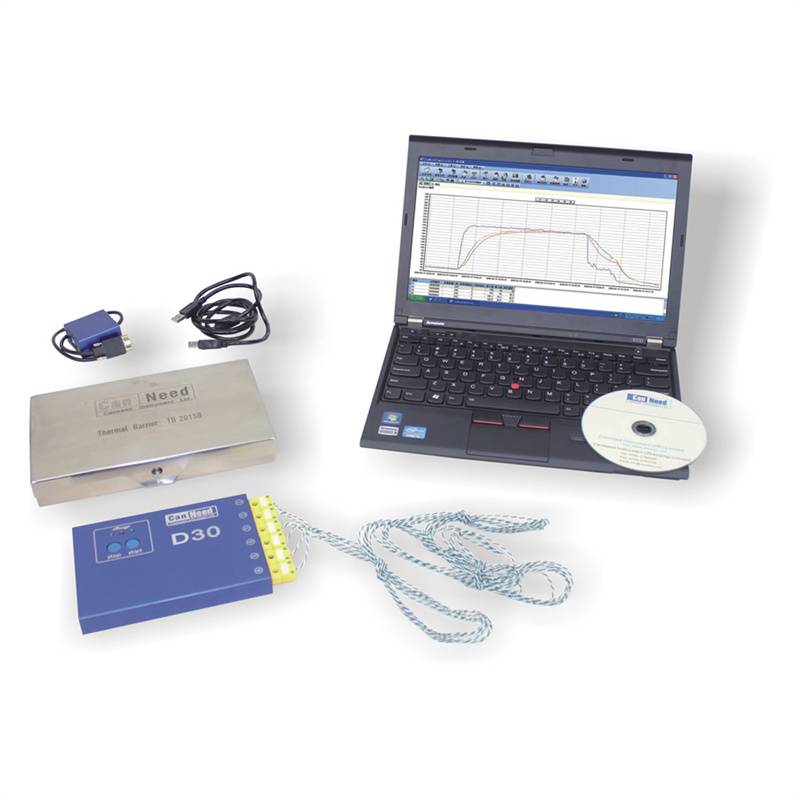

CanNeed-CND-TRK-300 Oven Temperature Tracker
|
|
The “CanNeed-TRK-300 Oven Temperature Tracker” is a professional oven temperature curve inspection system for the coating industry, it is including the data logger, heat insulation case, software (Chinese / English) and thermocouples.
"CanNeed-TRK-300 Oven Temperature Tracker” is use to pass through the oven with the solidifying products, and record down the real temperature during the process. The logger is in the centre of the system. Heat insulation case is for protecting the logger from over heat by the oven. When passing through the oven, the CanNeed-TRK-300 Oven Temperature Tracker will record down the real time temperature of the solidifying products through the 5 thermocouples which were connected to the products, and one thermocouple is for recording the air temperature of the oven. After the recording process was finished, use the CND_TRK Software to analyze the temperature data and generate the detail reports.
|
|
|

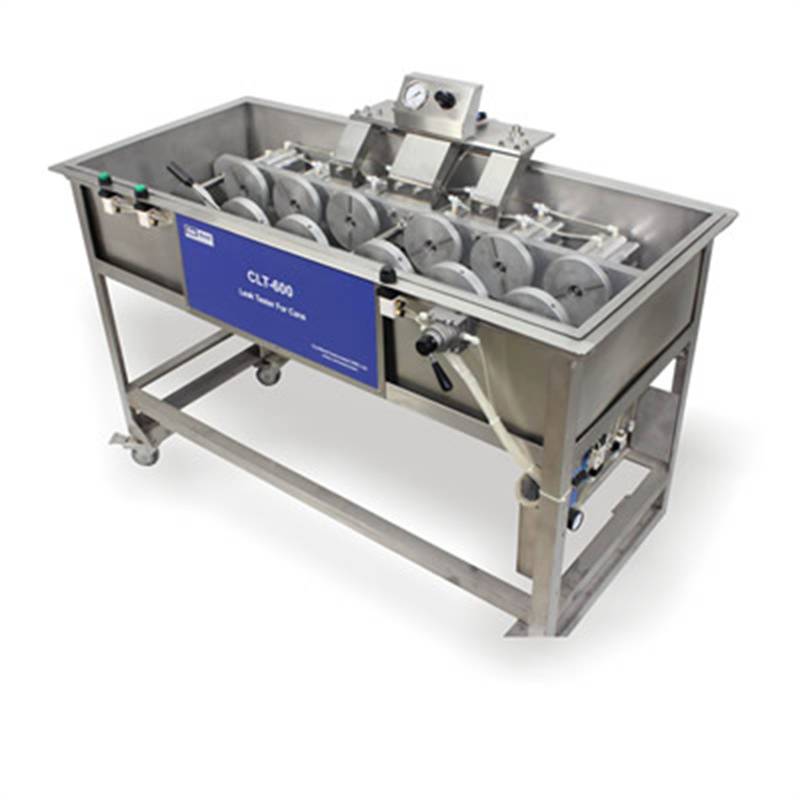

CanNeed-CLT-600 Leak Tester for can
|
|
CanNeed-CLT-600 Leak Tester for can is used for checking the leakage of 3-pc can XE "3-piece can" s in a water bath. It can test six cans in each test.
|
|
|

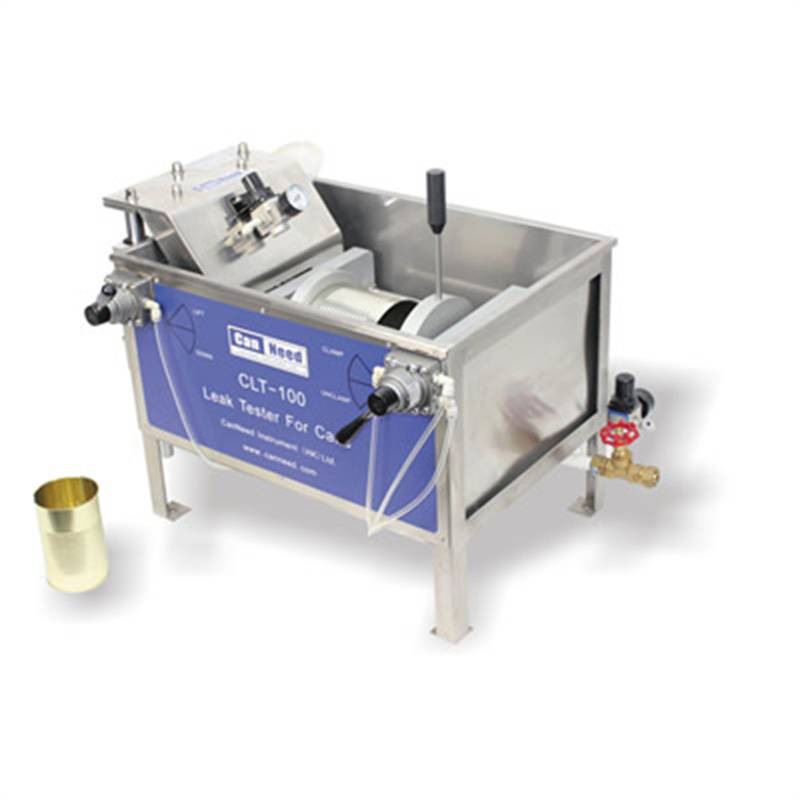

CanNeed-CLT-100 Leak Tester for can
|
|
The “CanNeed-CLT-100 Leak Tester for can “ is used for checking the leakage of 3-piece cans in a water bath. It can test one can in each test.
The test procedure is performed semi-automatically and the CanNeed-CLT-100 is suitable for different sizes of round 3-piece cans.
Testing method: Place the sample can to the platen, the can will be fixed by the magnet disc plate, clampthe can to seal the top, then submerge the can into water and apply pressure to the can.
Observer the can body to see whether there are bubbles come out, if bubbles come out from the can body constantly, that means the sample can leaks. During the testing, operator is able to turn the sample over for easy observing the can top, can bottom, can body and welding line.
|
|
|

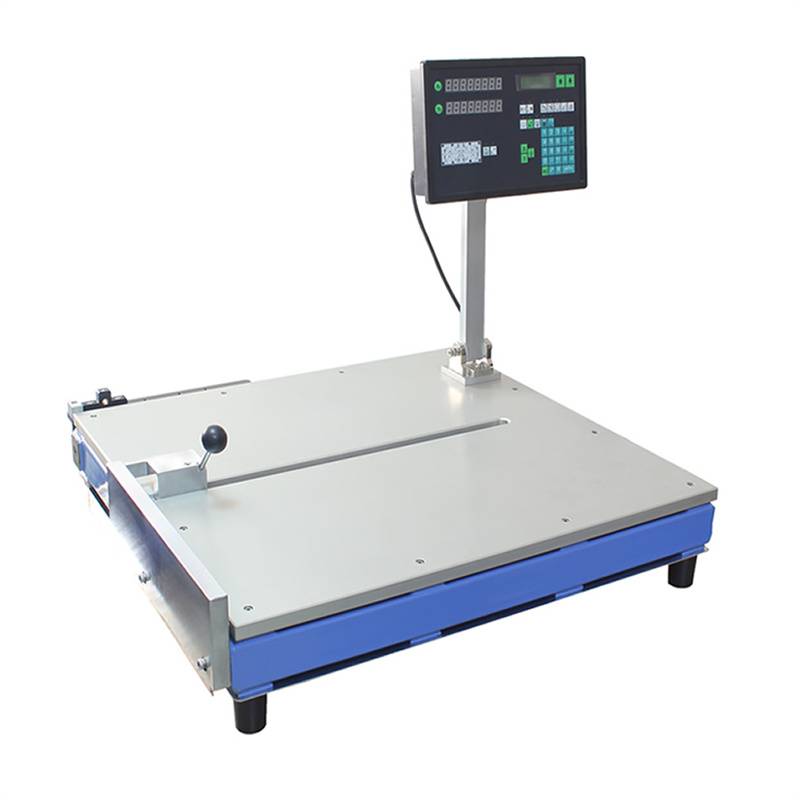

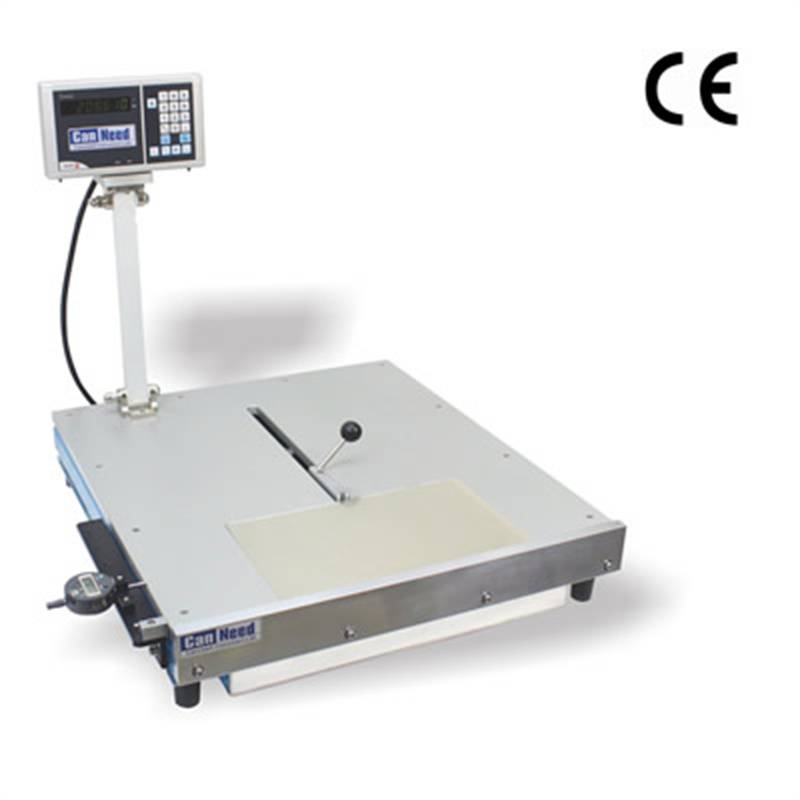

ZM-370-D, ZM-570-D, ZM-920-D, ZM-1220-D Digital Body Blank Gauge
|
|
The “Digital Body Blank Gauge CanNeed-ZM-370-D,CanNeed-ZM-570-D,CanNeed-ZM-920-D” are made for the quality control of can body blanks.
|
|
|
CDG-100 Curl Diameter Gauge
|
The CanNeed "CDG-100 Curl Diameter Gauge" is a Digital gauges for measuring Curl Diameter of ends. Equipped with calibration piece. With the Mitutoyo 0.01mm Resolution Digital Indicator.
If purchased the adapter and cable, the gauge can be connected to a computer or SPC system for data collection.
|
|
|
WOM 4C Welding Overlap Monitor
|
|
The CanNeed “WOM 3A Welding Overlap Monitor” is used to measure the length and thickness of side seam welding overlap. It’s equipped with the most advanced optical system and Golden LensTM, which ensured the high image definition.
|
|
|
CanNeed-WWT-100 Welding Line Outstretched Tester
|
|
The “CanNeed-WWT-100 Welding line outstretched tester” is used to test the flange point welding integrality of 3-pieces cans.
How to test: Place a sample can body on the corresponding plug, handle piston valve. And the cylinder drives the board to press the can body. Stop when the flange os curled about 10 mm. Then loosen the piston valve, take the can body out to check if there is any breaches. Mark down the result.
|
|
|
CanNeed-WWP-100 Welding Seam Ball Press Tester
|
|
The “CanNeed-WWP-100 Welding Seam Ball Press Tester” is used to test the welding seam quality, including the welding seam strength and continuity of 3-piece cans.
Testing Method: place the empty cans to the clamp, align the welding seam with the ball, and then tightly press the can. The cylinder pushes the ball to slide along the welding seam. Next, take the can out to check if there are any breaches.
|
|
|
CanNeed-BDD-200A Bead Depth Gauge
|
CanNeed-BDD-200A Bead Depth Gauge is for measuring the bead depth of the can body, with the special designed end measuring holder, end bead depth can also be measured. The fine designed can holder, which ensures the cans keep still during the measuring, and the results are more accuracy.
|
|
|
CanNeed-DHG-300 Digital Can Height Gauge
|
|
The CanNeed "DHG-300 Digital Can Height Gauge" can be used to measure the height of beverage, food, and aerosol cans. The gauges can be connected to a computer or SPC system via the adapter and cable.
|
|
|
FWG-100-D, FWG-200-D, FWG-300-D Flange Width Gauge
|
|
The “CanNeed-FWG-100-d, CanNeed-FWG-200-d, CanNeed-FWG-300-d Flange Width Gauge (digital)” is used to measure the flange width of empty cans. Reliable design, invariableness measuring pressure and measuring angle which enable the inexperienced operators can also perform the measurement accurately. Auto aligning the center of can body, applicable for different types of cans.
If purchased the adapter and cable, the gauges can be connected to a computer or SPC system for data collection, avoiding the manual recording and personal error.
|
|
|
CanNeed-AXL-10000 Axial Load Tester
|
|
The CanNeed “AXL-10000 Axial Load Tester” measures the axial force resistance of food cans in Newton. The can is placed in a support and gradually forced upwards against the pressure plate. The space between the support and the top plate can be altered with spacers. The can crashes after the peak force has been applied that the can is capable of resisting. The maximum value can now be read in the display
|
|
|
CanNeed-PTG-100 Digital Plate Thickness Gauge
|
This unit serves for quickly checking the thickness of plates. The sample is presented vertically in this version. Equipped with the Mitutoyo 0.001mm Resolution Digital Indicator.
If purchased the adapter and cable, the gauge can be connected to a computer or SPC system for data collection.
|
|
|
PDG-D Plane depth Gauge (Digital)
|
|
The CanNeed “PDG-D Plane Depth Gauge for Canned Food and Beverage” is used to measure the plane depth of canned food and beverage. It can monitor the inner pressure or vacuum of the cans without piercing the cans.
|
|
"If you can not find the product you need, please contact us or leave a message."
|
|
