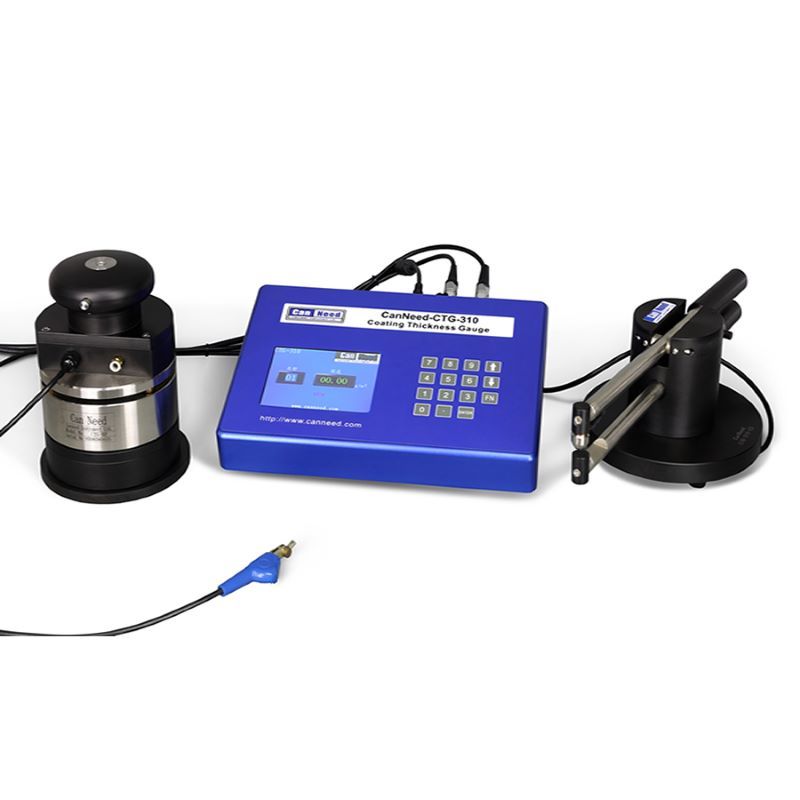

CanNeed-CTG-310 Coating Thickness Gauge is used to test the coating thickness(coating weight per unit area, g/m2). When equipped with “Hover Probe”, it can measure the coating thickness of plate sheets. When equipped with can body testing clamp, it can test the coating thickness of can body.

Use standard coating plate (sample with known weight, g/m2) calibration equipment to test different

types of coatings. Test result and coating type number will display on the screen and the data will be output to PC with RS232.

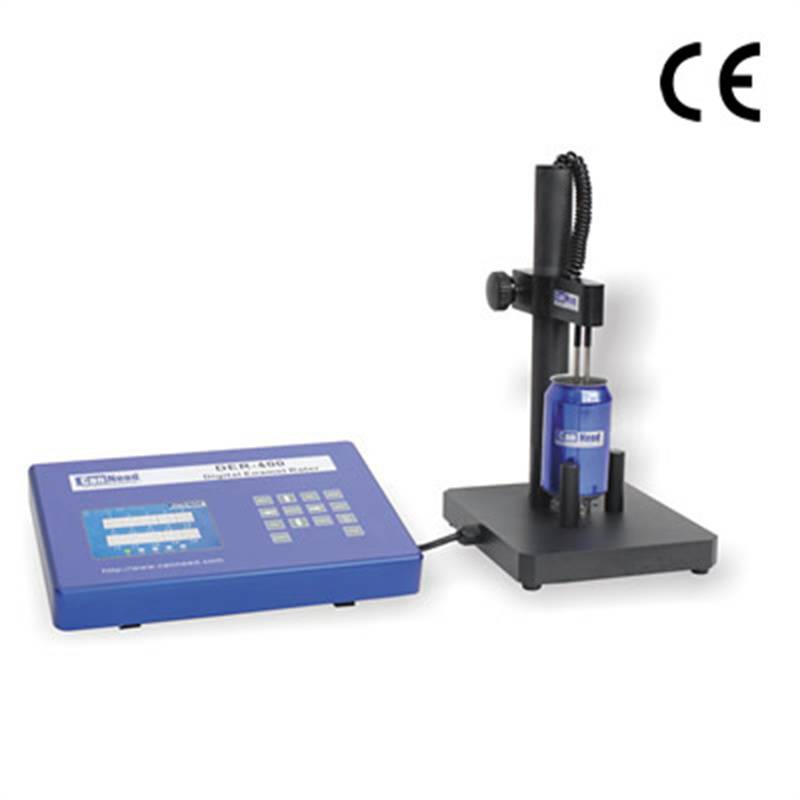

CanNeed-DER-400 Digital Enamel Rater is able to detect the exposed metal position more easily compare to the former models. The reformative electronic design makes it more sensitive, reliable and accurate. The anticorrosion characteristic of the enhanced can body support is ensured its durability. The film coated buttons are more durable and with better corrosion resistance.

CanNeed-DER-400 is the industry standard. The new CanNeed Enamel Rater DER-400 instrument test the coverage of the enamel coating inside food and beverage cans, aerosol-cans and also different kinds of ends. It displays an index of the amount of metal exposed by incomplete enamel coverage on a clear, easily read digital LED.

Seam-X®-Lab Automatic Seam Scanner adopts non-destructive measure method to measure the seam dimension, tightness(aluminum and tin composite can excluded), and the actual seam formation.

Measure Items: Seam Length, Body Hook, End Hook, Overlap, %Overlap, Seam Gap, %Body Hook Butting, %End Hook Butting, %Tightness, and the actual seam formation.
It is able to identify if the double seam is fake or not base on the actual seam formation
It’s applicable to measure cans of various materials. Combination of can body and the end can be following: (1) Aluminum & Aluminum; (2) Tin & Tin; (3) Tin & Aluminum.

Seam-X®-Lab can work together with the seam thickness gauge and countersink gauge, to make up a complete measure system for the double seam.

The RPG-100 is able to scan profiles of seaming Rolls and Chucks (or other tooling - including carbide and ceramic tools) easily and quickly. The system can be used for acceptance testing for new seaming rolls or chucks, for quality assurance purposes and for stress analysis. Monitor tooling wear to replace rolls and chucks only when they need to be replaced

The CanNeed-DER-4Digital Enamel Rater is able to detect the exposed metal position more easily compare to the former models. The reformative electronic design makes it more sensitive, reliable and accurate. The anticorrosion characteristic of the enhanced can body support is ensured its durability. The film coated buttons are more durable and with better corrosion resistance.

CanNeed-DER-4 is the industry standard. The new CanNeed-DER-4Enamel Rater instrument test the coverage of the enamel coating inside food and beverage cans, aerosol-cans and also different kinds of ends. It displays an index of the amount of metal exposed by incomplete enamel coverage on a clear, easily read digital LED.

The CanNeed "Seam Sight 3B Portable Full Automatic Seam Monitor" is so small and portable to work with a laptop. It was packed with the CSS-P2 into a suitcase, specially designed for those who always on business trip.
The "Seam Sight 3B Portable Full Automatic Seam Monitor" has adopted the advanced optical system and Golden LensTM video capture device, which interference-free of external light source and ensured the high image definition and the measurement accuracy. The Seam SightTM system is equipped with the new seam measuring software - Seam SightTM.

The CanNeed "PTT-300 Pop & Tear Tester" was developed for testing different kinds of easy open ends.
Applicable to 7 different types of ends: RP / SOT / EO / OVAL / FSE / SNAP and ALUFIX.
Adopted 5 different testing modes: RP / SOT / EO / OVAL and SNAP.
Operators just need to hook the ring and press "test" button, then the PTT-300 will do the test automatically. During the testing process, the microprocessor will monitor and record the max. Pop and Tear force. With different sizes of the clamps, it is able to test different sizes of ends.

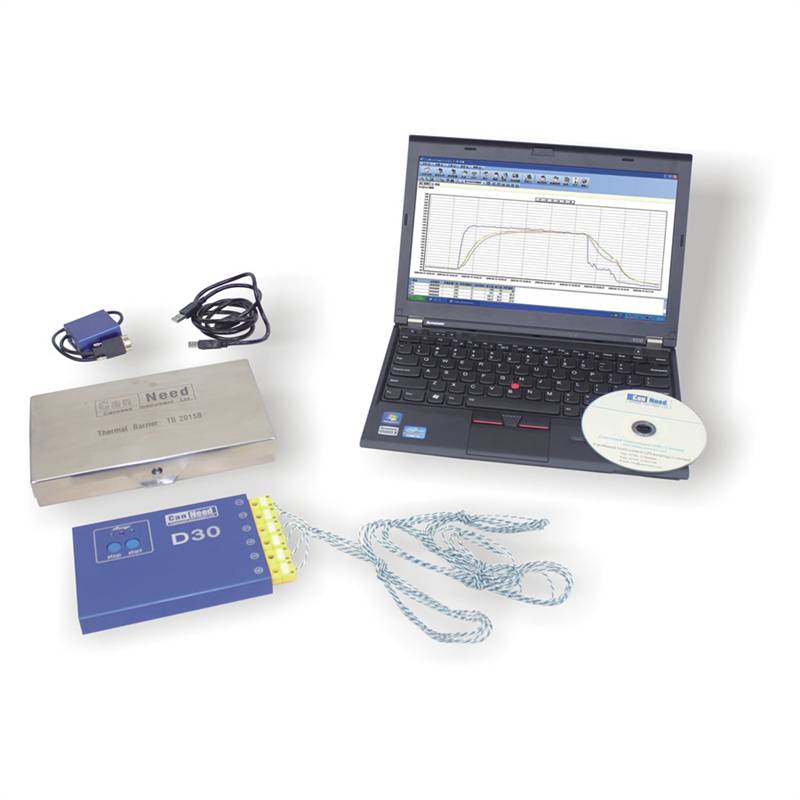

The “CanNeed-TRK-300 Oven Temperature Tracker” is a professional oven temperature curve inspection system for the coating industry, it is including the data logger, heat insulation case, software (Chinese / English) and thermocouples.

"CanNeed-TRK-300 Oven Temperature Tracker” is use to pass through the oven with the solidifying products, and record down the real temperature during the process. The logger is in the centre of the system. Heat insulation case is for protecting the logger from over heat by the oven. When passing through the oven, the CanNeed-TRK-300 Oven Temperature Tracker will record down the real time temperature of the solidifying products through the 5 thermocouples which were connected to the products, and one thermocouple is for recording the air temperature of the oven. After the recording process was finished, use the CND_TRK Software to analyze the temperature data and generate the detail reports.

CanNeed-CSS-300  Seam  saw is  a  special  seam  circular  saw  with  double  cut  for  double  seam inspections.

The CanNeed -CSS-300 has specially designed for the irregular shaped cans, like rectangle cans, oval cans, etc. Also aerosol-cans can also be sawed with  the saw. The nitrated blades achieve together with the speed of approx. 1.000 r/min. so that comes a very plain cut surface. The seam Image on the CanNeed series of Automatic Seam Monitors gets thereby very clear and improves measurement speed and reliability.

The "Canneed CBT-200 Buckle Tester Bottom for Cans" determines the exact pressure at which the can bottom begins to buckle respectively the dome reverses.
The empty flanged can or straight wall can is placed in the holder. After covering the device with a plexiglass hood pressure is applied. The can is sealed with a rubber o-ring structure. Fast pressure increase up to 5 bar (programmable to just bellow the expected buckle value), from there the "speed of pressure increase" may be set within the device. The test is terminated as soon as the can buckles. The maximum pressure value is shown in the display.

The CanNeed RPG-100 is able to scan profiles of seaming Rolls and Chucks (or other tooling - including carbide and ceramic tools) easily and quickly. The system can be used for acceptance testing for new seaming rolls or chucks, for quality assurance purposes and for stress analysis. Monitor tooling wear to replace rolls and chucks only when they need to be replaced

The CanNeed  STG-200-D Seam thickness gauge can be used to measure Seam thickness.
With measure angle compensation. The center mesure point can be adjusted.
Cans can be auto- positoned in the center easily during measuring .
With the Mitutoyo 0.01mm Resolution Digital Indicator.
If you purchase the adapter and cable, the instrument can communicate with a computer.

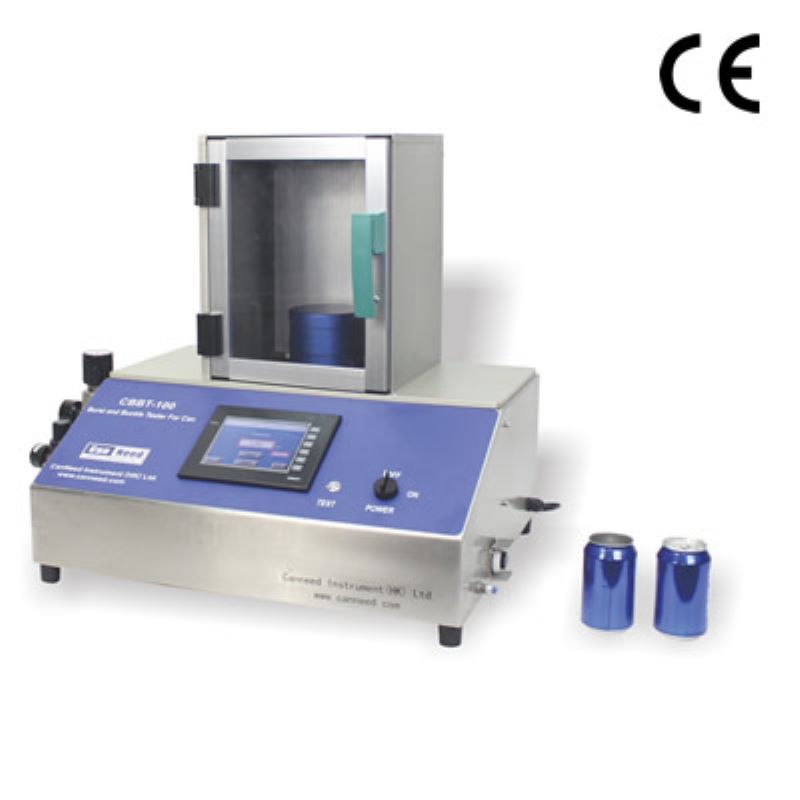

In order to control the cost and quality,it is necessary for 2 piece can manufacturers to buy an equipment which can accurately test the compression strength and burst strength.
The CanNeed CBBT-100 is used to test the pressures values of 2 piece cans:buckle value,burst value.Record the 2 values automatically.
It can test different diamter and height of cans with different clamps.

CanNeed-CAN-1050D Can Closing Force Gauge  is  for measuring  the  force of seaming head of  the seaming machine. By using CanNeed-CAN-1050d, producers can avoid product defects caused by over plating: sharp edge, seam breakage, body deformation, body hook overlength, over  large countersink and so on.  In  the meantime, producers can also avoid product defects caused by  too small pallet  lift force: slippery cans, too short hook and so on.

The CanNeed "EMD-400 End Measure Desk" was developed according to the long-term practical experience, it can be used next to the production line or in the laboratory.
The EMD-400 measures the End Curl Height, Curl Diameter, End Curl Width and Countersink. It is equipped with Mitutoyo digital indicator. If purchased the adapter and cable, the gauge can be connected to a computer or SPC system for data collection.
