CanNeed-CSG-A Countersink Gauge (digital) is a digital gauge for measuring countersink depth parameters of aerosol cans. Equipped with Zero-Adjusting calibration platform and protection piece.

If purchased the adapter and cable, the gauge can be connected to a computer or SPC system for data collection, avoiding that the persons record the data. It can also used together with the seam sight monitor and output the measuring data to the PC.

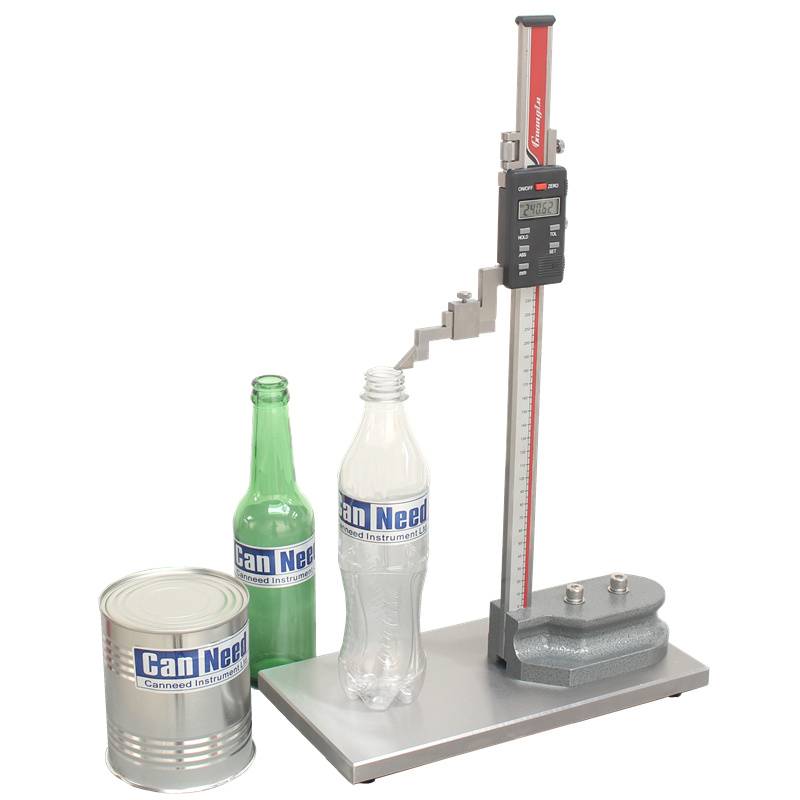

The "DHG-300 Digital Can Height Gauge" can be used to measure the height of beverage, food, and aerosol cans. The gauges can be connected to a computer or SPC system via the adapter and cable.

The CanNeed "Seam Sight 3B Portable Full Automatic Seam Monitor" is so small and portable to work with a laptop. It was packed with the CSS-P2 into a suitcase, specially designed for those who always on business trip.

CanNeed-CTG-310 Coating Thickness Gauge is used to test the coating thickness(coating weight per unit area, g/m2). When equipped with “Hover Probe”, it can measure the coating thickness of plate sheets. When equipped with can body testing clamp, it can test the coating thickness of can body.

Use standard coating plate (sample with known weight, g/m2) calibration equipment to test different

types of coatings. Test result and coating type number will display on the screen and the data will be output to PC with RS232.

The CanNeed “STG-200-D Seam thickness gauge (Digital)” is used to measure the Seam thickness of cans. With measure angle compensation. The center measure point can be adjusted. Cans can be auto-positioned in the center easily during measuring. With the Mitutoyo 0.01mm Resolution Digital Indicator.

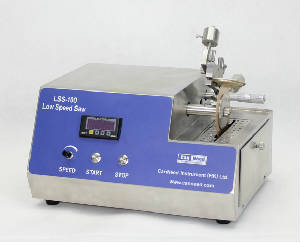

The "Canneed LSS-100 Low Speed Saw" is for cut the End rivet to observe and evaluate the rivet profile images of ends. It work with the "Canneed VRM 3A Video Rivet monitor".
The end is cut through the rivet by the LSS-100 Low Speed Saw, the rivet is positioned manually in front of the camera. The rivet profile images display on the display.

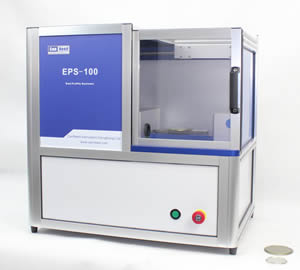

The CanNeed “EPS-100 End Profile System” is used to measure the end dimensions. It is with excellent
performance by adopting precise optics measuring technology, measuring the end dimensions precisely.The inaccuracy of end dimensions usually cause to such double seam defects as fault sealing, bearing
cover and false sealing and so on. It is hard to measure the profile dimensions of ends without EPS-100.

The Canneed SLG-D Seam length gauge(digital)  can be used to measure Seam length (Seam height).
Can is positoned by standing up during measuring.
With the Mitutoyo 0.01mm Resolution Digital Indicator.
If you purchase the adapter and cable,
the instrument can communicate with a computer.

CanNeed-DER-400 Digital Enamel Rater is able to detect the exposed metal position more easily compare to the former models. The reformative electronic design makes it more sensitive, reliable and accurate. The anticorrosion characteristic of the enhanced can body support is ensured its durability. The film coated buttons are more durable and with better corrosion resistance.

CanNeed-DER-400 is the industry standard. The new CanNeed Enamel Rater DER-400 instrument test the coverage of the enamel coating inside food and beverage cans, aerosol-cans and also different kinds of ends. It displays an index of the amount of metal exposed by incomplete enamel coverage on a clear, easily read digital LED.

CanNeed-CAN-10774 The Pin Height Gauge  is commonly used  in  the  initial setup of  the seamer  to ensure double seaming
performance and air removal.

All working surfaces are hardened and accurately ground.

The “CanNeed-TRK-300 Oven Temperature Tracker” is a professional oven temperature curve inspection system for the coating industry, it is including the data logger, heat insulation case, software (Chinese / English) and thermocouples.

"CanNeed-TRK-300 Oven Temperature Tracker” is use to pass through the oven with the solidifying products, and record down the real temperature during the process. The logger is in the centre of the system. Heat insulation case is for protecting the logger from over heat by the oven. When passing through the oven, the CanNeed-TRK-300 Oven Temperature Tracker will record down the real time temperature of the solidifying products through the 5 thermocouples which were connected to the products, and one thermocouple is for recording the air temperature of the oven. After the recording process was finished, use the CND_TRK Software to analyze the temperature data and generate the detail reports.

The “CanNeed-IDG-100 Internal Diameter of Can” is used to measure the internal diameter of small cans, such as 200, 202, 206, 209.
The “CanNeed-IDG-200 Internal Diameter of Can” is used to measure the internal diameter of larger cans. According to clients’ request, CanNeed-IDG-200 can be made to measure 2 to 3 different sizes of cans at the most at the same time. Note: The difference between the internal diameters of the two cans must be over 10mm.
When placing the order, please indicate the internal diameters of the cans, such as 202 neck-in cans, 206 neck-in cans.
With the Mitutoyo 0.01mm resolution digital indicator.
If purchased the adapter and cable, the gauge can be connected to a computer or SPC system for data collection.

The “CanNeed-CLT-100 Leak Tester for can “ is used for checking the leakage of 3-piece cans in a water bath. It can test one can in each test.

Testing method: Place the sample can to the platen, the can will be fixed by the magnet disc plate, clampthe can to seal the top, then submerge the can into water and apply pressure to the can.

CanNeed-CLT-600 Leak Tester for can is used for checking the leakage of 3-pc can XE "3-piece can" s in a water bath. It can test six cans in each test.
