Product Classification : Can Making
|
|

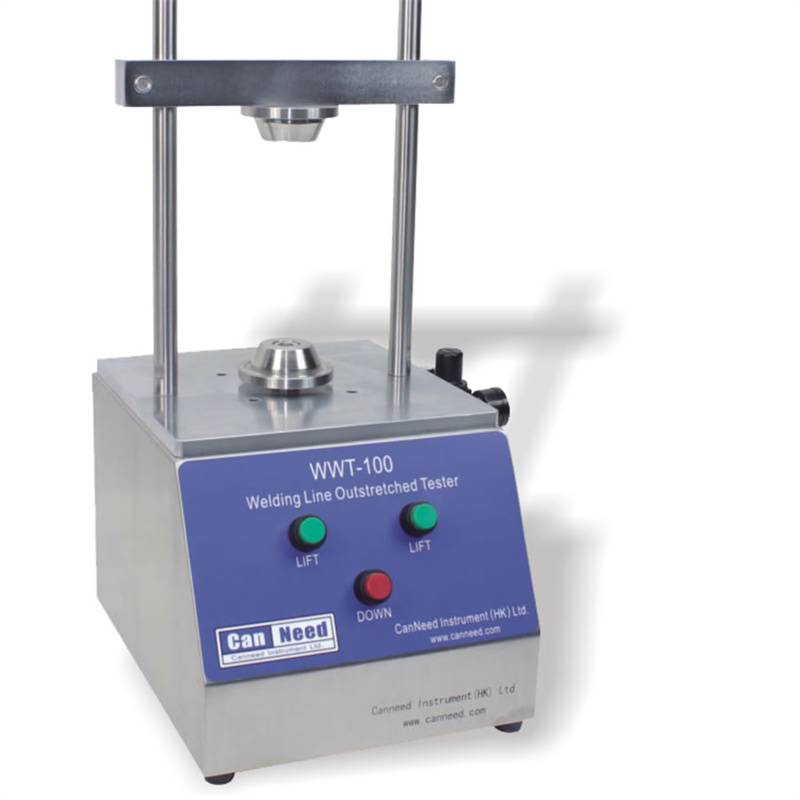

CanNeed-WWT-100 Welding Line Outstretched Tester
|
|
The “CanNeed-WWT-100 Welding line outstretched tester” is used to test the flange point welding integrality of 3-pieces cans.
How to test: Place a sample can body on the corresponding plug, handle piston valve. And the cylinder drives the board to press the can body. Stop when the flange os curled about 10 mm. Then loosen the piston valve, take the can body out to check if there is any breaches. Mark down the result.
|
|
|
WOM 4C Welding Overlap Monitor
|
|
The CanNeed “WOM 3A Welding Overlap Monitor” is used to measure the length and thickness of side seam welding overlap. It’s equipped with the most advanced optical system and Golden LensTM, which ensured the high image definition.
|
|
|

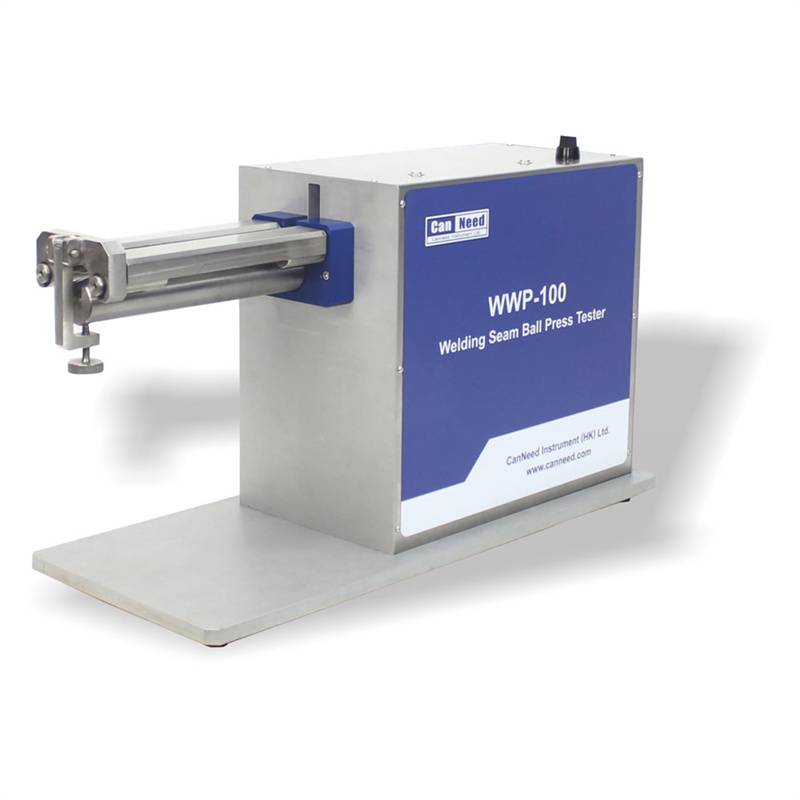

CanNeed-WWP-100 Welding Seam Ball Press Tester
|
|
The “CanNeed-WWP-100 Welding Seam Ball Press Tester” is used to test the welding seam quality, including the welding seam strength and continuity of 3-piece cans.
Testing Method: place the empty cans to the clamp, align the welding seam with the ball, and then tightly press the can. The cylinder pushes the ball to slide along the welding seam. Next, take the can out to check if there are any breaches.
|
|
|
CanNeed-WWT-100 Welding Line Outstretched Tester
|
|
The “CanNeed-WWT-100 Welding line outstretched tester” is used to test the flange point welding integrality of 3-pieces cans.
How to test: Place a sample can body on the corresponding plug, handle piston valve. And the cylinder drives the board to press the can body. Stop when the flange os curled about 10 mm. Then loosen the piston valve, take the can body out to check if there is any breaches. Mark down the result.
|
|
|

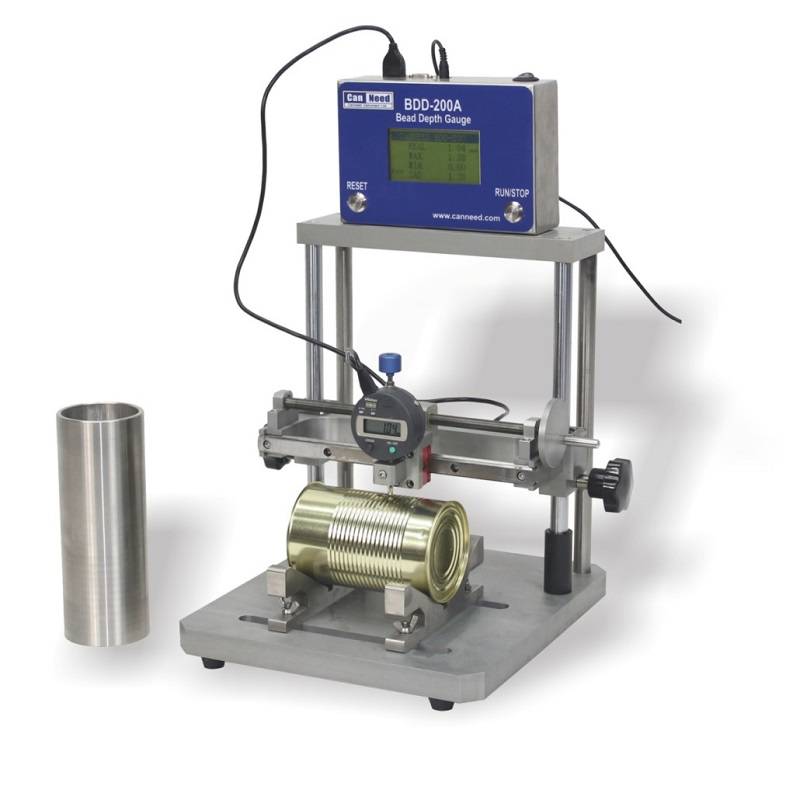

CanNeed-BDD-200A Bead Depth Gauge
|
CanNeed-BDD-200A Bead Depth Gauge is for measuring the bead depth of the can body, with the special designed end measuring holder, end bead depth can also be measured. The fine designed can holder, which ensures the cans keep still during the measuring, and the results are more accuracy.
|
|
|

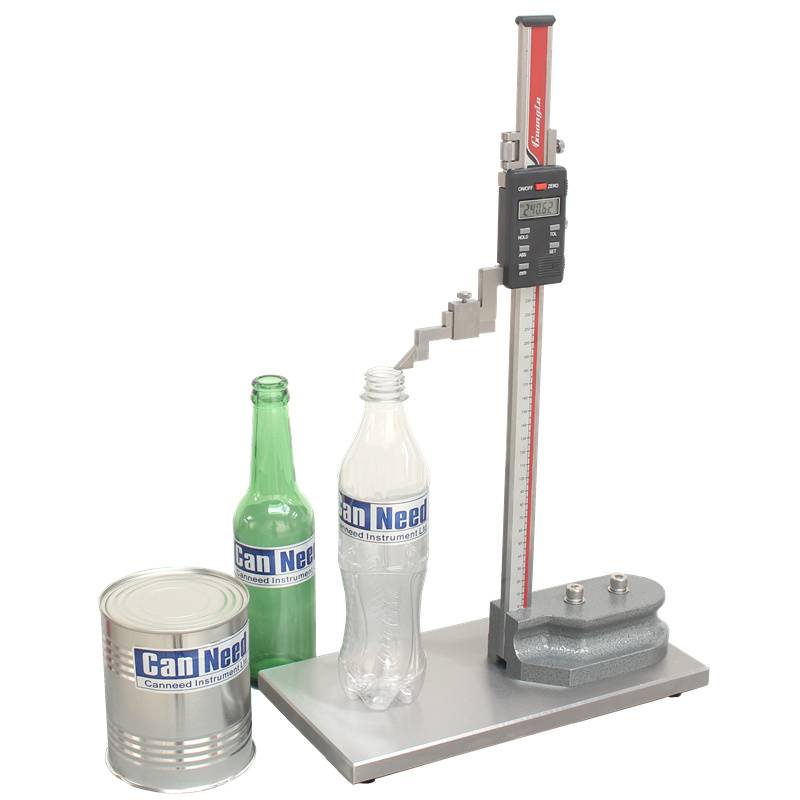

CanNeed-DHG-300 Digital Can Height Gauge
|
|
The CanNeed "DHG-300 Digital Can Height Gauge" can be used to measure the height of beverage, food, and aerosol cans. The gauges can be connected to a computer or SPC system via the adapter and cable.
|
|
|

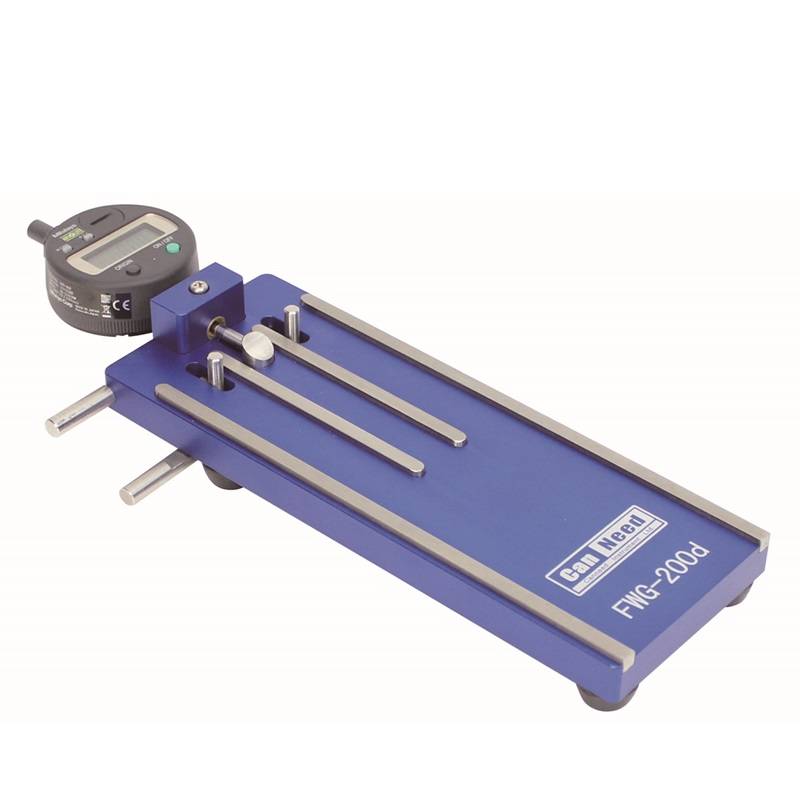

FWG-100-D, FWG-200-D, FWG-300-D Flange Width Gauge
|
|
The “CanNeed-FWG-100-d, CanNeed-FWG-200-d, CanNeed-FWG-300-d Flange Width Gauge (digital)” is used to measure the flange width of empty cans. Reliable design, invariableness measuring pressure and measuring angle which enable the inexperienced operators can also perform the measurement accurately. Auto aligning the center of can body, applicable for different types of cans.
If purchased the adapter and cable, the gauges can be connected to a computer or SPC system for data collection, avoiding the manual recording and personal error.
|
|
|

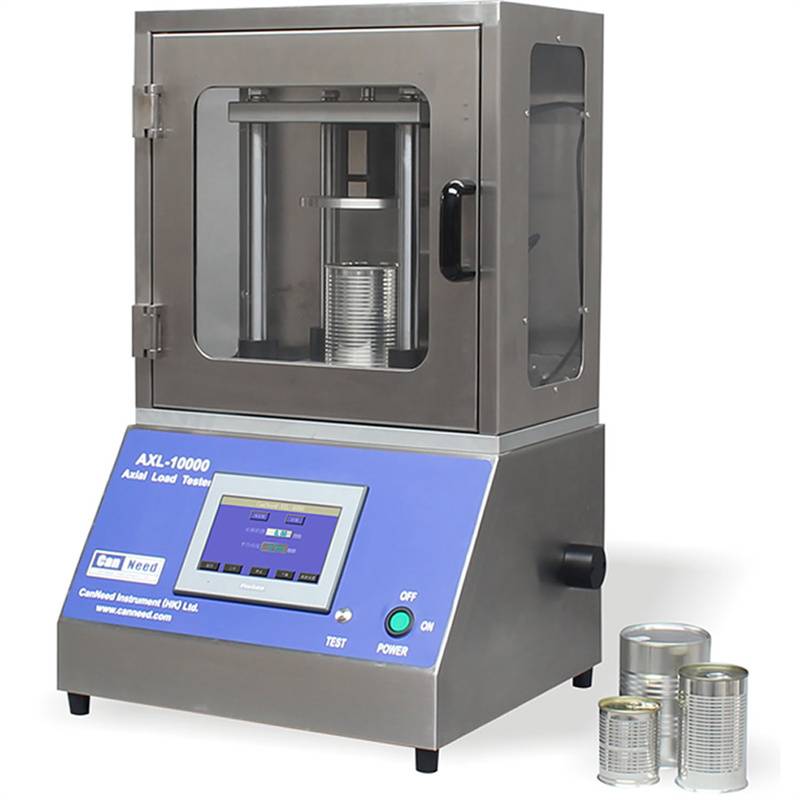

CanNeed-AXL-10000 Axial Load Tester
|
|
The CanNeed “AXL-10000 Axial Load Tester” measures the axial force resistance of food cans in Newton. The can is placed in a support and gradually forced upwards against the pressure plate. The space between the support and the top plate can be altered with spacers. The can crashes after the peak force has been applied that the can is capable of resisting. The maximum value can now be read in the display
|
|
|

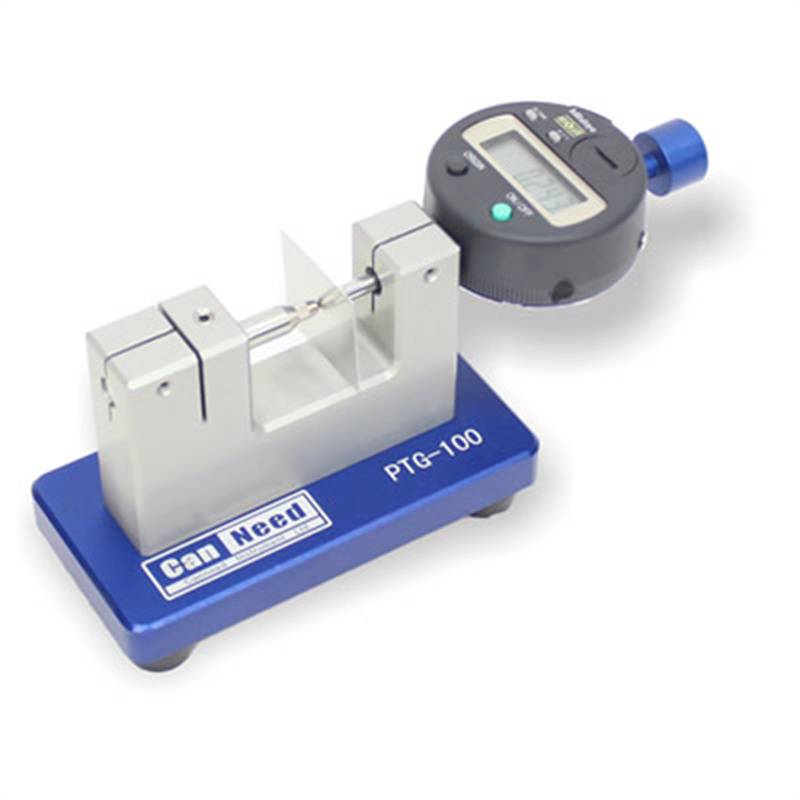

CanNeed-PTG-100 Digital Plate Thickness Gauge
|
This unit serves for quickly checking the thickness of plates. The sample is presented vertically in this version. Equipped with the Mitutoyo 0.001mm Resolution Digital Indicator.
If purchased the adapter and cable, the gauge can be connected to a computer or SPC system for data collection.
|
|
|
VSM 6A Automatic Seam Monitor
|
The " VSM 6A Automatic Seam Monitor " is a compact measuring system
for quick and accurate automatic seam measurements and storing of seam images.
The seam length, body hook, end hook, actual overlap, percentage overlap;
seam gap, seam thickness and body hook butting% are measured.
The values can be stored in a Excel file and are displayed in on-screen if values are within specs.
Seam image can be printed, stored!
|
|
|

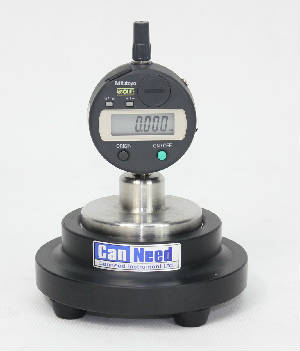

PDG-D Plane depth Gauge (Digital)
|
|
The CanNeed “PDG-D Plane Depth Gauge for Canned Food and Beverage” is used to measure the plane depth of canned food and beverage. It can monitor the inner pressure or vacuum of the cans without piercing the cans.
|
|
