Applications: Food-industry / Cosmetic/ Pharmaceutical / Chemical / Metrology

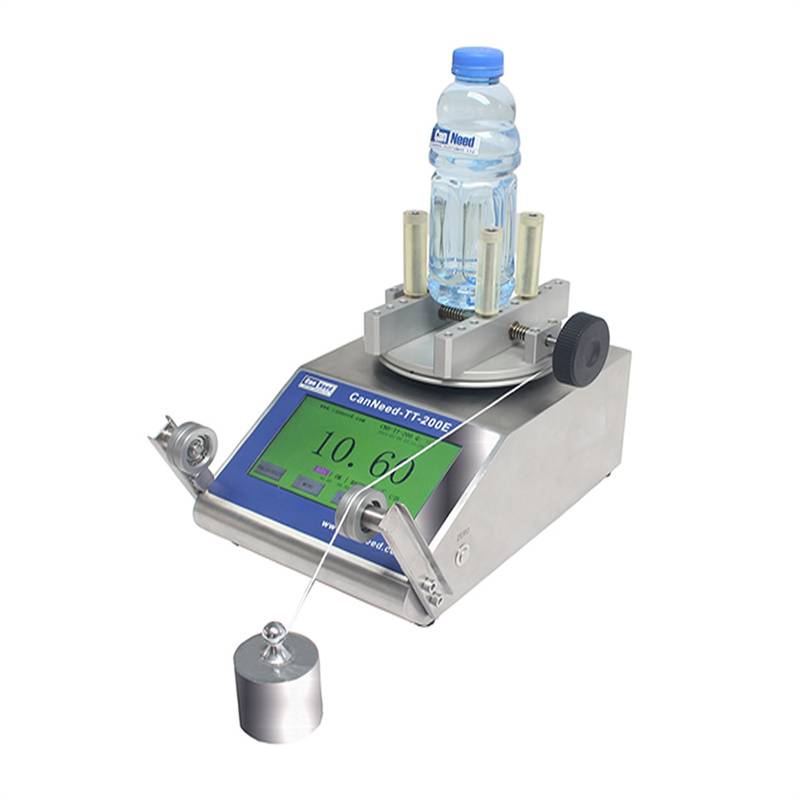

The CanNeed-TT-200-E Digital Torque Tester are specially designed for testing the cap closing and opening torque value of the bottled products. Its excellent performance makes it the industrial standard.
The clients can also choose the measuring software by order.

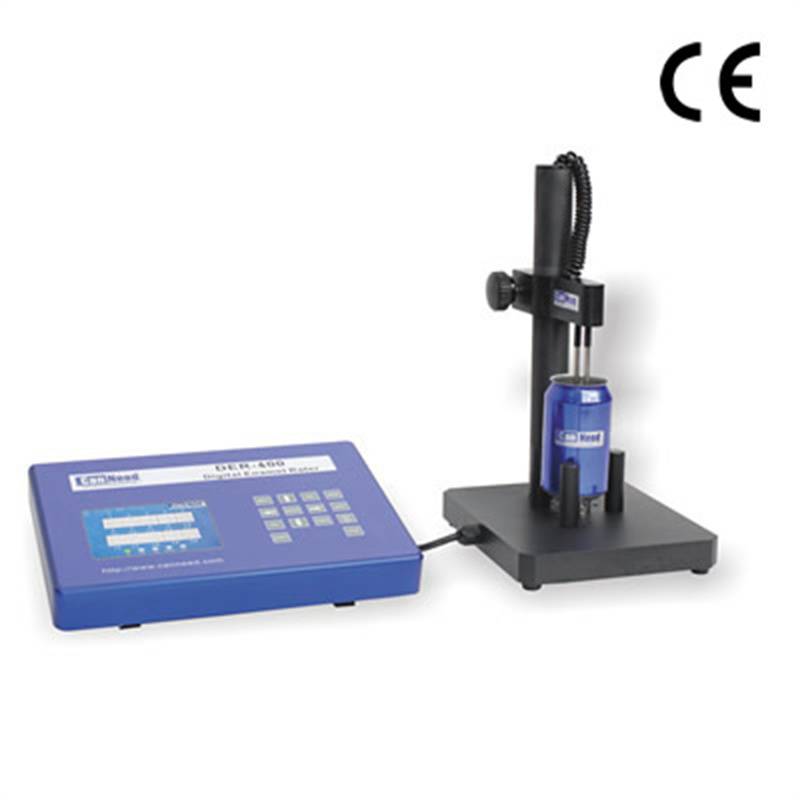

CanNeed-DER-400 Digital Enamel Rater is able to detect the exposed metal position more easily compare to the former models. The reformative electronic design makes it more sensitive, reliable and accurate. The anticorrosion characteristic of the enhanced can body support is ensured its durability. The film coated buttons are more durable and with better corrosion resistance.

CanNeed-DER-400 is the industry standard. The new CanNeed Enamel Rater DER-400 instrument test the coverage of the enamel coating inside food and beverage cans, aerosol-cans and also different kinds of ends. It displays an index of the amount of metal exposed by incomplete enamel coverage on a clear, easily read digital LED.

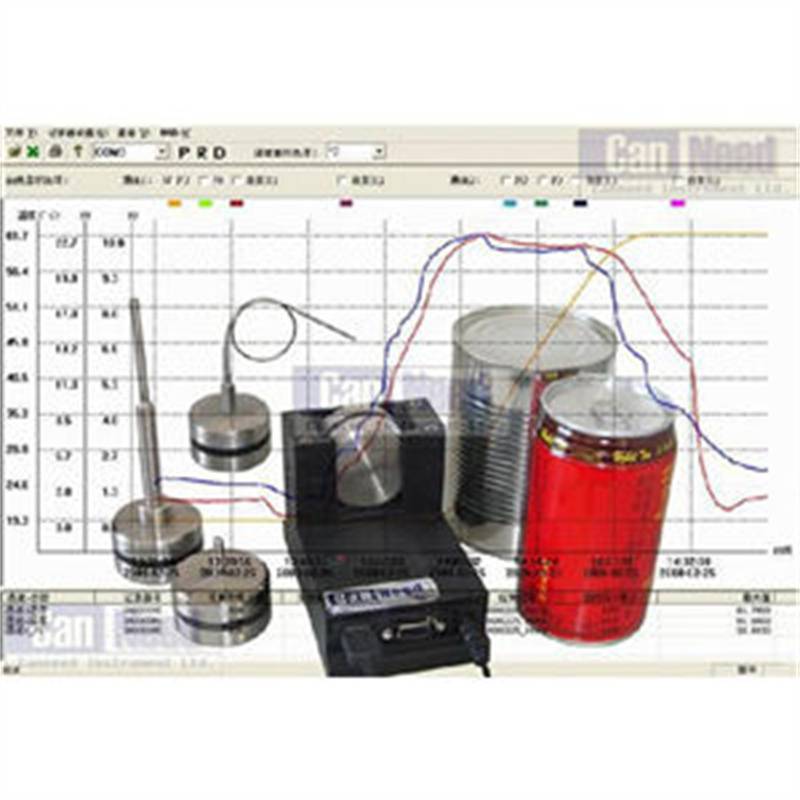

CanNeed-CAN-F-125 Sterilization Temperature Monitor (F0 Value Monitor) has been chosen by many beverage and canned food factories.

Applicable to different kinds of sterilization equipments and different place that require temperature monitoring: sterilization kettle (autoclave), Spray sterilization machine, Water sink sterilization machine, warehouse, transportation vehicles, etc.

Applicable to different kinds of products: canned food, beverage, beer, pouch food, jelly, etc.
Applicable to different kinds of packaging: metal cans, glass or PET bottles, pouches, plastic boxes, etc.

Bottle packaging is one of the common packaging forms of food, beverage and drugs. The torque value of opening and closing is one of the key controlling parameters on production line or offline. The appropriate torque value has a great influence on the transportation and final consumption of the products. It is one of the key product indicators which needs to be controlled by enterprises.

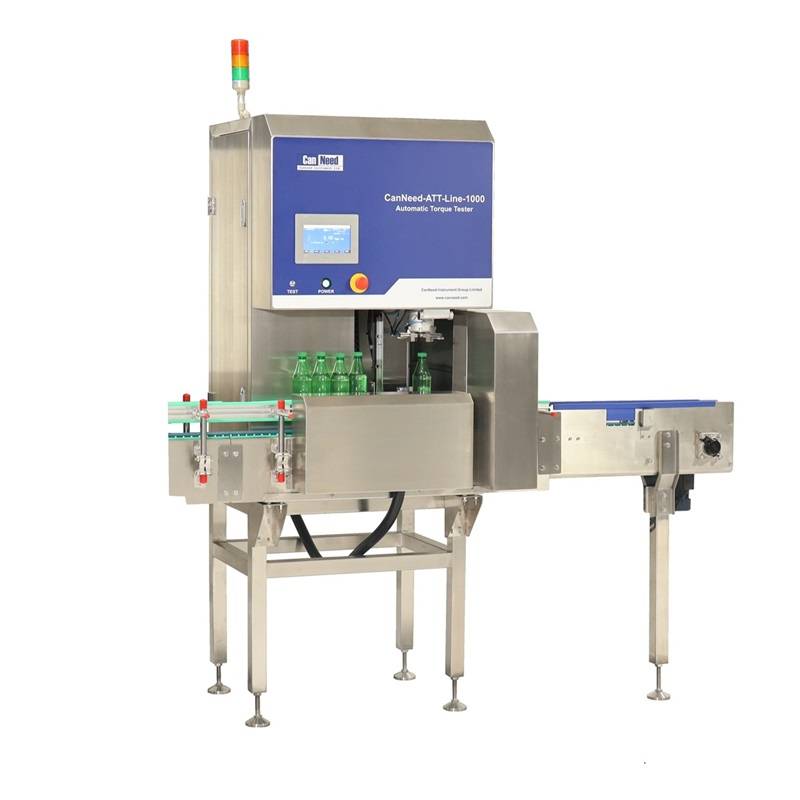

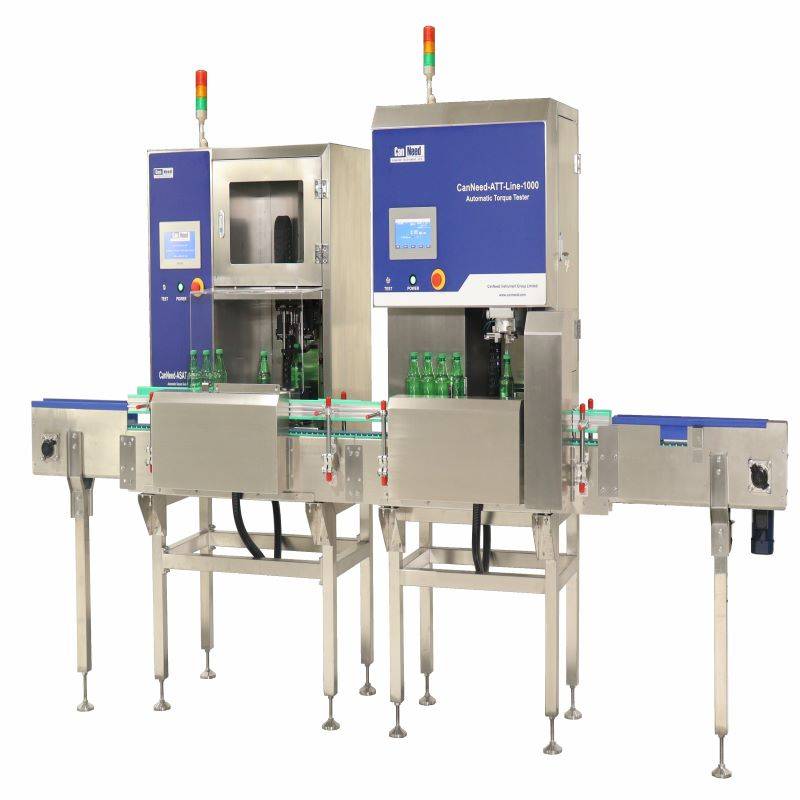

CanNeed-ATT-Line-1000 Automatic Torque Tester is the ideal instrument to do this test. It can be placed maximum 12 samples, then automatically sampling by conveyor belt. The sample will be measured automatically once arrived at the measurement station and avoid the influence of human factors.

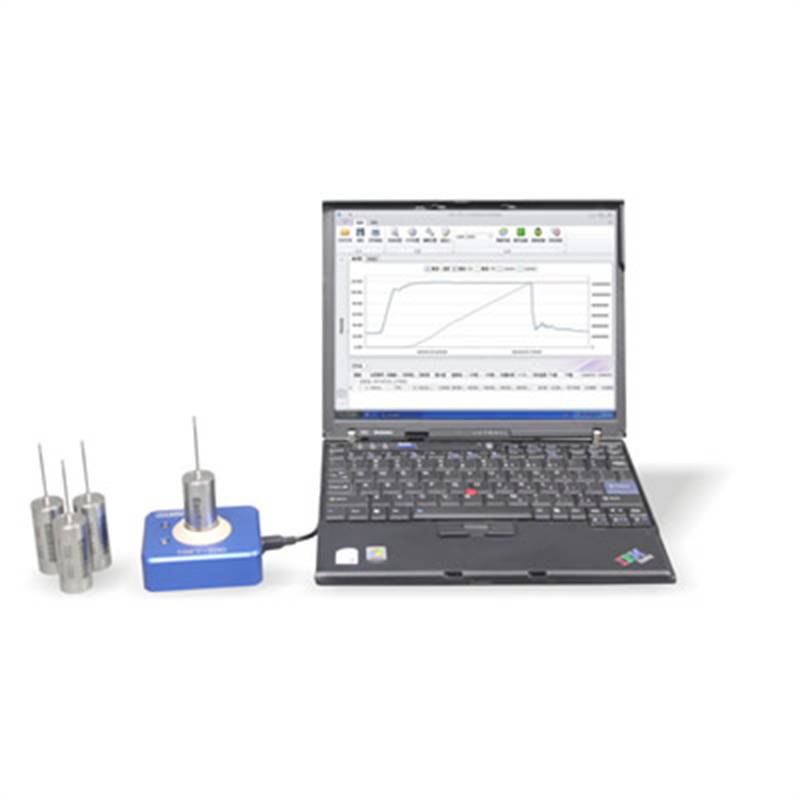

CanNeed-TDE-100 Sterilization Thermograph (Can FO Value Tester) Suitable for all kinds of sterilization apparatus and occasions for recording temperature: retorts, spray sterilizing machines, sink type sterilizer, warehouse and trucks.

The user properly connects CanNeed-TDE-100-C** Sterilization Thermograph with the test samples, and places them together in the sterilizing equipment for sterilization. CanNeed-TDE-100-C** will record the temperature curve during the whole process of the sterilization. When the sterilization ends, the thermograph will be put on CanNeed-TDET-100 “Electromagnetic Induction” Data Transmitter and the temperature data will be output to the computer. With the assistance of the software, the temperature data and curve can be read, analyzed, saved and printed.

CanNeed-GNG-100 “Go-no-Go” Gauge

Quality control gauges for checking the threaded tops of glass and plastic containers. It checks the threads, outside diameter, spacing, etc.
Comb. Finish Gauge 28mm-PCO-1816 PET
Comb. Finish Gauge 28mm Pet/28-969-1716
Comb. Finish Gauge 38mm Glss/38-1663
Comb. Finish Gauge 38mm Pet/38-1690
Comb. Finish Gauge 28mm Glass/28-1650RE
Comb. Finish Gauge 28mm-PCO-1810 PET
Comb. Finish Gauge 28BPF

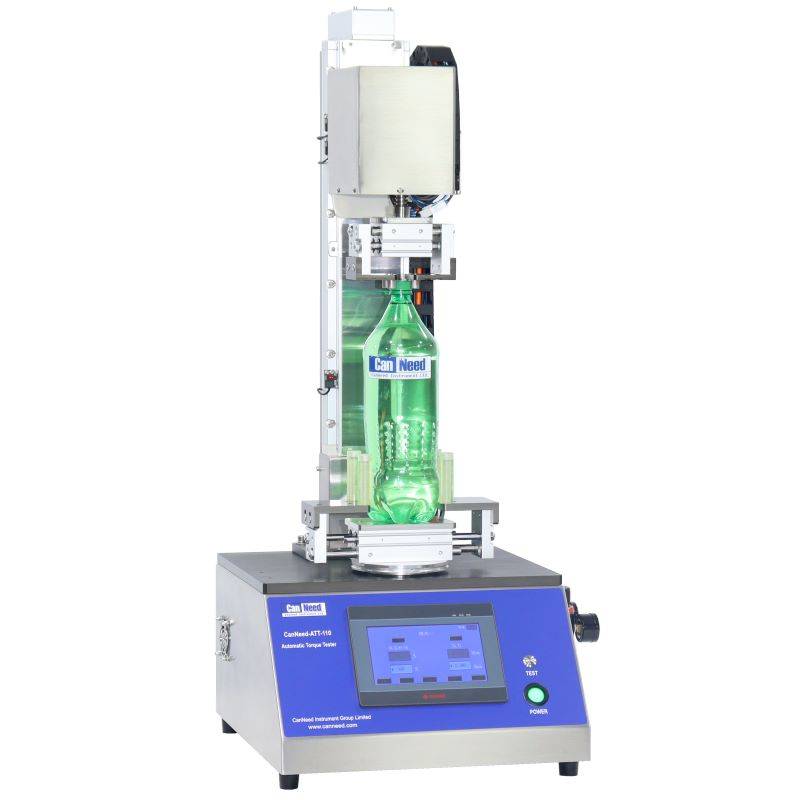

CanNeed-ATT-110 Automatic Torque Tester, is a new instrument developed by CanNeed, to test the torque value of caps for bottled packaging products, nozzle packaging products, hose packaging products. Applicable for National Standard, Industrial Standard: GB/T 17876, ASTM D2063, ASTM D3198, ASTM D3474, BB/T 0025, BB/T 0034.

The instrument is to measure by contact method. Just need to place the bottle sample on testing platform and press start button, the bottle positioning clamp will clamp the bottle. Then the cap rotary fixture will drop vertically to clamp the cap, twist the cap and measure. The display screen records the display value. After measurement finished, the bottle positioning clamp will be released and all action reset.

CanNeed-ATT-Line-2000 Automatic Seal Angle and Torque Tester is to test Seal Angle, Opening Torque, Twisting Angle, tightening torque and tightening Angle of bottled drinks. Weighing function is optional.

It can be placed maximum 12 samples, then automatically sampling by conveyor belt. The sample will be measured automatically once arrived at the measurement station and avoid the influence of human factors.

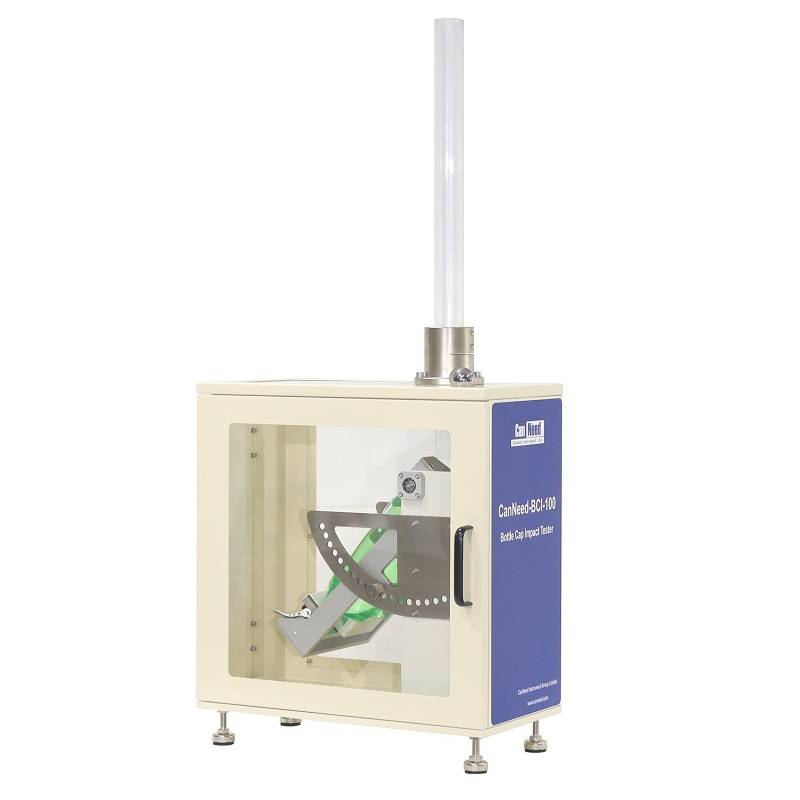

CanNeed-BCI-100 Bottle Cap Impact Tester is used to test the impact resistance of various plastic bottle caps  under the impact of steel balls at a certain height.

The application meets to the test requirements of standard GB/T17876-2010 6.4.4.

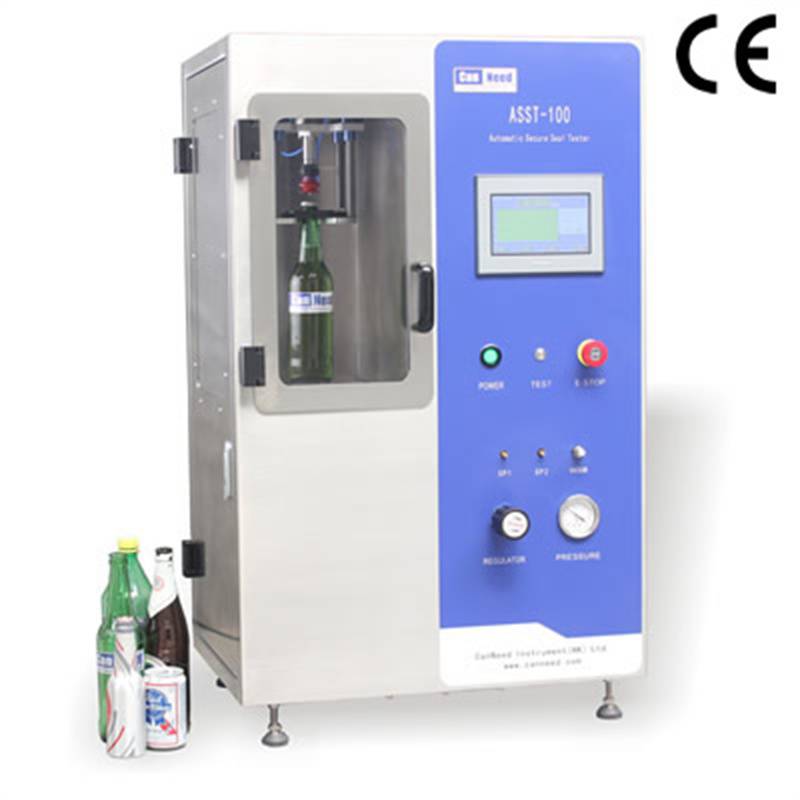

CanNeed-ASST-1000 Automatic Secure Seal Tester is used to test the seal integrity after packaging. By detecting gas leakage, it effectively controls the seal integrity after packaging. It is used to test PET bottles, glass bottles and cans, also can be used to test crown caps and caps of PET bottles. It effectively controls the sealing propertyand prevent gas leakage, therefore it is widely used in beverage industry. Place the sample into water and take pressure charge, then observe if there is gas leakage to judge the seal integrity.

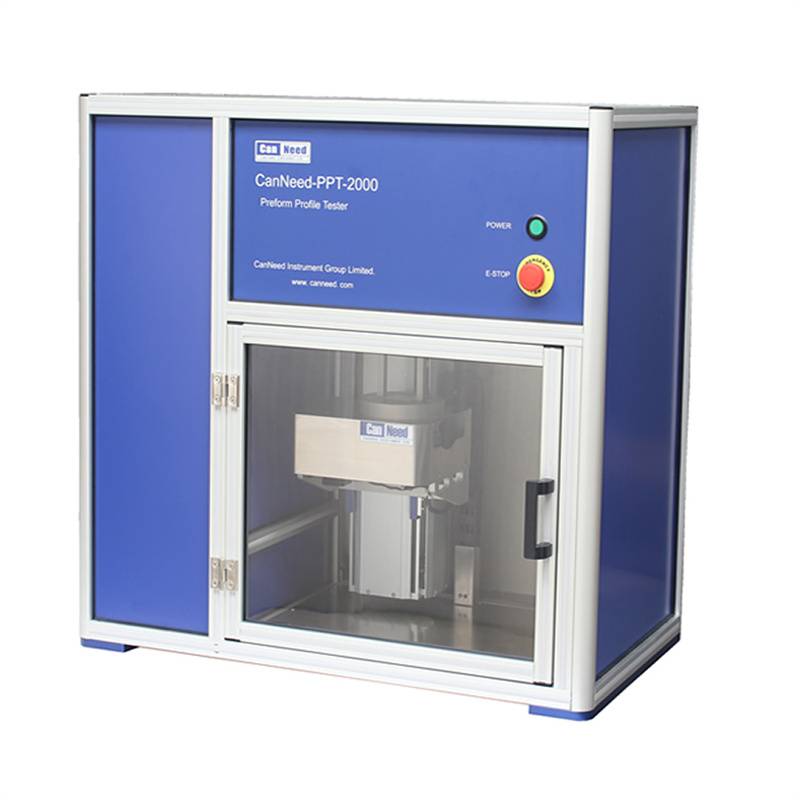

CanNeed-PPT-200 Preform Profile Tester is suitable to measure preforms of various sizes to execute fast replacement of machinery in production process.

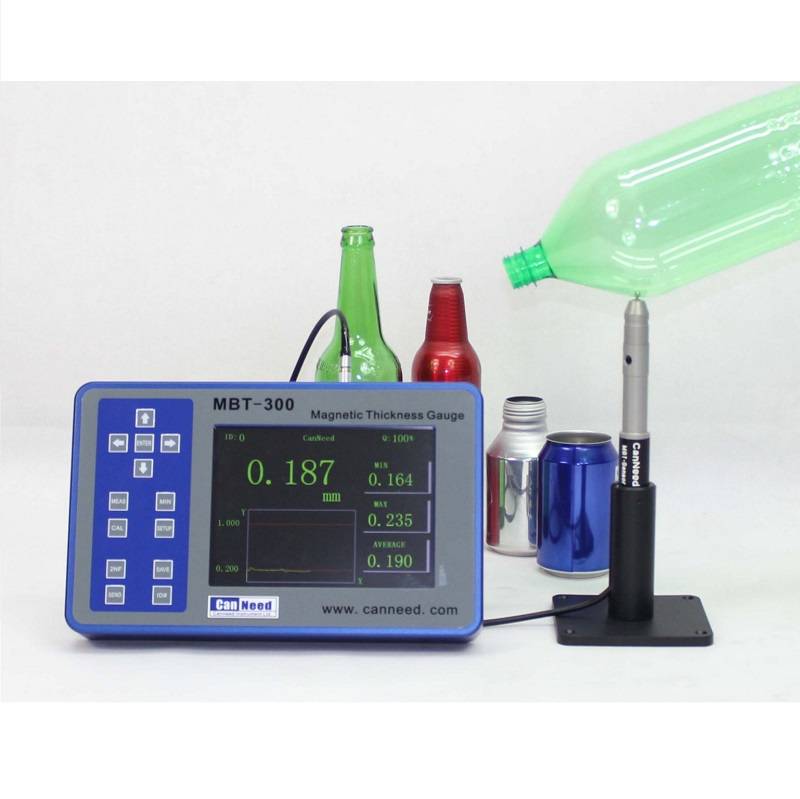

The “CanNeed-MBT-300 Hall Effect Thickness Gauge (Magnetic Bottle Thickness Gauge)” is a refined portable thickness gauge. It is used to measure the thickness of nonmagnetic material, such as plastic, glass, synthetics, aluminum and titanium, etc. The measurement accuracy is undistorted by the samples’ shapes.

CanNeed-MBT-300 is based on the theory of Hall Effect. For test, place the steel ball on one side of the sample and the probe on the other side. The Hall Effect sensor on the probe measures the distance from the probe tip to the steel ball. The calculator will display the real thickness readings.

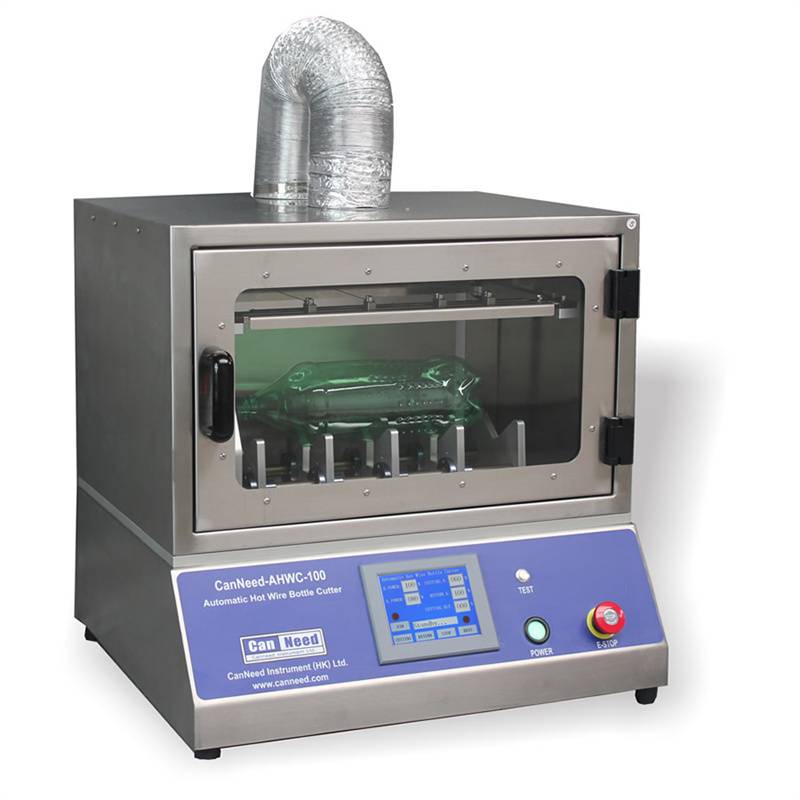

CanNeed-AHWC-100 Automatic Hot Wire Bottle Cutter offers an easy-to-use and cost-effective method for cutting containers for section weight analysis. It can cut PET bottle into several determined sections(The maximum  is up  to 5 sections). Then,  the user can check whether each section accord with  the corresponding weight standard. CanNeed-AHWC-100 can quickly cut PET bottle with hot wires. Clear profiles can be obtained without PET deformation. PET bottle samples can be 200-3000 ml.

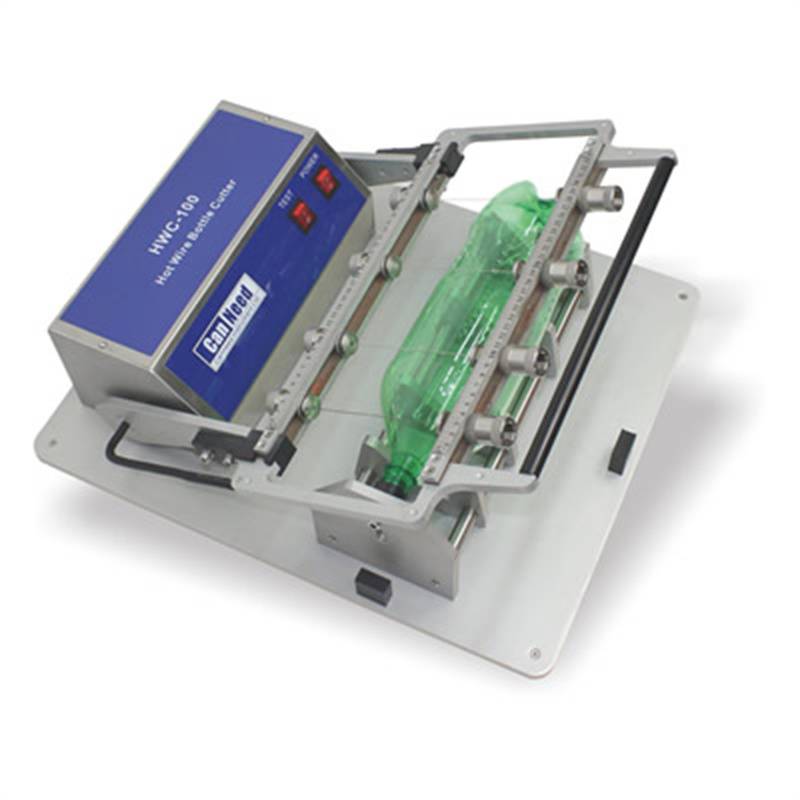

The “CanNeed-HWC-100 Hot Wire Bottle Cutter” offers an easy-to-use and cost-effective method for cutting containers for section weight analysis. It can cut PET bottle into several determined sections (The maximum is up to 5 sections). Then, the user can check whether each section accord with the corresponding weight standard. CanNeed-HWC-100 can quickly cut PET bottle with hot wires. Clear profiles can be obtained without PET deformation. PET bottle samples can be 200-3000 ml.

Prepares bottles for section weight analysis.
PET bottle samples of 200ml to 2,000ml are cut in 4 predetemined portions, Each bottle portion are checked to ensure that they comply to the exact weight assignment.

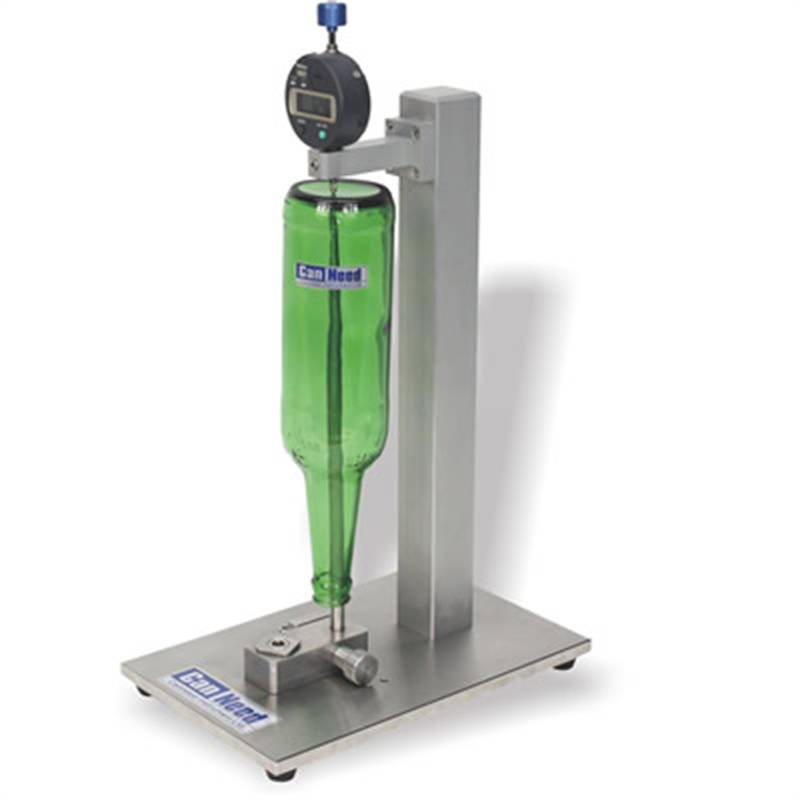

The CanNeed-PPG-100 Preform Perpendicularity Gauge is used to test the perpendicularity of PET bottle.

It is the standard equipment for PET bottle industry and beverage industry.

Unlike other instruments, CanNeed-PPG-100 can effectively avoid the measuring errors made by the clamp. Equipped with calibration column, it can ensure absolute accuracy.

This instrument consists of rotary clamp, indicator, calibration column and vertical pillar.

The preforms with varying dia bottle openings were equipped with special rotary clamps and calibration column. Please provide the specifications of bottle openings when placing orders.

The rotary clamp can be customized and replaceable, so that the detection adaptability will be greatly upgraded for different specification performs.

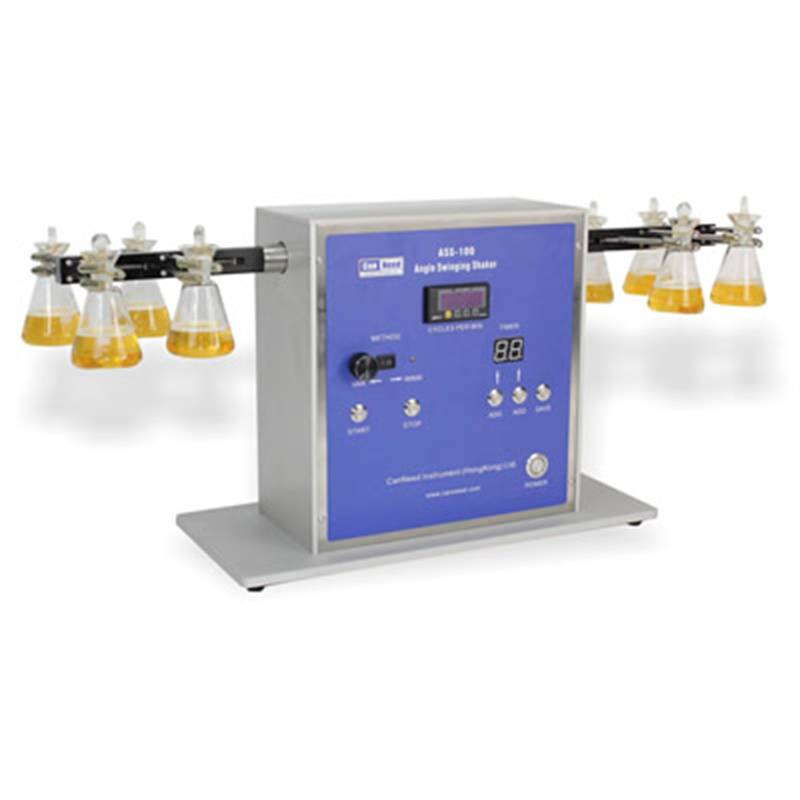

The  CanNeed-ASS-100 Angle Swinging Shaker is used to shake up the samples,especailly for extraction testing.Put the sample into the conical flask,and clamp the conical flask,then set the time and frequency to start shaking.
The device adpot a 20mm reciprocating shaking way,which ensure the sample is fully mixed.

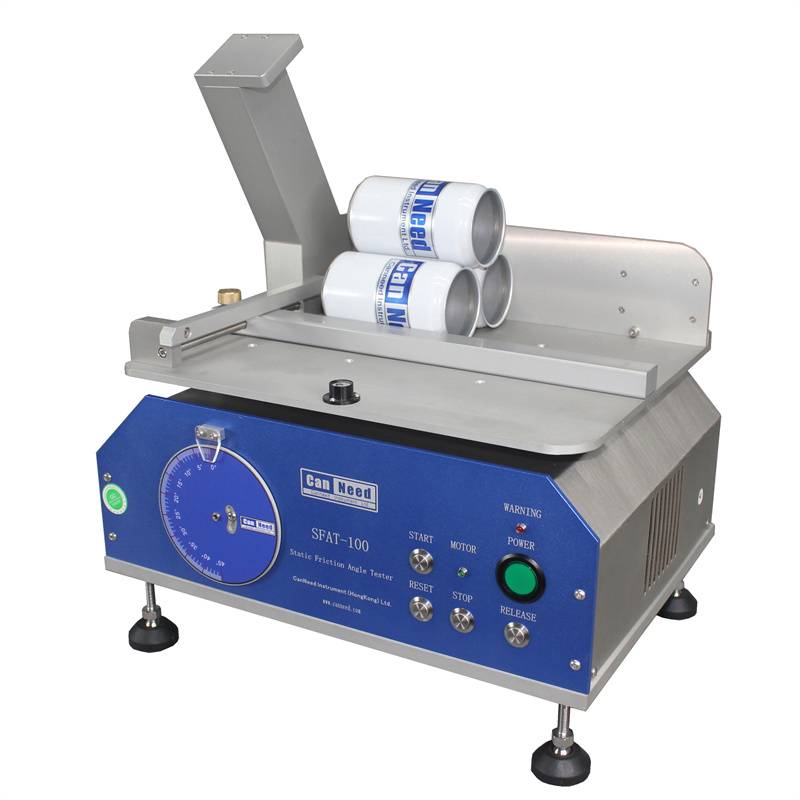

CanNeed-SFAT-100 Static Friction Angle Tester enables accurate measurement of container lubricity and coefficient of static friction.

Three containers are placed on the table in a pyramidal configuration. After the start button is pushed, an electric motor increases the angle of inclination of the table. The bottom two containers are constrained and do not move during testing. When the tilt angle becomes great enough to overcome the frictional forces between the containers, the top container begins to slide and will contact the trip bar, which stops the drive motor and simultaneously applies a brake to the inclined table. This prevents coasting and inadvertent measurements of erroneously high tilt angles.

Applicable for: glass bottles, plastic bottles, aluminum bottles and cans, etc.

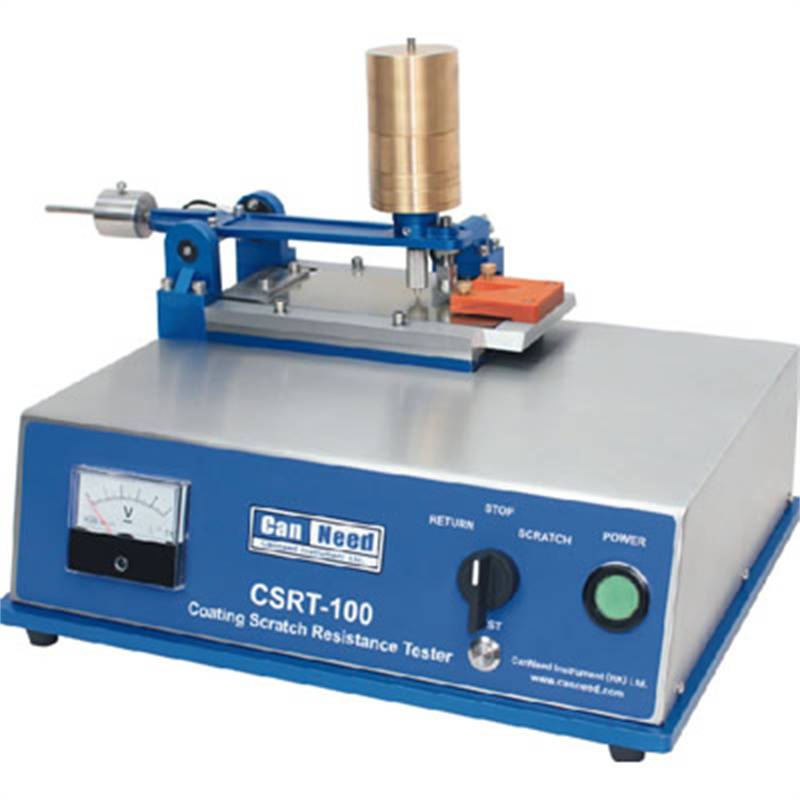

Under defined conditions, CanNeed-CSRT-100 Coating Scratch Resistance Tester is used to determine the resistance of a single coating or a multi-coating of paint, varnish or related product to penetration by scratching with a hemispherical tipped needle or abrasion tool and metal scratching tool and so on.

Clamp the sample, adjust the testing pressure load and move the sample relatively to the tipped needle. If any scratches, there will be readings displaying on the machine.

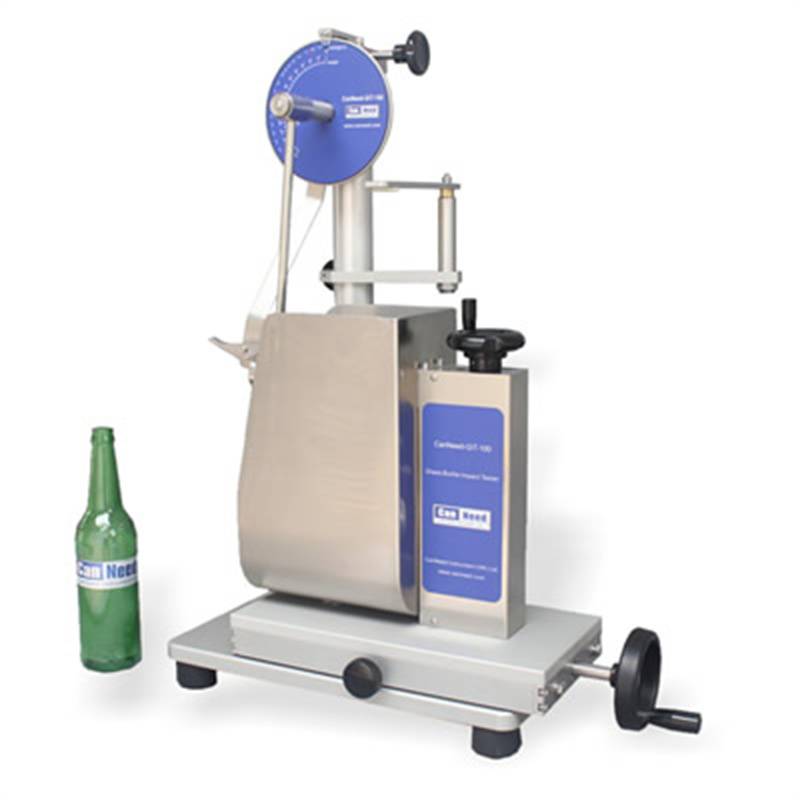

The “CanNeed-GIT-100 Glass Bottle Impact Tester” is industry standard to test the impact resistance of various glass bottles. There are two ruler readings: impact energy and angle of pendulum bar.
