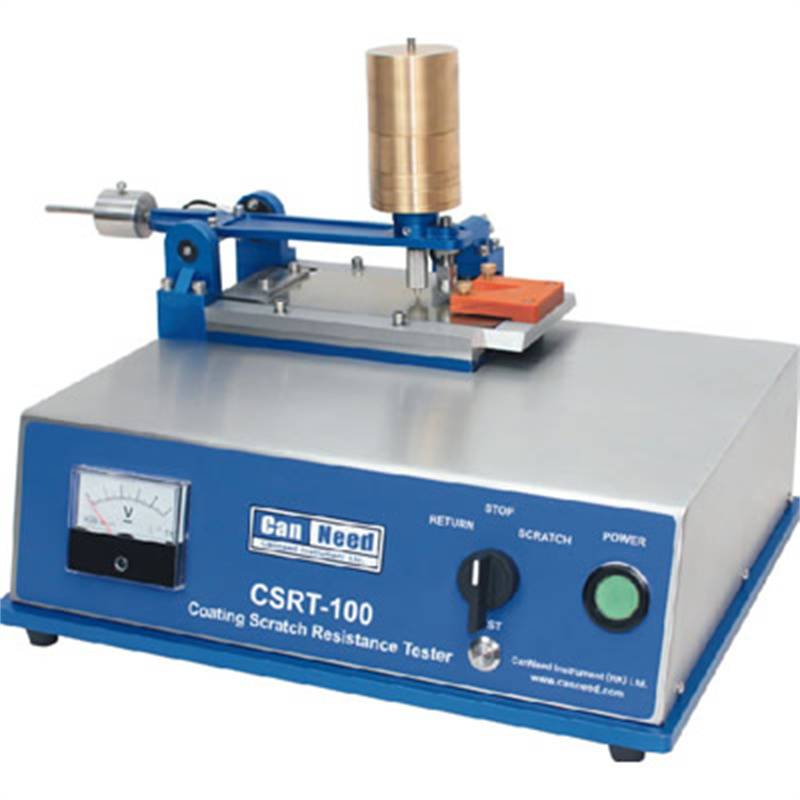

Under defined conditions, CanNeed-CSRT-100 Coating Scratch Resistance Tester is used to determine the resistance of a single coating or a multi-coating of paint, varnish or related product to penetration by scratching with a hemispherical tipped needle or abrasion tool and metal scratching tool and so on.

Clamp the sample, adjust the testing pressure load and move the sample relatively to the tipped needle. If any scratches, there will be readings displaying on the machine.

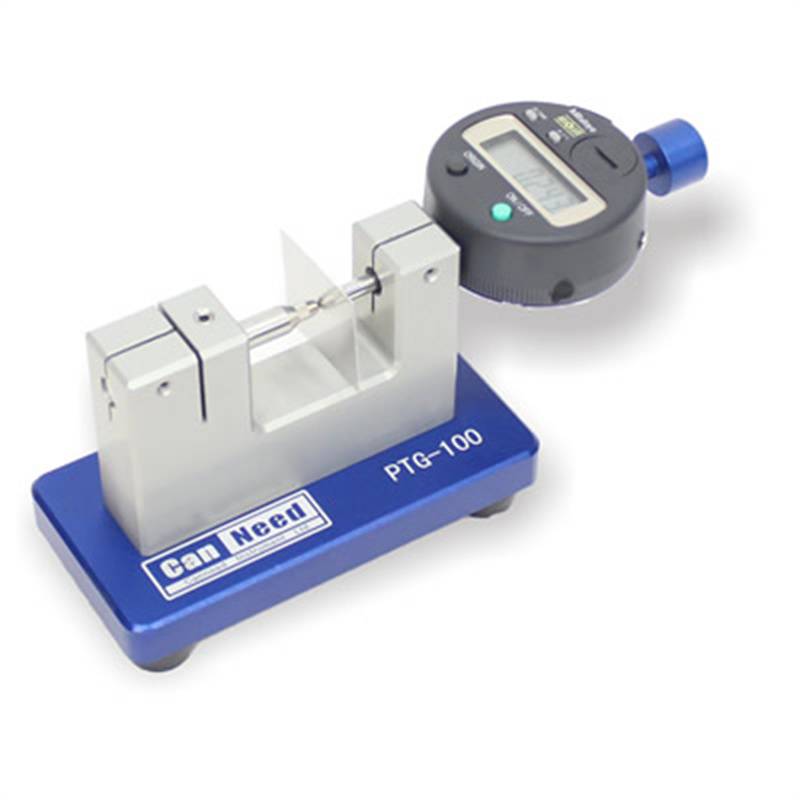

	CanNeed-PTG-100 Digital Plate Thickness Gauge
	This unit serves for quickly checking the thickness of plates. The sample is presented vertically in this version. Equipped with the Mitutoyo 0.001mm Resolution Digital Indicator. If purchased the adapter and cable, the gauge can be connected to a computer or SPC system for data collection.

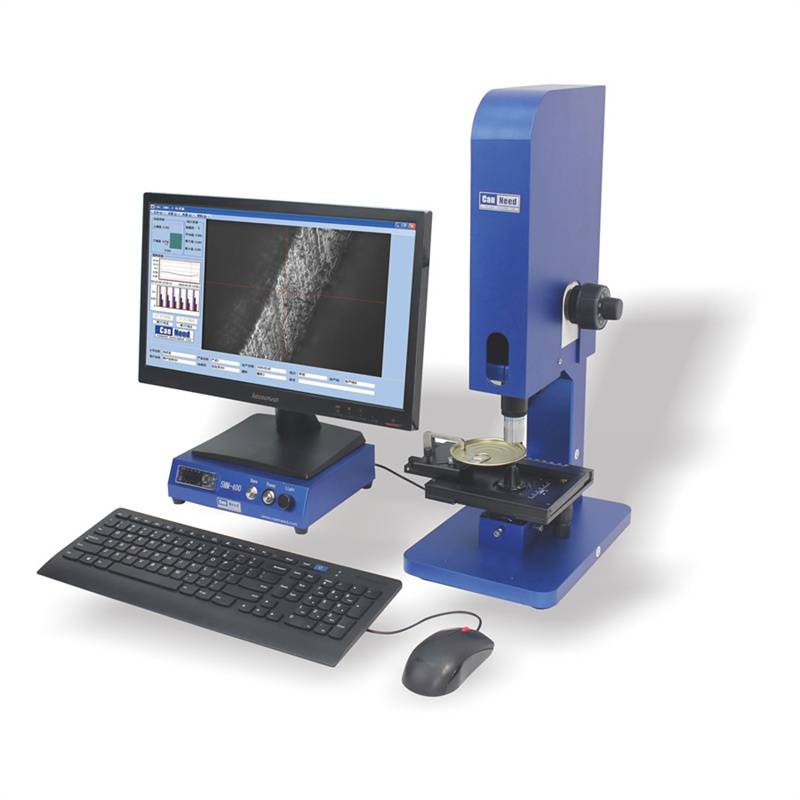

	CanNeed-SMM-400 Score Measure Microscope
	CanNeed-SMM-400 Score Measure Microscope adopted the microscope technology to measure the score depth and residue of can ends. The measurement is accomplished by the focusing of microscope, if the microscope gets a very clear image, that means the focusing is correct, the height changing of the focus of microscope shows the depth of the end score. The diameter of nether measuring needle is very small, focusing on the top of the nether measuring needle, zero the indicator, place the sample end onto the platen, adjust the focus until gets the clear groove bottom image of the end score, then gets the score residue. Place the sample onto the platen, focusing on the surface of sample ends (edge of the score), zero the indicator, adjust the focus , when the clear groove bottom image displays on the screen, then gets the depth of score.

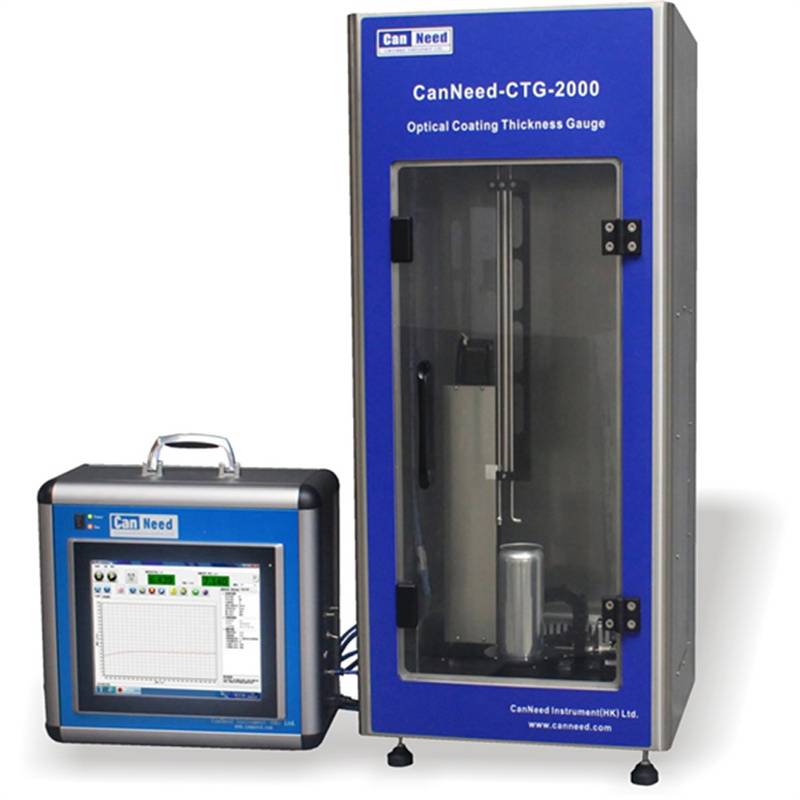

	CanNeed-OCTG-2000 Coating Thickness Gauge
	CanNeed-OCTG-2000 Coating Thickness Gauge is used to measure the coating thickness in real time, save time and improve the quality of the product. Non-contact optical measurement technology is applied to product development, laboratory quality control and online production control. In the solar energy industry, optical coating industry, food packaging,as well metal packaging, are very good choice to improve the surface quality of products: appearance, adhesion, corrosion resistance, abrasion resistance, scratch resistance.

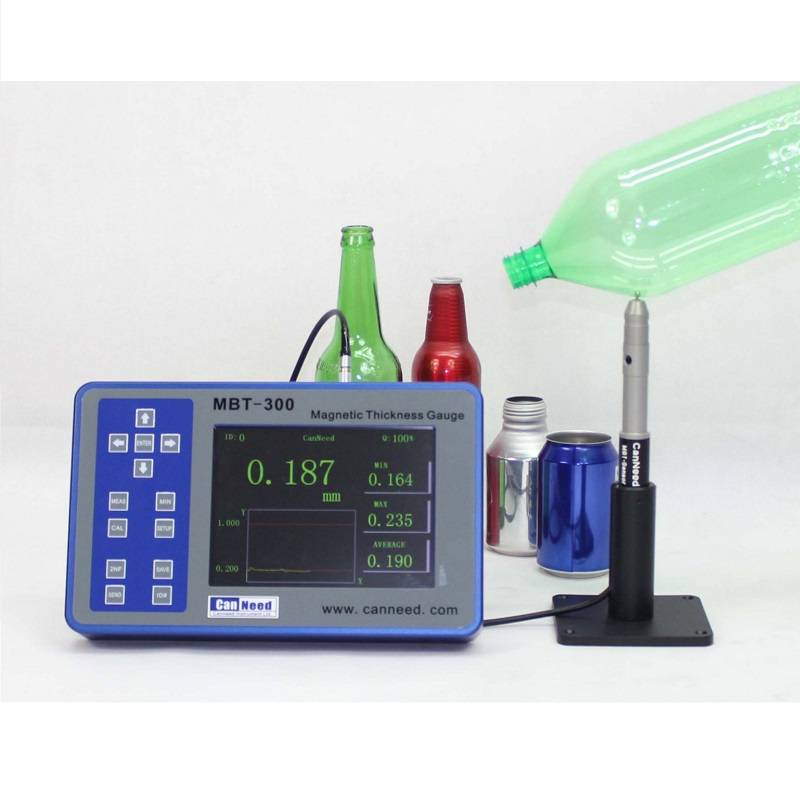

CanNeed-MBT-300 Hall Effect Thickness Gauge(Magnetic Bottle Thickness Gauge)

The “CanNeed-MBT-300 Hall Effect Thickness Gauge (Magnetic Bottle Thickness Gauge)” is a refined portable thickness gauge. It is used to measure the thickness of nonmagnetic material, such as plastic, glass, synthetics, aluminum and titanium, etc. The measurement accuracy is undistorted by the samples’ shapes.

CanNeed-MBT-300 is based on the theory of Hall Effect. For test, place the steel ball on one side of the sample and the probe on the other side. The Hall Effect sensor on the probe measures the distance from the probe tip to the steel ball. The calculator will display the real thickness readings.
