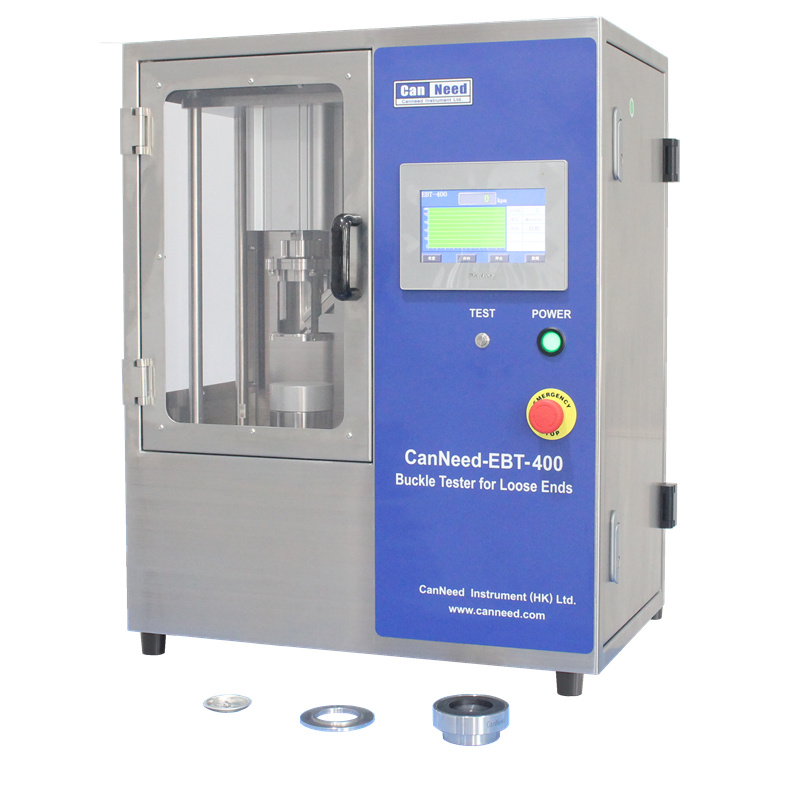

The CanNeed-EBT-400 Buckle Tester for Loose ends is for testing the exact pressure at which the end buckles. Any end of varying diameter may be tested: change parts are available that can be exchanged within seconds. Three testing modes: “Buckle Test”, “Missile Test”, and “Score Burst Test”.

Buckle Test Mode

Place the loose end on the testing holder, close the door and press the “Start” button. The pneumatic cylinder will drive the clamp to press on the end firmly and tightly and pressurize automatically. Operators can pre-define the pressurizing speed. The test will be terminated as soon as the end buckles. The maximum pressure value will be shown on the display.

The test results of loose ends are different from the results of seamed ends, it usually 0.03 - 0.08 Mpa higher compare to the results of seamed ends.

Missile Test Mode

When the consumers open a canned carbonated beverage, if the metal sheet of the ring fly off, it could be very dangerous and may hurt on the eyes. The CanNeed-EBT-400 Buckle Tester for Loose ends can simulate the situation of opening a canned carbonated beverage, the “RP” end will be tear off under a force of 0.6Mpa, the ring on the ends to be pull up rapidly by the hook, if the ring or the metal sheet which is inside the annular score was fly off, then the sample is disqualified.

Score Burst Test Mode

The loose end to be pressed by the special designed holder and clamp, pressurize to the pre-defined pressure, if the score was destructed, that means the sample is disqualified.

1. Industry Standard
2. Suitable for any ends of varying diameters
3. Simple operation
4. With RS232 data output, able to transmit data to SPC systems
5. Touching screen PLC control system, auto data collection.
6. Pressurizing speed and curve may be set
7. High precision
8. Test Point for Calibration
9. Equipped with piston supercharger, able to double or tripled the inlet air supply. The detailed multiple can be adjustable. (i.e.: when the pressure of air supply is 0.5Mpa, the testing pressure can be up to 1.0Mpa.)
10. Able to review each single test result after several tests have been done, and auto calculate the average max. and min. test values.
11. Multi safety apparatus
12. Overload Protection

• Measure range: 0-900 Kpa (0.9 Mpa)
• Pneumatic supply: 0.5 Mpa
• Resolution: 1 Kpa
• Power supply: 115/230V, 50Hz
• Accuracy: 0.5% F.S.
• Dimensions: 520 x 460 x 750 (W x D x H )
• Data cable: RS232 serial output
• Weight: 50 kg
• Units: Kpa
