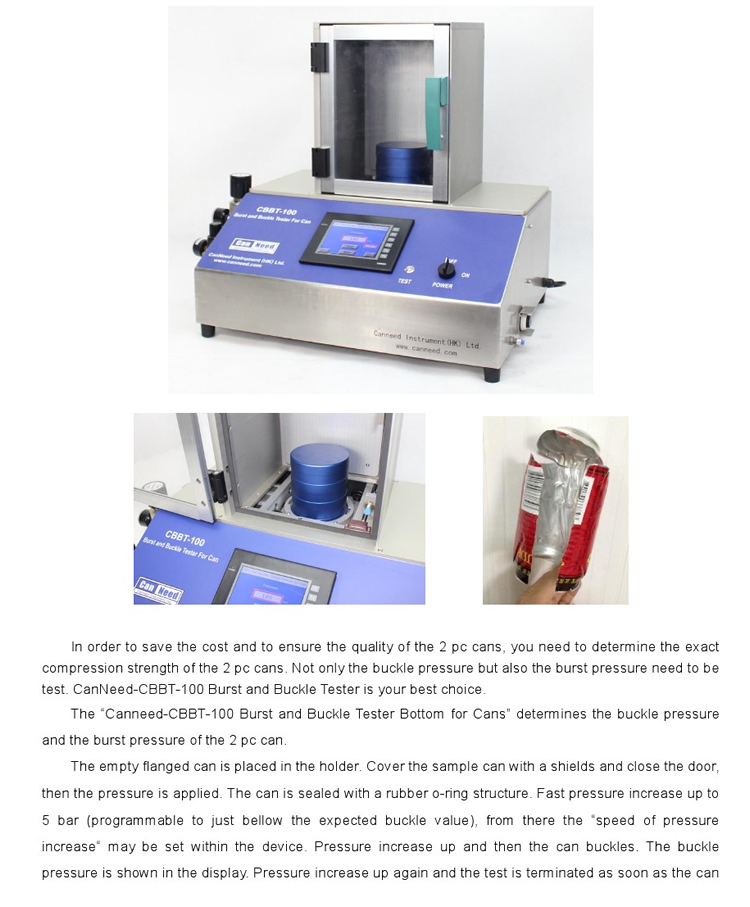

The CanNeed-CBBT-100 Burst and Buckle Tester Bottom  for Cans determines the buckle pressure and the burst pressure of the 2 pc can.

The empty flanged can is placed in the holder. Cover the sample can with a shields and close the door, then the pressure is applied. The can is sealed with a rubber o-ring structure. Fast pressure increase up to 5 bar (programmable to just bellow the expected buckle value), from there the “speed of pressure increase“ may be set within the device. Pressure increase up and then the can buckles. The buckle pressure is shown in the display. Pressure increase up again and the test is terminated as soon as the can bursts. The burst pressure value is shown in the display.
Any can of various diameters and height may be tested: inserts are available that can be exchanged within seconds.

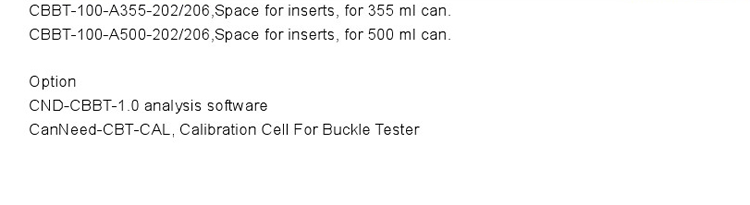

With CND-CBBT-1.0 analysis software, the measurement curve can be displayed, the measurement results are stored in the database

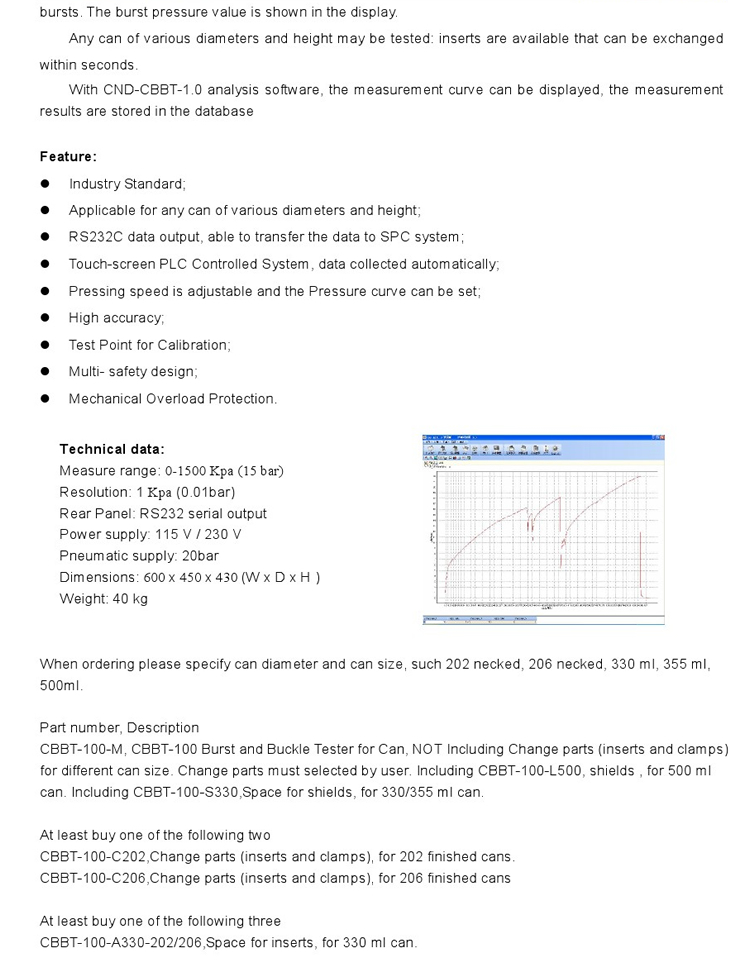

•  Industry Standard;

•  Applicable for any can of various diameters and height;

•  RS232C data output, able to transfer the data to SPC system;

•  Touch-screen PLC Controlled System, data collected automatically;

•  Pressing speed is adjustable and the Pressure curve can be set;

•  High accuracy;

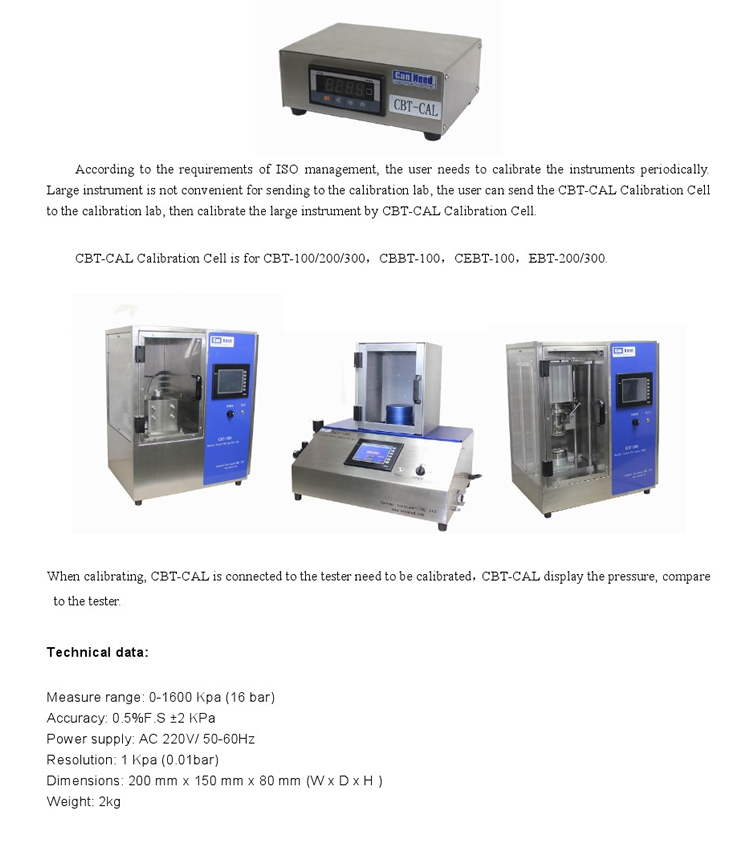

•  Test Point for Calibration;

•  Multi- safety design;

•  Mechanical Overload Protection.


Measure range: 0-1500 Kpa (15 bar)
Resolution: 1 Kpa (0.01bar)
Rear Panel: RS232 serial output
Power supply: 115 V / 230 V
Pneumatic supply: 20bar
Dimensions: 600 x 450 x 430 (W x D x H )
Weight: 40 kg
