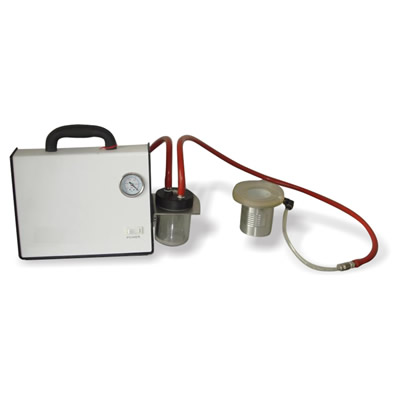

CanNeed-CST-100 Can Seal Tester (Vacuum mode) is for testing the secure seal of the 3-pc cans by applying the vacuum pressure to see whether the cans leak. It can test 1 (one) round can at each test.

Test method: Fill the sample can with water, cover the transparent platen on the open top, turn on the vacuum pump to generate the negative pressure, and then observe whether there are air bubbles on the can body, if the air bubbles come out continually, that means leakage occurred.

CanNeed-CST-100 is applicable for different can sizes. Please order different platens accordingly.

• Max. testing pressure: 0.1Mpa
• Max. sample diameter: 35-170mm
• Dimensions: L340 x W140 xH240 mm
