Usage

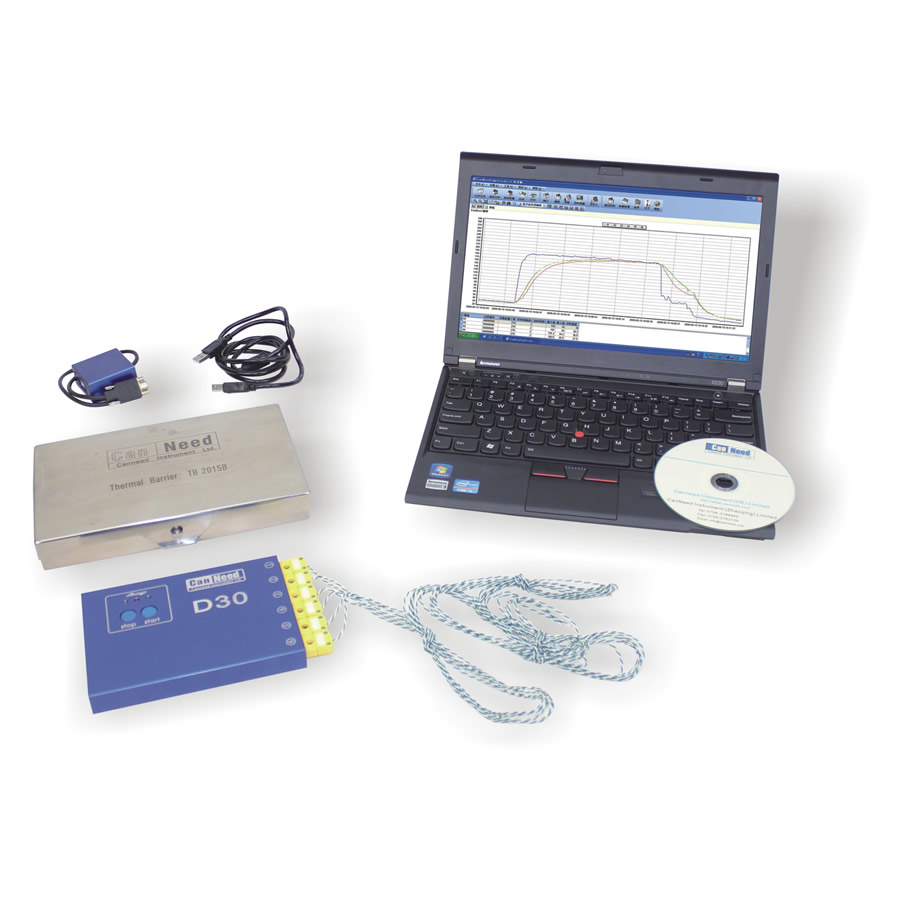

The “CanNeed-TRK-6000 Oven Temperature Tracker” is a professional oven temperature curve inspection system for the coating industry, it is including the data logger, heat insulation case, software (Chinese / English) and thermocouples.

Testing Method

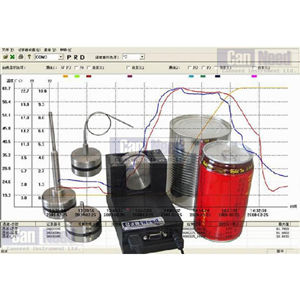

"CanNeed-TRK-6000 Oven Temperature Tracker” is use to pass through the oven with the solidifying products, and record down the real temperature during the process. The logger is in the centre of the system. Heat insulation case is for protecting the logger from over heat by the oven. When passing through the oven, the CanNeed-TRK-600 Oven Temperature Tracker will record down the real time temperature of the solidifying products through the 5 thermocouples which were connected to the products, and one thermocouple is for recording the air temperature of the oven. After the recording process was finished, use the CND_TRK Software to analyze the temperature data and generate the detail reports.

"CanNeed-TRK-6000 Oven Temperature Tracker” is a perfect solution for coating suppliers to show how their products were proper solidified. The accurate product temperature data curve is extremely important for the modern production technics. Manufacturers all over the world are using the oven temperature curve inspection system to improve the product quality, deduct the rate of defective goods and prove the control process is accord with ISO9000. With the CND_TRK Software, the temperature curve inspection has become so easy that it never been!

Technical Data

●D30 Data Logger, 6 channels, Temperature Range: -20 - 1000℃, Accuracy: ±0.5 ℃, K type Electrode, 6 channels and each channel can store 30,000 pieces of data, programmed to start, sampling interval can be set from 0.1 second to 10 minutes.

●Heat insulation case: stainless steel structure, nano-thermal barrier, different dimensions are optional by order. The dimension of TB2015 heat insulation case is: 180 x 140 x 40 (L x W x H), Thermal insulation time: 15 minutes in 200℃.
