Seam-X-Line
X-Ray Automatic Seam Scanner (Non-destructive)

Testing occasions：laboratory

Detection object：Canned beer, drinks，Three-piece can/spray can

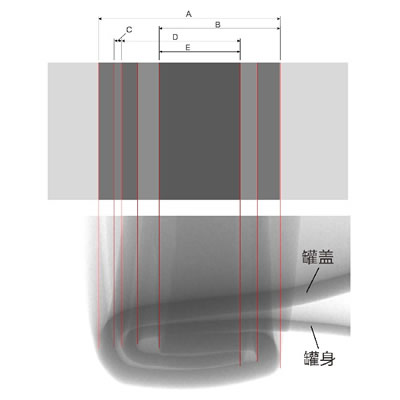

Test items：Double Seam

Consultation

Download Document

Applications

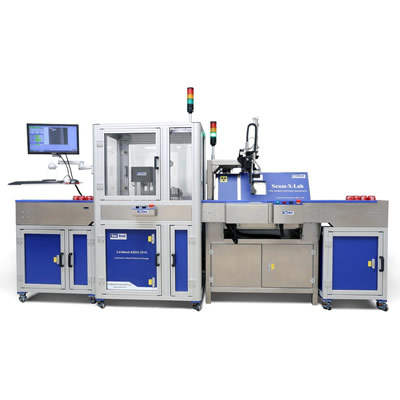

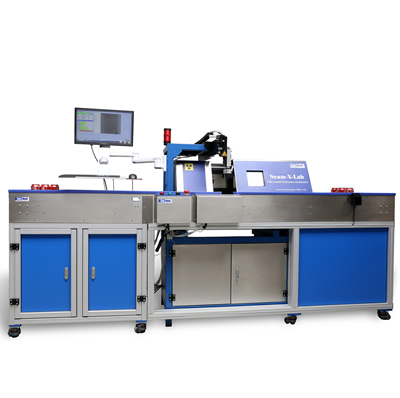

Seam-X®-Line Automatic Seam Scanner adopts non-destructive measurement method to measure the seam quality, suitable for measuring the aluminium cans, steel cans , aluminium-iron composite cans and etc. If configured with the conveyor, it can achieve automatic sampling from the production line. It’s applicable for laboratory or producing department.

Advantages

●　Non-destructive measurement, avoid wasting samples
●　Non-destructive measurement, avoid environmental pollution and save handling charges
●　High sampling frequency, reduce the isolation inferior
●　High sampling frequency, cost saving
●　Can track the chucks corresponding to the unqualified products
●　360-degree fully scan measurement
●　Can be suitable for various types of cans
●　Higher accuracy
●　Avoid manual measurement error
●　Durable
●　Accord with the worldwide safety standards

Technical Parameter

●　Applicable for laboratory or producing department
●　Mode of sampling : Seam-X-Lab manual function; Seam-X-Line automatic function
●　Can open or close the door automatically

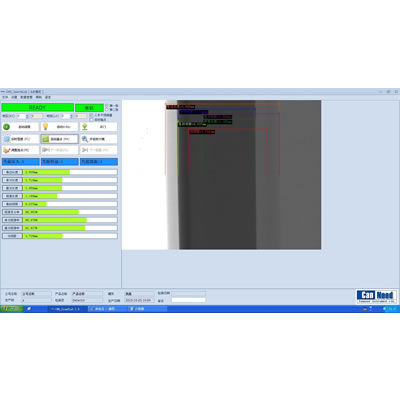

●　Auto measurement
●　Auto judgement
●　360-degree fully scan measurement, no blind spot detection
●　Measuring speed: need one minute for 1 can
●　Load: production time calculation for 22 hours one day; Measuring capacity: 22(h) X 60 (m) ÷ 1 (m) ≈1320 cans/per day.
●　It’s a stable and reliable equipment to the continuous detection.
●　Accuracy: 0.01mm;
●　Seam-X-Lab dimension :900*550*650 mm
●　Seam-X-Lab weight: 300kg；
●　Seam-X-Line dimension :3000*2000*2200mm
●　Seam-X-Line weight: 500kg
