Home / Products List / CanNeed-CBT-CAL Calibration Cell For Buckle Tester

CanNeed-CBT-CAL
Calibration Cell For Buckle Tester

Testing occasions:laboratory
Detection object:Two-piece can/aluminum bottle
Test items:Pressure/pressure resistance

Applications

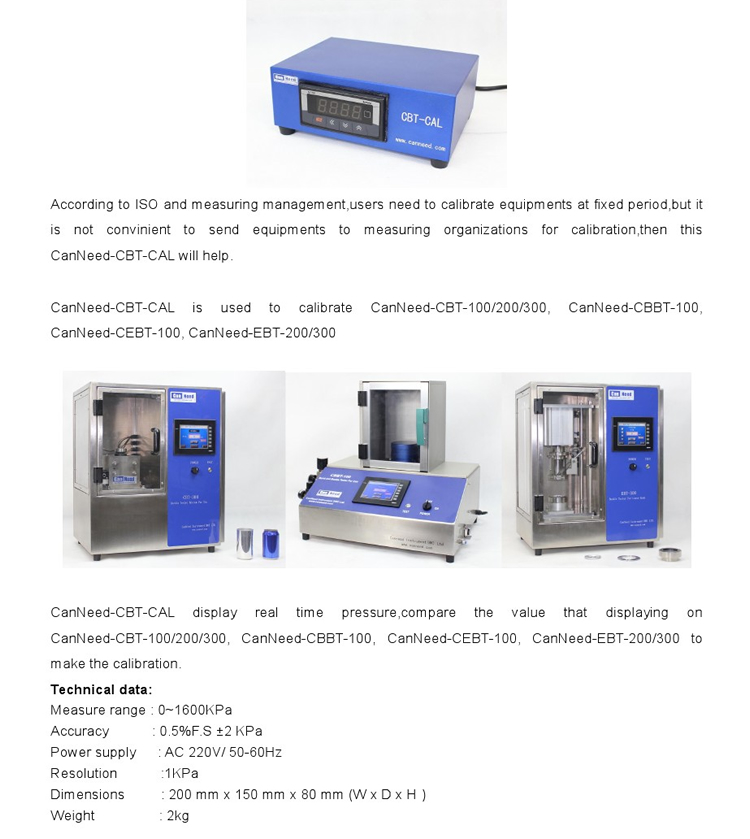

According to ISO and measuring management,users need to calibrate equipments at fixed period,but it is not convinient to send equipments to measuring organizations for calibration,then this CanNeed-CBT-CAL will help.

CanNeed-CBT-CAL is used to calibrate CanNeed-CBT-100/200/300, CanNeed-CBBT-100,CanNeed-CEBT-100, CanNeed-EBT-200/300

CanNeed-CBT-CAL display real time pressure,compare the value that displaying on CanNeed-CBT-100/200/300, CanNeed-CBBT-100, CanNeed-CEBT-100, CanNeed-EBT-200/300 to make the calibration.


Technical Parameter

Measure range : 0~1600KPa
Accuracy : 0.5%F.S ±2 KPa
Power supply : AC 220V/ 50-60Hz
Resolution :1KPa
Dimensions : 200 mm x 150 mm x 80 mm (W x D x H )
Weight : 2kg
