SeamSight®-S-10 A Combination of auto sampling, auto can cutting and auto measurement

Innovative invention of automatic can cutting and measurement seam monitor to replace the old manual can cutting measurement;
Innovative design enables the gauge to perform measurements on seam with minimal effort or Operator intervention. The operator only needs to put in and take out the empty can samples.

Operation Method:
1． Empty the contents from the sample can; rinse the can with clean water and dry the can;
2． Put the can in and close the cover;
3． Start the software, to finish auto cutting and measuring three sections;
4． Take out the can.

Automatic can cutting, automatic measurement; a

uto collect countersink digital indicator data;

ignore the interference of outer light sources; SPC data output;

5 optional formulae for seaming overlapped rate calculating;
customizable report format;

1. Has applied for and been granted a number of patents for inventions;
2. Innovative invention of automatic can cutting and measurement seam monitor to replace the old manual can
cutting measurement;
3. Innovative design enables the gauge to perform measurements on seam with minimal effort or operator
intervention. The operator only needs to put in and take out the empty can samples.
4. Extreme safety and avoids the risk of injury resulted from manual can cutting;
5. High efficiency and auto finishing the whole measurement process;
6. Low noise;
7. High precision, clear display, equipped with the advanced Golden Lens® video capture device;
8. Repeatable and accurate measurement, adopting the auto cutting method to ensure a clear-cut cross-section
without deformation or burrs;
9. Simple, easy-to-use operation;
10. Stable performance and the seam saw made of hard metal alloy is durable;
11. Easy maintenance, drawer type cleaning of iron chippings and shavings, minimal care and maintenance;
12. The client chooses the proper can type along with the order, and chooses one from the following can types:113, 202, 206, 209;
13. Chuck number correlation of test data.

Resolution 0.001mm, Precision 0.005mm,

Magnification factor: 60 ×, Line
positioning magnification factor: 180 ×.

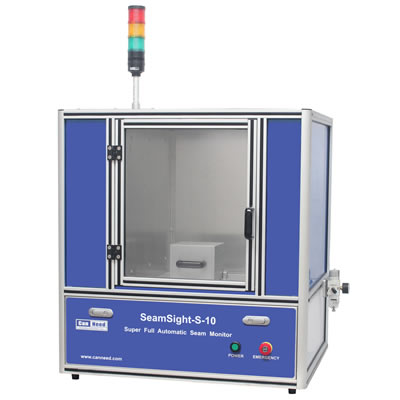

SeamSight^®-S-10

Super Full Automatic Seam Monitor

Full Automatic Seam Measurement System with a combination of automatic can cutter and can tester
l        Easy-to-use， safer， low noise。	l        Higher efficiency， auto can cutting， auto measurement。	l        Reliable， durable， minimal maintenance。	l        Higher accuracy， avoiding human error。

CanNeed and Seam Sight are the registered trademarks of CanNeed Instrument Ltd.

Are you still using the old-fashioned method of manual can cutting to perform measurements on seam?

Advanced method: a combination of can cutter and can tester	Old-fashioned manual can cutting measurement

Features:

1.         Has applied for and been granted a number of patents for inventions;

2.         Innovative invention of automatic can cutting and measurement seam monitor to replace the old manual can cutting measurement;

3.         Innovative design enables the gauge to perform measurements on seam with minimal effort or operator intervention. The operator only needs to put in and take out the empty can samples.

4.         Extreme safety and avoids the risk of injury resulted from manual can cutting;

5.         High efficiency and auto finishing the whole measurement process;

6.         Low noise;

7.         High precision, clear display, equipped with the advanced Golden Lens^® video capture device;

8.         Repeatable and accurate measurement, adopting the auto cutting method to ensure a clear-cut cross-section without deformation or burrs;

9.         Simple, easy-to-use operation;

10.     Stable performance and the seam saw made of hard metal alloy is durable;

11.     Easy maintenance, drawer type cleaning of iron chippings and shavings, minimal care and maintenance;

12.     The client chooses the proper can type along with the order, and chooses one from the following can types: 113, 202, 206, 209;

13.     Chuck number correlation of test data.

Operation Method:

1．  Empty the contents from the sample can; rinse the can with clean water and dry the can;

2．  Put the can in and close the cover;

3．  Start the software, to finish auto cutting and measuring three sections;

4．  Take out the can.

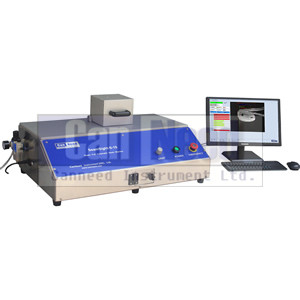

SeamSight®-S-10 Super Full Automatic Seam Monitor, consisting of: 1.         SeamSight-S-10 Super Full Automatic Seam Monitor 2.         CND_SeamSight-S 1.0, Full automatic seam measuring software 3.         SeamSight-S-CAL, Calibration piece2mm 4.         80mm Hard metal alloy seam saws, 2 pc   Recommending to purchase the following item to ensure the seam monitor working 5.         Computer   Optional for higher efficiency: 6.         STG-200-D Seam Thickness Gauge (digital) 7.         CSG-200S Countersink Gauge（with data output button） 8.         TRC-200 Transporter of Computer 9.         CMDI Mitutoyo data line (2 pieces)
