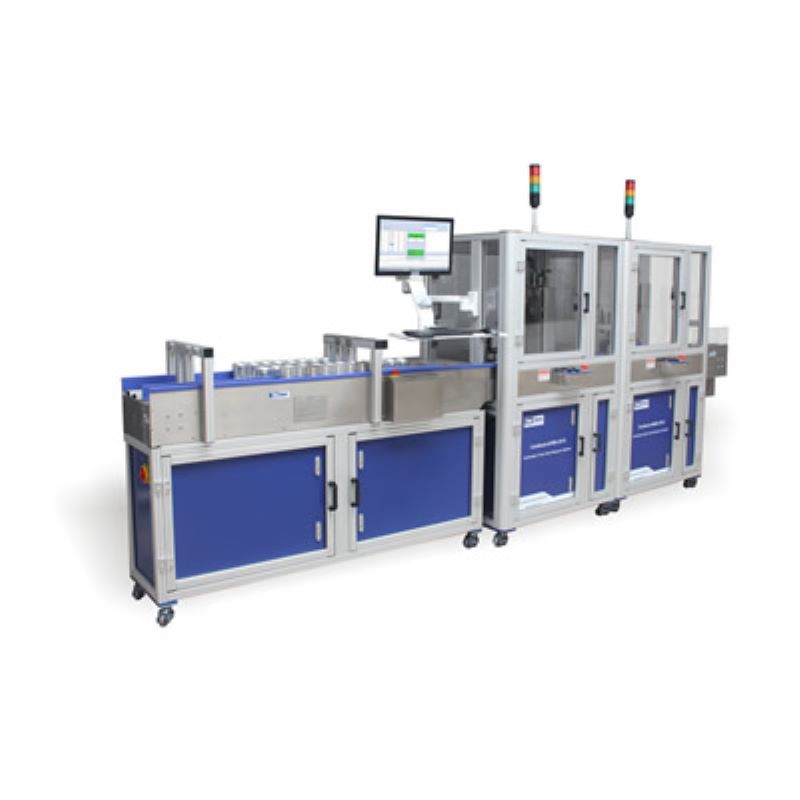

CanNeed-AFMS+ABMS-2010
Automatic Front End and Back End Measure Systems

Testing occasions：Online/packaging line

Detection object：Two-piece can/aluminum bottle

Test items：Dimensions

Consultation

Applications

CanNeed-AFMS-2000 is a full automatic front end measure system with unattended operation. It can measure the wall thickness of upper and middle parts of the can, bottom depth and height of the can. It is a standard instrument for can-making industry which can realize the constant, efficient and automatic inspection for cans.

CanNeed-ABMS-2000 Automatic Can Measure System For Back End is used to measure Flange Width, Can Height & Internal Can Mouth Diameter of 2-pc can by unattended operation. It is a standard instrument for can-making industry which can realize the constant, efficient and automatic inspection for cans.

Advantages

● Automatic unattended on-line measurement
● Auto measurement in all process saving time and cost of HR, avoiding personal error
● Up to 50 user defined measuring points
● Multi-channel sampling device, can measure various cans at one time.
● Database management software for easy data query and statistics.
● User defined report format, suitable style and format for enterprise.

Technical Parameter

● Measurable 2-P Can Dia: 202, 204, 211; volume: 250ml, 330ml, 500ml
● Power：220V/50Hz
● Air pressure: over 4bar
● Appearance: Aluminum structure
● Dimensions: 4300mm X 800mm X 1800mm(L x W x H)
