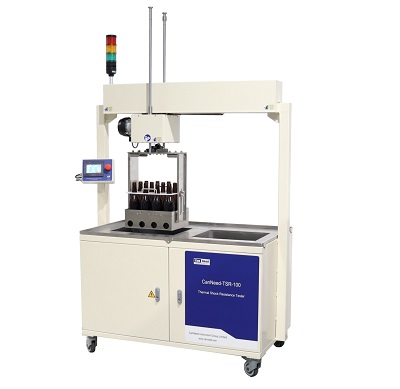

CanNeed-TSR-100-12 Thermal Shock Resistance Tester is suitable for all kinds of beer bottles, wine bottles, beverage bottles, infusion bottles, antibiotic bottles and other glass bottles for heat impact heat shock test. It is a testing instrument needed by each quality inspection center, brewery and glass bottle production enterprises.

Brief introduce：

The heat shock resistance of a glass bottle is the glass bottle ability to withstand a certain temperature impact in a short time. It is a comprehensive index of the intrinsic quality. Factors such as raw materials, melting atmosphere, annealing and mold can all affect this index. This is very important for the production and using enterprises of glass packaging containers, especially for the wine making, beverage and pharmaceutical enterprises that need the glass packaging containers to be sterilized. CanNeed-TSR-100-12 Thermal Shock Resistance Tester is designed according to GB/T 4547-2007 Glass container test method for heat shock resistance and durability and YBB00182003 Heat impact strength test method. The performance is safe and reliable.

Test principle:

Set the temperature of the high temperature tank and low temperature tank of the heat impact tester to make them reach the target temperature difference. Place some samples in the high temperature tank to make them reach the target high temperature, and quickly place the samples in the low temperature tank. Then to inspect the sample damage rate.

1. All stainless steel chassis, waterproof construction, durable.

2. Automatic test, automatic water replenishment. Can set the water temperature difference, hot water soaking time, cold water soaking time and other parameters (Maximum temperature of the hot water tank is 95℃).

3. There is a sound and light alarm prompt during operation to ensure the safety of personnel.

4. The inlet sink of the circulating water pump installed with filter screen to avoid being blocked by foreign bodies.

5. Fast plug-in sample fixture which is adjustable to suitable for a variety of bottles. With the sample drainage plate which is convenience users to observ the test results quickly.

6. Adopt the high-precision temperature sensor and with temperature calibration function.

7. With PLC controller, real-time display of the current temperature, one-button start function.

8. Adopt high power motor and self-locking gear deceleration lifting mechanism which is large bearing and safe. The translation mechanism adopts the linear guide rail and stepping motor to achieve the smooth and fast tank conversion.

9. Using Omron PLC and temperature control system, with famous brand touch screen. intuitive display, simple operation, stable performance. It is easy to operate and with stable performance.

10. Historical data query, can record the time of changing parameters and specific data.
