Home / Products List / CanNeed-VRT-100 Vacuum Resistance Tester

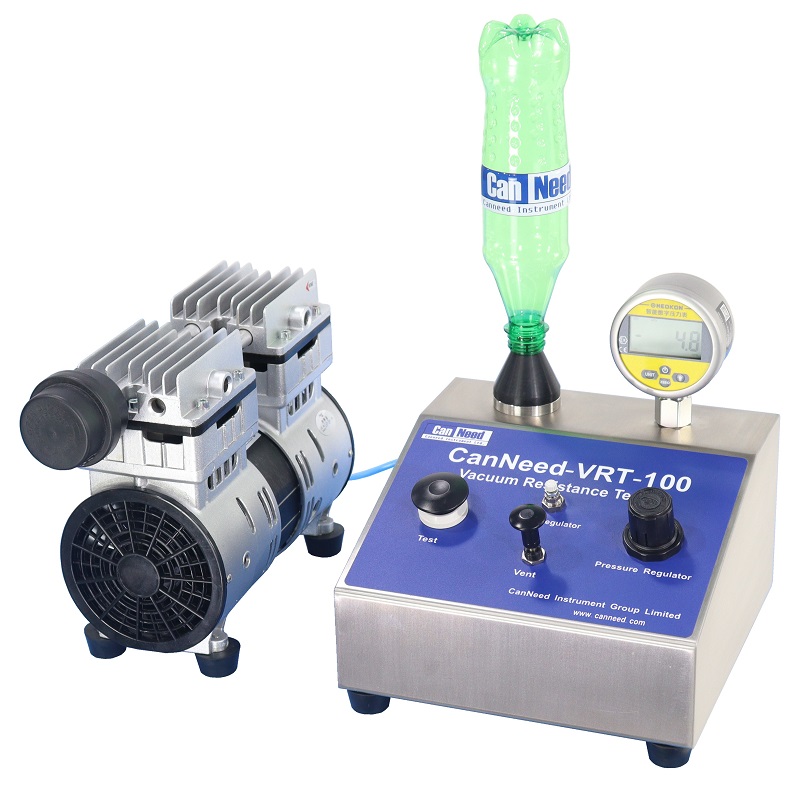

CanNeed-VRT-100
Vacuum Resistance Tester

Testing occasions:laboratory
Detection object:PET bottled drinks
Test items:Pressure/pressure resistance

Applications

CanNeed-VRT-100 Vacuum Resistance Tester is used to test the vacuum deformation resistance of plastic bottles. By vacuuming the bottles to a certain value, so as to intuitively observe whether the bottle is deformed. The precision digital pressure gauge allows users to simply and clearly observe the real-time vacuum value.

Advantages

1.Configure a high-precision pressure regulating valve, allows users to easily adjust the target vacuum value.

2.Digital vacuum pressure gauge allows users to simply and clearly observe the real-time vacuum value.

3.Simple operation, easy adjustment.

4.Compatible with all kinds of PET bottles, no change part is required.

Technical Parameter

Measure range and accuracy

Vacuum pressure range: -90kpa to 0kpa

Accuracy: 0.4%FS

Sample type

For all PET bottle types

Place sample mode

Manual placing samples

Power input

220V/50Hz, with vacuum pump

Tester size, Net weight and Material

L250*W250*H160mm4kg, Chassis Material: Carbon steel painting Q235

Environmental requirement

For indoor use, RH(relative air humidity) ≤ 85%Temperature0℃-40℃
