CanNeed-GPG-100 General Profile Gauge|www.canneed.com

On-Line Automatic X-Ray Seam Scanner

non-destructive measure method

CanNeed-GPG-100
General Profile Gauge

Testing occasions：laboratory

Detection object：Glass bottles/Bottled beer/Wine/Whiskey

Test items：Dimensions

Download Document

Applications

CanNeed-GPG-100 General Profile Gauge is used to measure PET bottles, glass bottles, cans, ends, rolls and chucks.

Advantages

Tests on the bottle size - to prevent errors during producing
Radius (R2.4; R4; R0.5; R2.4)
Arc transition line angle (45 °)
Interval between Bottle cap positioning line and the bottle neck (3.85mm)
Suture burr height of bottle ring
Diameter of the bottle mouth
Monitoring mold wear, determine when to replace
Eradicate bad profile design

Technical Parameter

* Division: 0.01mm or higher
* Angle: 0.1 °

Related Products

Ramp Pressure Tester(automatic)

CanNeed-MBT-300

Hall Effect Thickness Gauge(Magnetic Bottle Thickness Gauge)

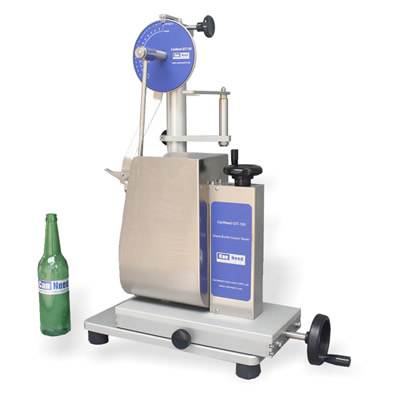

CanNeed-GIT-100

Glass Bottle Impact Tester

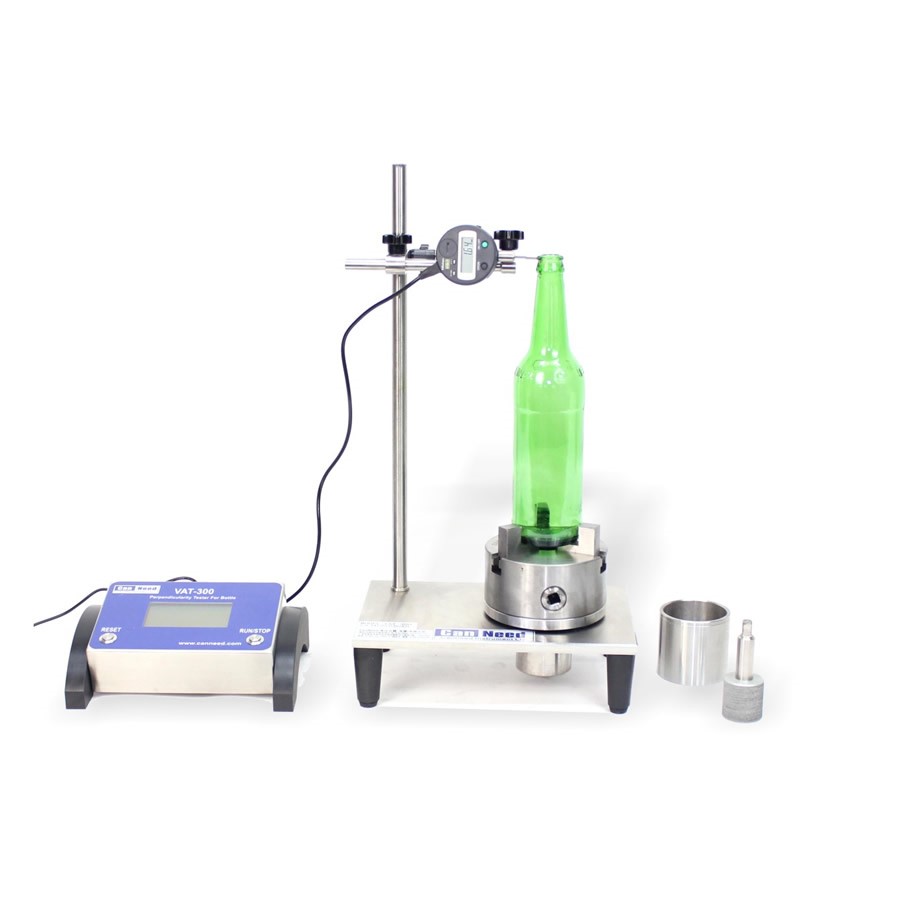

CanNeed-VAT-300
