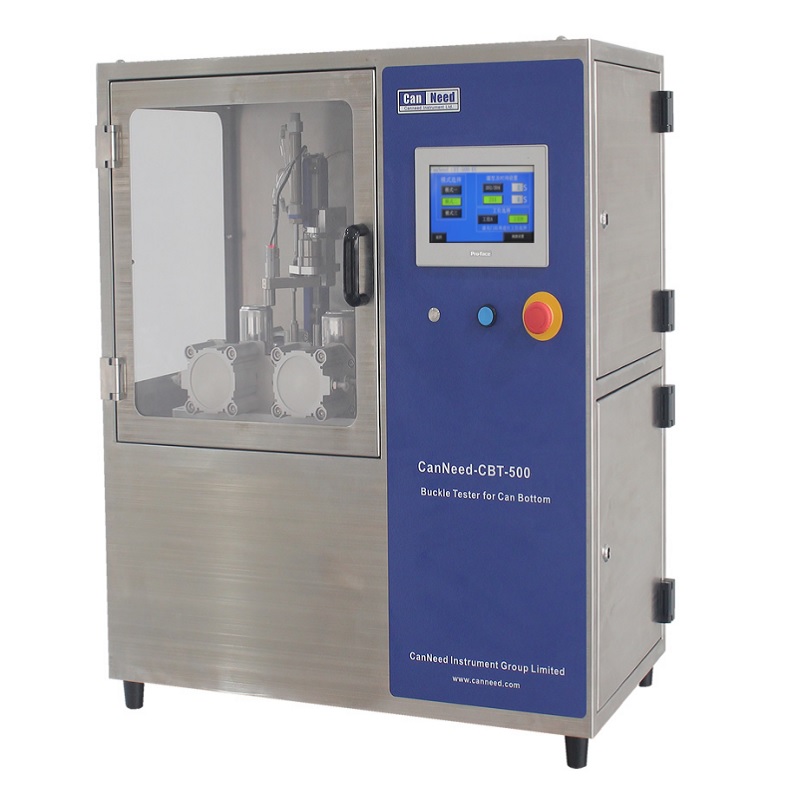

CanNeed-CBT-500 Buckle Tester for Can Bottom determines the exact pressure at which the can bottom begins to buckle respectively the dome reverses. It’s double stations and able to test both trimmed can and necked-in can without replacing the clamps and it’s suitable for cans with different can plugs, body diameters and heights.
1)Double stations and it’s suitable for cans with different plugs, body diameters and heights. Quickly change the cans, no need any change parts;
2)The can body is sealed by rubber column. Able to test both trimmed cans and necked-in cans without replacing the clamp;
3)It is very easy to place and remove samples without pressing and pulling;
4)With dome growth measurement function,10-stage pressure holding test mode can be set to monitor the dome growth;
5)Pressing speed is adjustable and the Pressure curve can be set;
6)Excellent Resolution and Repeatability (R&R);
7)Touch-screen PLC Controlled System, data collected automatically;
8)Measure result can be transferred automatically by RS232,data can be sent to SPC;
9)Configured with pneumatic boosting value inside, able to enlarge the air supply 1-2 times;
10)With calibration interface, easy to calibrate;
11)Automatic calculation of the Max. and Min. measuring value and average after several tests and able to review single result;
12) Mechanical Overload Protection;
13) Full mechanical structure, equipped with security door lock, the protective door can not be opened during the test, to avoid injuries caused by operational errors;
14)Simple operation and maintenance.
Measure Items: |
1.Dome growth pressure resistance 2.Dome reverse |
Range: |
0-900 Kpa(0.9Mpa) |
Resolution: |
1 KPa |
Data Output: |
RS232 |
Air supply: |
0.5 Mpa |
Power supply: |
230V/50Hz |
Dimensions: |
L600*W450*H430mm |
Weight: |
150kg |
