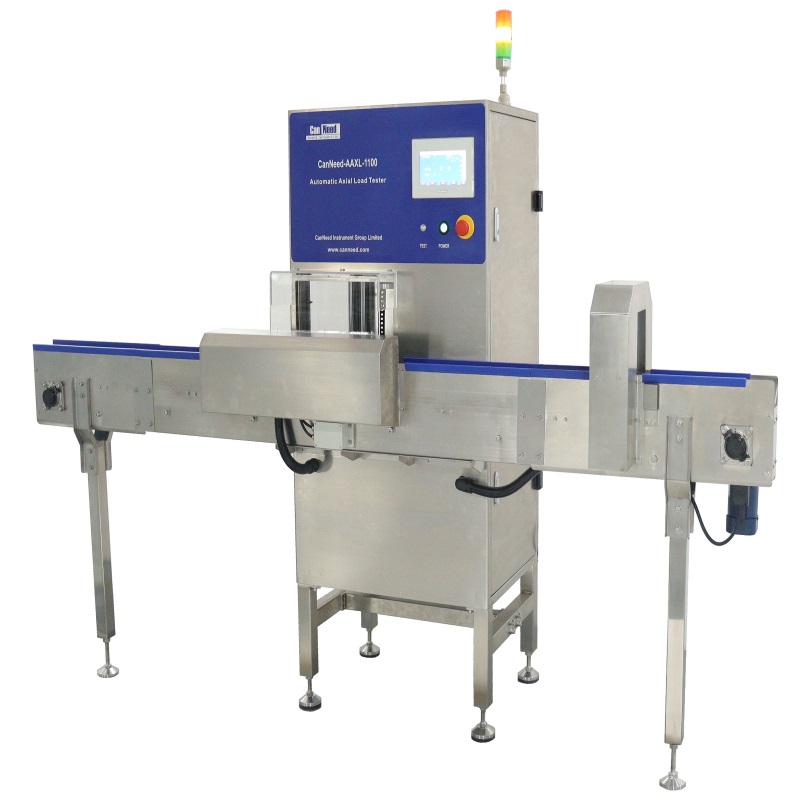

CanNeed-AAXL-1100 is a full automatic can axial load measure system with unattended operation. It can measure the axial load of the 2-piece can. It is a standard instrument for can-making industry which can realize the constant, efficient and automatic inspection for cans.

Measurement method: The instrument adopts the simple-station format, the conveyor line is on the outside of the chassis, and the combined robot is used to grab the sample and feed the sample on the conveyor line. When the tested sample is placed on the testing platform block, the forward and backward mechanism will send the testing platform block into the test part. After the testing sample is in place, the sensor component is pressed down, and the pressurized top plate contacts the sample and continues to press down, exceeding the axial pressure limitation of the sample. As soon as the sample is deformed, the maximum pressure of the sample will show on the display screen.

l The unique design and unusually parallel platens ensure that the sample can is subjected to true axial load during measurement.

l Auto Measure 2-P can axial load.

l Auto measurement in all process saving time and cost of HR, avoiding personal error.

l Sampling method: automatic sampling by conveyor line;

l Secure, durable, easy operation and maintenance.

l Adopt world-class advanced and precise sensor with outstanding accuracy and repeatability;

l Assemble with world-class components

l Automatically display and record the maximum axial force when the sample is crushed;

l PLC touch screen display control;

l Precise servo motor control with stable press speed.

l Equipped with powerful database management software for easy data query and statistics.

l Optional units for user to set by software. (N, Kg, Lb), multiple national language selection.
