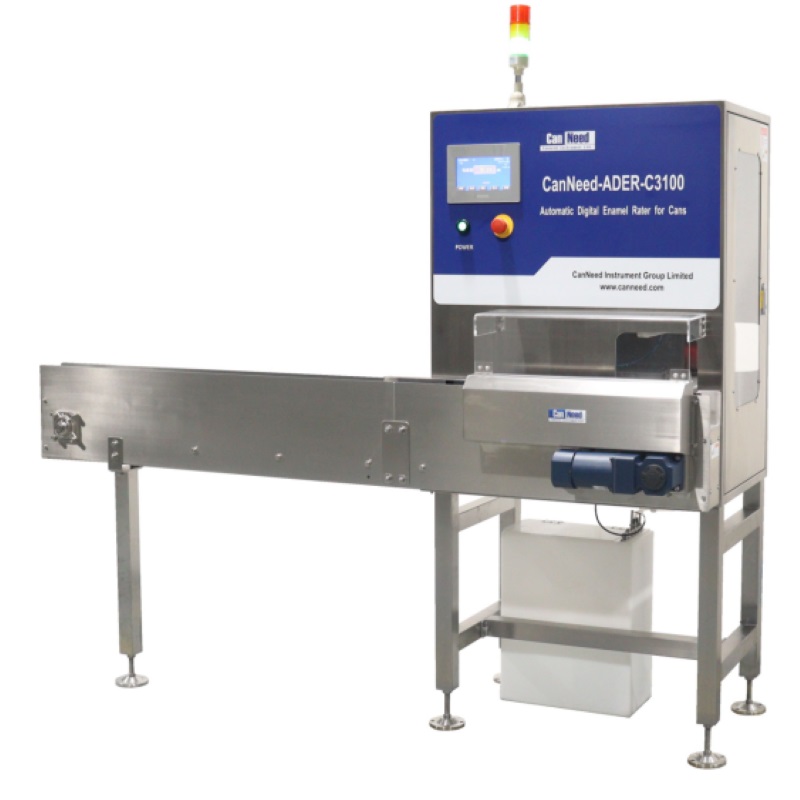

CanNeed-ADER-C3100  is a fully automatic digital enamel rater with unattended operation. It’s is used to measure the coverage, the compactness and the electric current value of the enamel coating inside the beverage cans. The contents will erode the metallic material and affect the quality and storage of products if the enamel coating inside the cans is not integrated. The machine adopted fully automaticinspecting technology, more efficient and more effectively reducing the human errors. It is the standard for evaluating can quality in can-making industry.

Equipped with automatic sampling device,automatically transfer the can under test to the area to be inspected, automatically detect and fill the electrolyte, automatically measure, automatically sort and detect unqualified products, and also provide a sample retention channel for unqualified cans, which is convenient for users to analyze unqualified cans. The database software saves the measurement results and automatically transmits them to the SPC system.

Measuring process：

1.Prepare the samples and put them into the sample channel.

2.Select the measurement template of the corresponding.

specification in the software, and enter the number of samples to be measured.

3.Click the measurement button, automatic measurement is completed.

4.After the test, automatic sorting unqualified samples, equipped with retention area for unqualified samples.

l Equipped with single-channel automatic sampling device, can test a variety of can samples at one time;

l Patented design liquid level control system, automatic infusion of electrolyte and accurate recognition of liquid level;

l Auto measurement in all process, saving time and cost of HR, avoiding personal error;

l Auto calibration function, can customize the calibration time;

l Auto monitoring, if beyond the certain set range, auto alarm;

l Automatic sorting unqualified samples, equipped with retention area for unqualified samples, it is convenient for users to analyze defect products;

l Compatible for testing 90-200mm samples without changing the clamps;

l Simply and easy change the clamps to meet the 50-73mm can diameter samples’ demand;

l Test 4 sample cans per minute;

l The use of world-class components, durable, stability and repeatability, the factory has passed the R&R test;

l Simple operation and maintenance;

l Assemble with HD camera for convenient after-sales service via remote connection;

l Test result can be sent to SPC system;

l Database management software for easy data query and statistics;

l Can review single measure result after test for various cans, auto calculate the average, maximum and minimum values;

l Data can be stored to Excel form;

l User-defined report format, suitable for style and format of enterprises;
