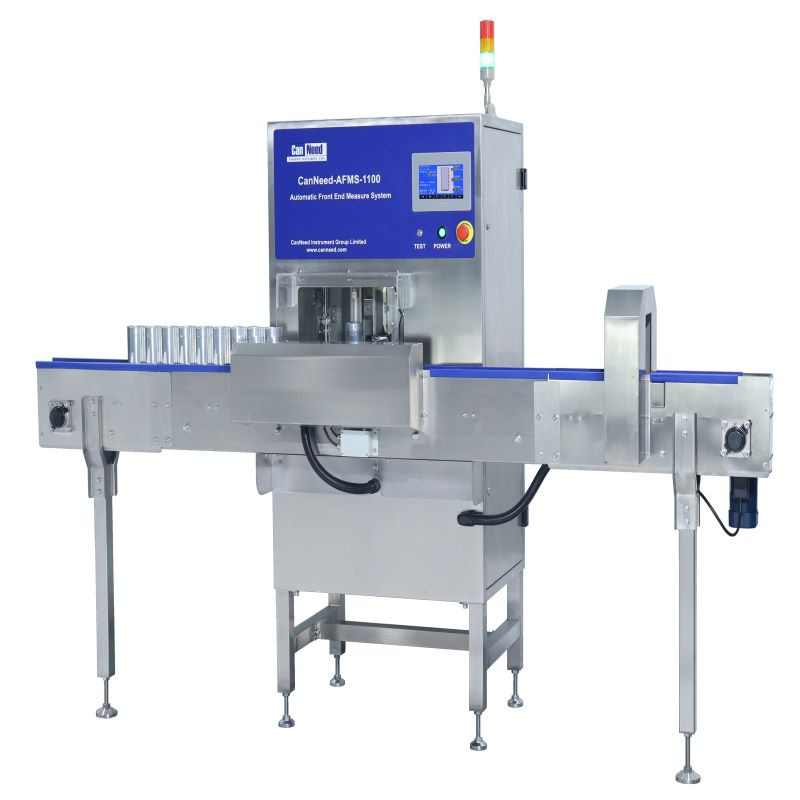

CanNeed-AFMS-1100 Automatic Front End Measure System is a fully automatic measuring system with unattended operation. It can measure the wall thickness of upper and middle parts of the can, bottom depth and height of the can. It is a standard instrument for can-making industry which can realize the constant, efficient and automatic inspection for cans.

Testing process:

1. Automatic sampling device, the sample cans will be automatically transmitted to the waiting area to be inspected;

2. The rotary robot arm will place the sample cans to the testing station, then the centering mechanism will quickly locate the sample cans;

3. The rotating mechanism drives the sample can to realize 360 degree multi-point sampling according to the user-defined angles (testing points can be set to 1-50 per rotation), and automatically measure the dome depth, can height, and the wall thickness ;

4. Tested data can be auto-stored by PLC and transferred to SPC systems automatically.

l Contact measuring mode, with touch screen and PLC control.

l Can be equipped with single conveyor lane (three lanes by custom option).

l Fully automatic measurement, free up the testing time for inspectors and avoid manual error.

l Can place 12 pcs of sample cans for testing one time.

l NG sample retention, 4 sample cans(211) can be retained.
