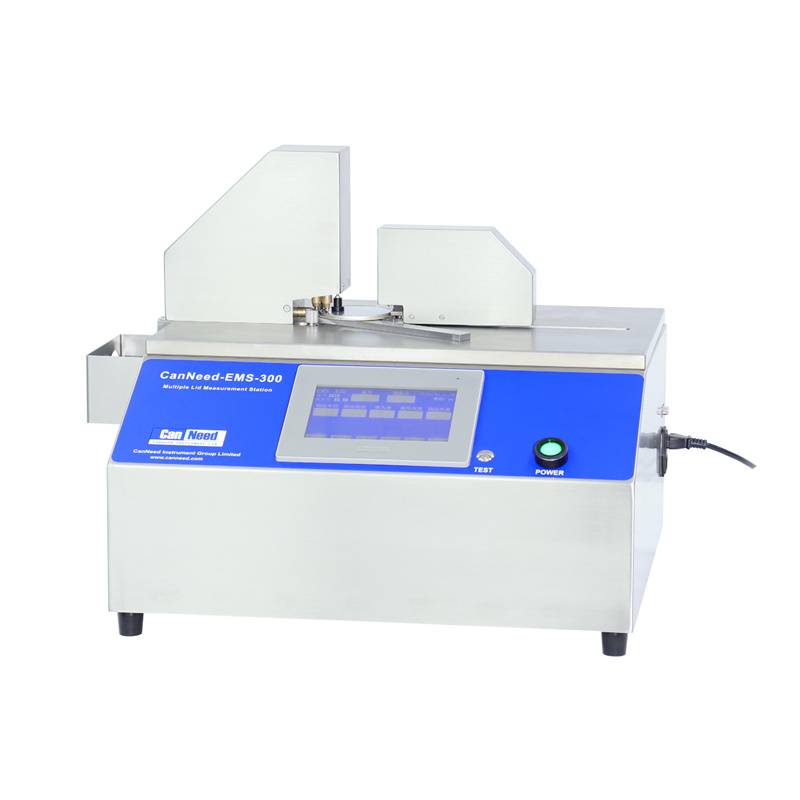

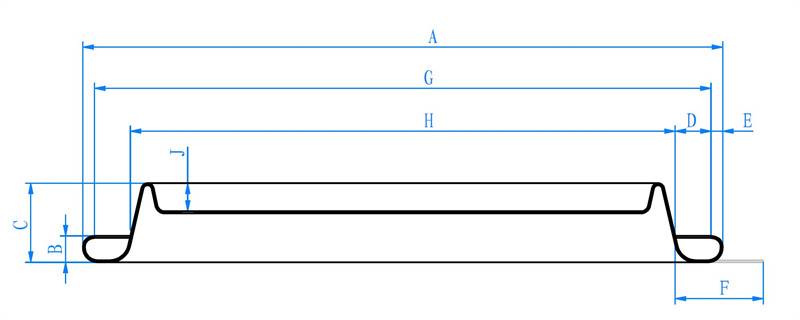

CanNeed-EMS-300 Multiple Lid Measurement Station is used to measure the parameters of the can end as follows:

A.End curl outer diameter
B.End curl height
C.End countersink
D.End curl opening
E.End curl width
F.End curl length
G.End curl inner diameter
H.Chuck adapting diameter
J.Thimble depth

● Automatic data record. Records and saves the measurement automatically to facilitate review.

● Automatic data transfer to SPC. Can connect to SPC based on customers’ requirements, easy to directly import data for quality management.

● PLC touch screen control design. Convenient for customers to set parameters and use easily.

● No change parts or adjustment necessary.

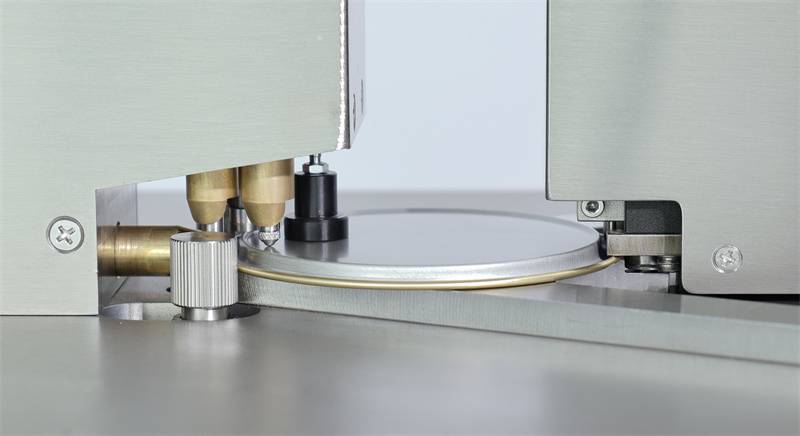

● Auto-rotate to measure multiple points.

• Sample Ends Dia.: Outer Dia.50-230mm(900 End）
• Accuracy: ±0.02
• resolution: 0.01
• Units: mm\inch
• Dimension: (L×W×H)660X480X500mm
• Weight: About 65KG
• Power supply: AC220V50Hz
