Home / Products List / CanNeed-CSS-2000A Seam Saw for Aerosol Cans

CanNeed-CSS-2000A
Seam Saw for Aerosol Cans

Testing occasions:laboratory
Detection object:Three-piece can/spray can
Test items:Double Seam

Applications

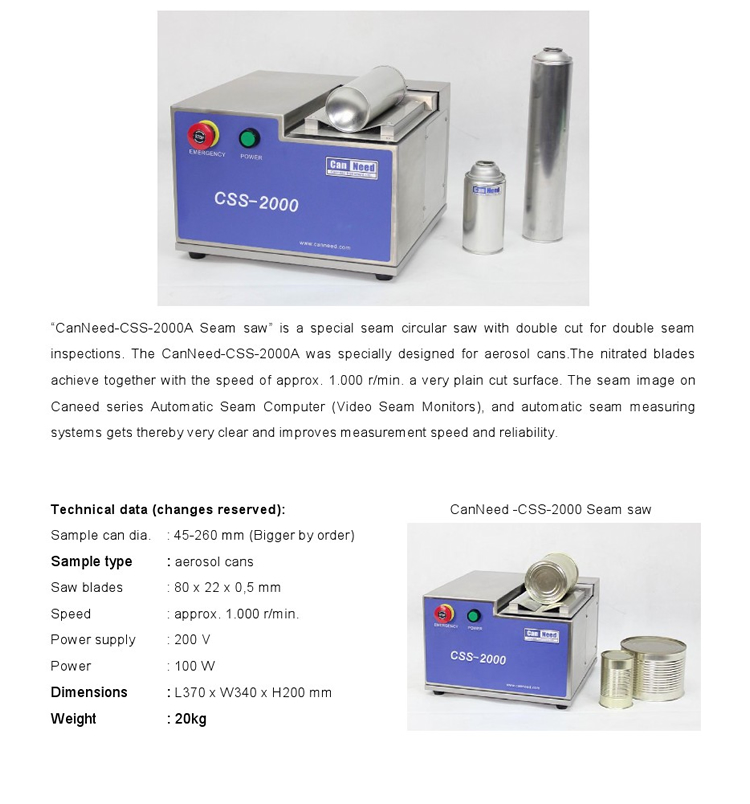

The CanNeed-CSS-2000A Seam Saw is a special seam circular saw with double cut for double seam inspections. The CanNeed-CSS-2000A was specially designed for aerosol cans.The nitrated blades achieve together with the speed of approx. 1.000 r/min. a very plain cut surface. The seam image on Caneed series Automatic Seam Computer (Video Seam Monitors), and automatic seam measuring systems gets thereby very clear and improves measurement speed and reliability.

Technical Parameter

  • Technical data (changes reserved):
  • Sample can dia. : 45-260 mm (Bigger by ordering)
  • Sample type : aerosol cans
  • Saw blades : 80 x 22 x 0,5 mm
  • Speed : approx. 1.000 r/min.
  • Power supply : 200 V
  • Power : 100 W
  • Dimensions : L370 x W340 x H200 mm
  • Weight : 20kg
