Usage

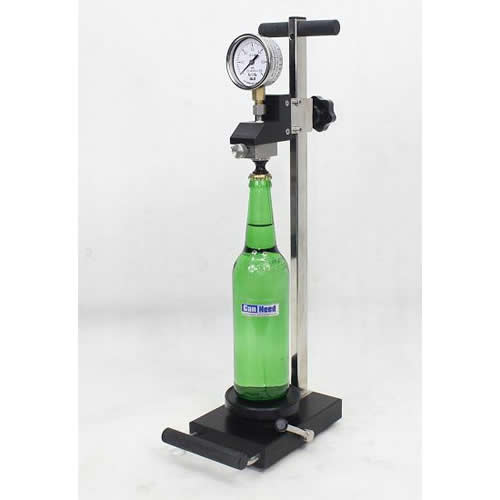

The “CanNeed-Inpack 3000 CO2 Tester and Pressure Tester” is used to measure the CO2 content in carbonated beverages filled in glass and PET bottles and cans. It is corresponding to “GB/T 4928 – 2001 Brewing Analysis Methods” and “GB/T 10792 – 1995 Carbonated Beverage Analysis Methods”. Therefore, the machine is widely used by Quality and Technical Supervision Bureau and beverage enterprises.

CanNeed-Inpack 3000 can measure the total pressure in brewery or beverage. Applied with temperature measurement, the CO2 content is determined by means of the CO2 slide rule or temperature/pressure relationship charts. It is applicable to the bottles or cans with different sizes.

Advantages

Equipped with a pressure manometer of high accuracy and a thermometer of standard, it can ensure the accuracy and reliability of the results.

If used together with CanNeed-IAM-30 Air Meter, it can test CO2 content as well as the air content.

Technical Data

CO2 measuring range: 0 – 4.00% v/v (0.8% w/w)
Pressure measuring range: 0 - +0.6 Mpa
Pressure resolution: 0.01Mpa
Temperature measuring range: 0 - +50 ℃
Temperature resolution: 0.1℃

Sample capacity:
Height: 50 - 360mm
Bottom diameter: 92 mm max.

*Combined with the CanNeed-IAM-30 Air Meter, it is able to measure the air content (Optional)
Air measuring range: 0-30ml; Resolution: 0.05ml
