CanNeed-IDG-100 CanNeed-IDG-100/200/300 Can Internal Diameter Gauge|www.canneed.com

CanNeed-IDG-100
CanNeed-IDG-100/200/300 Can Internal Diameter Gauge

Testing occasions：laboratory

Detection object：Two-piece can/aluminum bottle，Three-piece can/spray can，Canned beer, drinks

Test items：Dimensions

Consultation

Download Document

Applications

The “CanNeed-IDG-100 Internal Diameter of Can” is used to measure the internal diameter of small cans, such as 200, 202, 206, 209.
The “CanNeed-IDG-200 Internal Diameter of Can” is used to measure the internal diameter of larger cans. According to clients’ request, CanNeed-IDG-200 can be made to measure 2 to 3 different sizes of cans at the most at the same time. Note: The difference between the internal diameters of the two cans must be over 10mm.
When placing the order, please indicate the internal diameters of the cans, such as 202 neck-in cans, 206 neck-in cans.
With the Mitutoyo 0.01mm resolution digital indicator.
If purchased the adapter and cable, the gauge can be connected to a computer or SPC system for data collection.

Technical Parameter

Resolution: 0.01 mm

Related Products

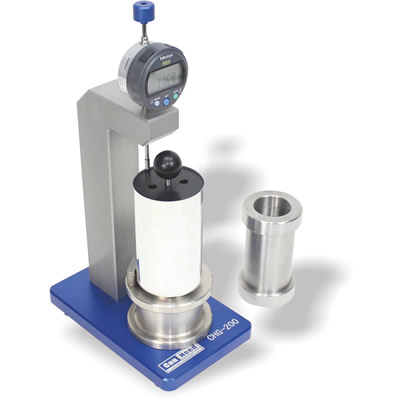

CanNeed-CHG-200

Digital Can Height Gauge

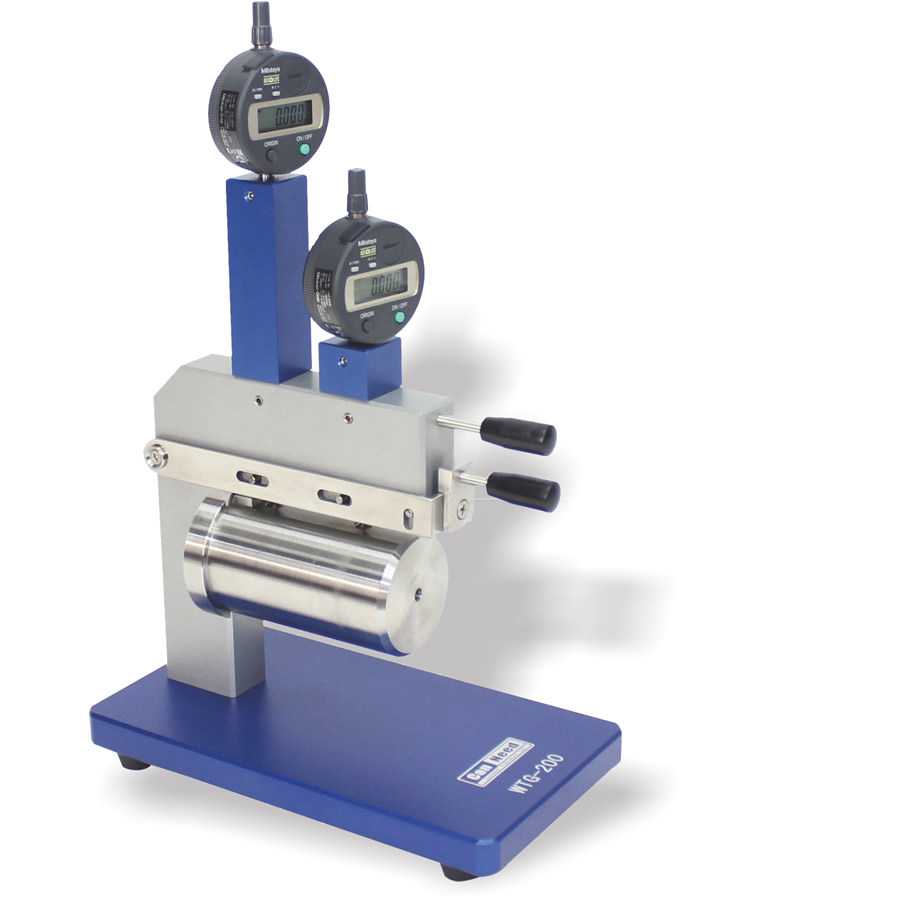

CanNeed-WTG-200
