Product Classification : All Products
|
|
RPG-100 Roll profile Gauge
|
The CanNeed RPG-100 is able to scan profiles of seaming Rolls and Chucks (or other tooling - including carbide and ceramic tools) easily and quickly. The system can be used for acceptance testing for new seaming rolls or chucks, for quality assurance purposes and for stress analysis. Monitor tooling wear to replace rolls and chucks only when they need to be replaced
|
|
|
CanNeed-CSS-100B Anti-noise Seam Saw
|
CanNeed-CSS-100B Anti-noise seam saw is provided with an anti-noise design and a special guide for 2- and 3-piece cans (65 mm dia.). Special seam circular saw with double cut for can double seam inspections. The CanNeed -CSS-100B was specially designed for 2 and 3-piece cans.
The nitrated blades achieve together with the speed of approx. 1.000 r/min. a very plain cut surface. The seam image on VSM 6A Automatic Seam Computer (Video Seam Monitors), and automatic seam measuring systems gets thereby very clear and improves measurement speed and reliability.
|
|
|

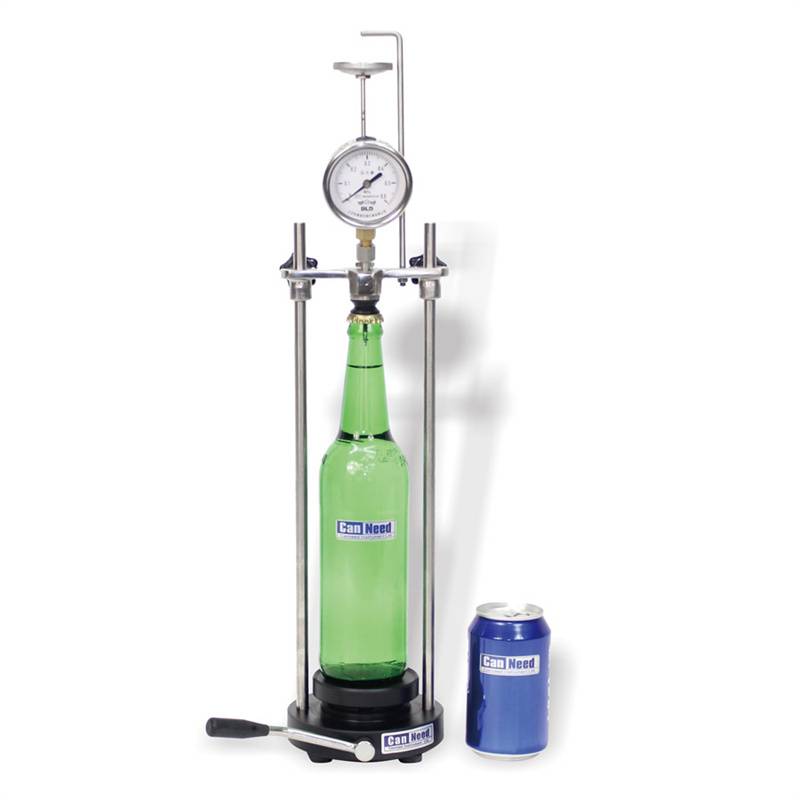

CanNeed-CAN-7001/7002 CO2 Tester and Pressure Tester
|
CanNeed-CAN-7001, CAN-7002 CO2 Tester and Pressure Tester is for measuring the CO2 content in carbonated beverages filled in glass and PET bottles or cans. It is designed according to ASBC Theory of American Society of Brewing Chemists, corresponding to “GB/T 4928 – 2001 Brewing Analysis Methods” and “GB/T 10792 – 1995 Carbonated Beverage Analysis Methods”. Therefore, the machine is widely used by Quality and Technical Supervision Bureau and beverage enterprises.
It is applicable to the bottles or cans with different sizes. After the sample is pierced, the pressure is read on the pressure gauge as soon as the equilibrium pressure is achieved. The CO2 content is determined by means of the CO2 slide rule or temperature/pressure relationship charts.
|
|
|
CanNeed-DHG-300 Digital Can Height Gauge
|
The “DHG-300 Digital Can Height Gauge” which is equipped with a measuriin plaftorm can be used to measure the height of Bottle and Can. The gauges can be connected to a computer or SPC system via the adapter and cable.
|
|
|
TLT-200 Top Load Tester
|
TLT-200 Top Load Tester for PET Bottle is used for top load strength, top load deformation test as well as bottle flat and lateral pressure test. The testing results provide important evidence for quality controlling and improving. It is easy and convenient to operate and maintain TLT-100.
|
|
|
EMS-200 Multiple Lid Measurement Station
|
The CanNeed EMS-200 Multiple Lid Measurement Station is for measuring the End Curl outer diameter, End Curl height and Countersink. Place the ends on the testing platform, select the measure points, then press "start". The three pneumatic controlled sensors will start to measure the sample ends automatically at the same time. The sample ends will be rolled automatically to change the measure points. For every circle, the amount of measure points can be set from 1 to 50. Measurement results can be exported by the RS232 data wire. Calibrate by the standard gauge and controlled by the touch-screen PLC system.
|
|
|
CEBT-100 Buckle Tester for Can and End
|
The "Canneed CEBT-100 Buckle Tester for Can and End" determines the exact pressure at which the Can and End begins to buckle. With 4 measuring mode:Buckle Bottom For Can (Including straight wall cans, necked-in cans),Peak Test For Free End, Missile Test for Free End and Peak Test for Seamed End. 1. Buckle Bottom For Can (Including straight wall cans, necked-in cans) 2. Peak Test For Free End 3. Missile Test for Free End 4. Peak Test for Seamed End
|
|
|
CanNeed-CSG-200 Countersink Gauge (Digital)
|
The CanNeed-CSG-200 Countersink Gauge (digital) is a Digital gauge for measuring Countersink depth parameters (the depth of beader of can). With the Mitutoyo 0.01mm Resolution Digital Indicator.
The gauge can be connected to a computer or SPC system via the adapter and cable, so that to avoid the manual recording and personal error. The gauge can also combine with Canneed Seam Monitors and import the measurement data into computer.
|
|
|
CVG-200 Canners Vacuum Gauge
|
the Canneed "CVG-100 and CVG-200 Canner's Vacuum Gauge", Used to measure the vacuum pressure of seamed cans. The gauge is placed on top of the can and the piercing needle is forced through the top of the can. The rubber collar forms a temporary seal to allow for measurement.
|
|
|
CVG-100 Canners Vacuum Gauge
|
the Canneed "CVG-100 and CVG-200 Canner's Vacuum Gauge", Used to measure the vacuum pressure of seamed cans. The gauge is placed on top of the can and the piercing needle is forced through the top of the can. The rubber collar forms a temporary seal to allow for measurement.
|
|
|
CanNeed-AS-100 AutoShaker Beverage CO2 Calculator
|
The “AS-100 AutoShaker Beverage CO2 Calculator” is a patented instrument which is for calculating the carbon dioxide content in the filled beverage in glass/PET bottles and cans. The simple operation which guarantees high reproducibility has led to its becoming a significant element of Quality Assurance in the drinks industry.
Attributes:
- Rotate by motor, avoid shaking by hand, guarantees high reproducibility
- With protection drum, more safety
- Measurement just need 3 minutes
- Simple operation
- Applicable to most common glass bottle PET bottle and cans.
|
|
|
CanNeed-VAT-300 Perpendicularity tester for bottle
|
CanNeed-VAT-300 Perpendicularity tester for bottle (Auto) is for measuring the perpendicularity deviation of glass bottles.
Clamping a sample and rotating a circle, the vertical axis deviation can be read directly in the digital automatic calculator.
|
|
|
CanNeed-STR-100 Seam Stripper
|
The CanNeed-STR-100 Can Cover Trim Stripper is designed to quickly and accurately cut can cover trim in place for inspection of cover hook wrinkles and tightness. The CanNeed-STR-100 is also used for boiling tests where a large number of sample cans need to be cut away from the lid to observe the inside of the can.
|
|
|
CanNeed-CAN-1050D Digital Can Closing Force Gauge
|
CanNeed-CAN-1050D Can Closing Force Gauge is for measuring the force of seaming head of the seaming machine. By using CanNeed-CAN-1050d, producers can avoid product defects caused by over plating: sharp edge, seam breakage, body deformation, body hook overlength, over large countersink and so on. In the meantime, producers can also avoid product defects caused by too small pallet lift force: slippery cans, too short hook and so on.
|
|
|
CanNeed-DER-4 Digital Enamel Rater
|
The CanNeed-DER-4Digital Enamel Rater is able to detect the exposed metal position more easily compare to the former models. The reformative electronic design makes it more sensitive, reliable and accurate. The anticorrosion characteristic of the enhanced can body support is ensured its durability. The film coated buttons are more durable and with better corrosion resistance.
CanNeed-DER-4 is the industry standard. The new CanNeed-DER-4Enamel Rater instrument test the coverage of the enamel coating inside food and beverage cans, aerosol-cans and also different kinds of ends. It displays an index of the amount of metal exposed by incomplete enamel coverage on a clear, easily read digital LED.
|
|
|
STT-100 / STT-100S Digital Torque Tester
|
The cap closing and opening force of the bottled products is an important controls parameter in the manufacturing technique. Whether the torque value is appropriate has great effect to the delivery and consumers. If the torque value is too small, leakage may occur, if the torque is too large, the consumers may hardly open it.
|
|
|
EMD-400 End Measure Desk
|
The CanNeed "EMD-400 End Measure Desk" was developed according to the long-term practical experience, it can be used next to the production line or in the laboratory. The EMD-400 measures the End Curl Height, Curl Diameter, End Curl Width and Countersink. It is equipped with Mitutoyo digital indicator. If purchased the adapter and cable, the gauge can be connected to a computer or SPC system for data collection.
|
|
|
CBBT-100 Burst and Buckling Tester for Can
|
In order to control the cost and quality,it is necessary for 2 piece can manufacturers to buy an equipment which can accurately test the compression strength and burst strength.
The CanNeed CBBT-100 is used to test the pressures values of 2 piece cans:buckle value,burst value.Record the 2 values automatically.
It can test different diamter and height of cans with different clamps.
|
|
|
ALT-600 Leak Tester for Aerosol can
|
The “Canneed ALT-600 / ALT-800 Leak Tester for Aerosol can” is used for testing the leakage of Aerosol cans. ALT-600 can test 6 cans at the same time, and ALT-800 can test 8. The permeability tester for aerosol cans blows up the cans up to a maximum of 10 bar and submerges them under water. At the leaking spots of the can then visible air-bubbles escape. A special clamping system enables to measure different diameters and heights with one device. Two pressure levels can be set with the tester. The first is meant to hold and seal the can, the second step sets in when the mount with the cans has reached the lowest position. The maximum test pressure is 10 bar.
|
|
|
CanNeed-STR-100 Seam Stripper
|
The CanNeed-STR-100 Can Cover Trim Stripper is designed to quickly and accurately cut can cover trim in place for inspection of cover hook wrinkles and tightness. The CanNeed-STR-100 is also used for boiling tests where a large number of sample cans need to be cut away from the lid to observe the inside of the can.
|
|
|
CanNeed-ALT-100 Leak Tester for Aerosol can
|
CanNeed-ALT-100 Leak Tester for Aerosol can is used for testing the leakage of Aerosol cans in a water bath. The can is freely suspended and submerged into the water. At the same time it is subjected to pressure and leaks are revealed by air bubbles. Test pressure 8 - 10 bar. The test procedure is performed semi-automatically. The tester is suitable for all aerosol can diameters. The maximum can height is 300 mm.
|
|
|
Inpack 3000 CO2 Meter
|
The “Inpack 3000 CO2 Meter “ is used to measure the CO2 content in carbonated beverages filled in glass and PET bottles and cans.
The “Inpack 3000 CO2 Meter “ is in practice used in two ways. Either the bottle or can is directly placed onto the instrument and then shaken by hand. Or the bottle or can is shaken until equilibrium pressure has been achieved, followed by placing it onto the instrument.
|
|
|
CanNeed-CSG-200 Countersink Gauge (Digital)
|
The CanNeed-CSG-200 Countersink Gauge (digital) is a Digital gauge for measuring Countersink depth parameters (the depth of beader of can). With the Mitutoyo 0.01mm Resolution Digital Indicator.
The gauge can be connected to a computer or SPC system via the adapter and cable, so that to avoid the manual recording and personal error. The gauge can also combine with Canneed Seam Monitors and import the measurement data into computer.
|
|
|
CanNeed-CAN-10774 Planer and Shaper Pin Height Gauge
|
CanNeed-CAN-10774 The Pin Height Gauge is commonly used in the initial setup of the seamer to ensure double seaming
performance and air removal.
All working surfaces are hardened and accurately ground.
|
|
|
CanNeed-BWTG-200 Bottle Wall Thickness Gauge
|
"BWTG-200 Bottle Wall Thickness Gauge" is for measuring the bottle wall thickness of glass bottles, applicable for the beer bottles.
BWTG-200 is using the Mitutoyo digital indicator.
|
|
|
BMS-1000 Automatic Can Measure System for Back End
|
The CanNeed "BMS-1000 Automatic Can Measure System For Back End" is used to measure Flange Width, Can Height & Internal Diameter of 2-pc can. It’s designed by practical experience and applied to back end inspection. It can be adjusted rapidly and applicable for various can height.
|
|
|
CanNeed-SM-24 Electric Belt Drive Seamer
|
The Canneed "SM- 24 Electric Belt Drive Seamer" (Desktop model) enables the users to do more lab tests. Such as, adjusting some technique, enhancing the products quality, test the empty cans and free ends, to insert a temperature logger into a can before running a temperature monitoring.
|
|
|
CanNeed-CAN-5001 CO2 Tester and Pressure Tester
|
The CanNeed-CAN-5001, CAN-5002 CO2 tester and Pressure Tester are for measuring the CO2 content in carbonated beverages filled in glass and PET bottles or cans. It is designed according to ASBC Theory of American Society of Brewing Chemists, corresponding to “GB/T 4928 – 2001 Brewing Analysis Methods” and “GB/T 10792 – 1995 Carbonated Beverage Analysis Methods”. Therefore, the machine is widely used by Quality and Technical Supervision Bureau and beverage enterprises.
|
|
|
PETG-100d PET Bottle Embryo Thickness Gauge (Digital)
|
The “PETG-100d PET Bottle Embryo Thickness Gauge (Digital)” is used to measure the embryo thickness of PET Bottle.
Easy-handling design and invariablenes measure pressure let operators get the accurate measure result easily.
|
|
|
PETG-200 PET Bottle Embryo Thickness Gauge (Digital)
|
"PETG-200 PET Bottle Embryo Thickness Gauge" is used to measure the embryo thickness of PET Bottle.
Easy-handling design and invariablenes measure pressure let operator get the accurate measure result easily.
|
|
"If you can not find the product you need, please contact us or leave a message."
|
|
