Product Classification : All Products
|
|
CSM-208, CSM-207 Can Seam Micrometers (Fine tuning)
|
The CanNeed CSM series Can Seam Micrometers are use for measuring the seam thickness and length. The fine tuning function helps to avoid the deviation caused by over rotation.
CSM-208 is applicable to measure the seam thickness and length of flat bottom straight wall cans.
CSM-207 is applicable to measure the seam thickness and length of aerosol cans and necked-in cans.
|
|
|
|
CSM-208, CSM-207 Can Seam Micrometers (Fine tuning)
|
CanNeed CSM series Can Seam Micrometers are use for measuring the seam thickness and length. The fine tuning function helps to avoid the deviation caused by over rotation.
CSM-208 is applicable to measure the seam thickness and length of flat bottom straight wall cans.
CSM-207 is applicable to measure the seam thickness and length of aerosol cans and necked-in cans.
|
|
|
SCG-200 Seamer clearance Gauge
|
|
The CanNeed SCG-200 Seamer clearance Gauge, a quick and accurate way to set up seamers.
To measure the roll height off the chuck and the lateral distance between the roll and chuck.
|
|
|
CanNeed-IDG-100/200/300 Can Internal Diameter Gauge
|
The “CanNeed-IDG-100 Internal Diameter of Can” is used to measure the internal diameter of small cans, such as 200, 202, 206, 209.
The “CanNeed-IDG-200 Internal Diameter of Can” is used to measure the internal diameter of larger cans. According to clients’ request, CanNeed-IDG-200 can be made to measure 2 to 3 different sizes of cans at the most at the same time. Note: The difference between the internal diameters of the two cans must be over 10mm.
When placing the order, please indicate the internal diameters of the cans, such as 202 neck-in cans, 206 neck-in cans.
With the Mitutoyo 0.01mm resolution digital indicator.
If purchased the adapter and cable, the gauge can be connected to a computer or SPC system for data collection.
|
|
|
GNG-100 ‘Go-no-Go’ Gauge
|
Quality control gauges for checking the threaded tops of glass and plastic containers. Checks the threads, outside diameter, spacing, etc.
Comb. Finish Gauge 28mm-PCO-1816 PET
Comb. Finish Gauge 28mm Pet/28-969-1716
Comb. Finish Gauge 38mm Glss/38-1663
Comb. Finish Gauge 38mm Pet/38-1690
Comb. Finish Gauge 28mm Glass/28-1650RE
Comb. Finish Gauge 28mm-PCO-1810 PET
Comb. Finish Gauge 28BPF
|
|
|
CanNeed-WTG-200 Wall Thickness Gauge
|
|
The CanNeed-WTG-200 Wall Thickness Gauge measures the Top wall and Middle wall Thickness for Trimmed 2-Piece Cans. Available for any Trimmed 2-Piece Cans of any height (Please indicate the can height when ordering).
Configure with Mitutoyo Standard SPC Data Output and the resolution can reach 0.001mm.
If purchase the adapter and cable, the gauge can be connected to a computer or SPC system for data collection.
|
|
|
CanNeed-CAN-7001/7002 CO2 Tester and Pressure Tester
|
|
CanNeed-CAN-7001, CAN-7002 CO2 Tester and Pressure Tester is for measuring the CO2 content in carbonated beverages filled in glass and PET bottles or cans. It is designed according to ASBC Theory of American Society of Brewing Chemists, corresponding to “GB/T 4928 – 2001 Brewing Analysis Methods” and “GB/T 10792 – 1995 Carbonated Beverage Analysis Methods”. Therefore, the machine is widely used by Quality and Technical Supervision Bureau and beverage enterprises.
It is applicable to the bottles or cans with different sizes. After the sample is pierced, the pressure is read on the pressure gauge as soon as the equilibrium pressure is achieved. The CO2 content is determined by means of the CO2 slide rule or temperature/pressure relationship charts.
|
|
|
CAN-1050 Can Closing Force Gages
|
|
The CanNeed CAN-1050 Can Closing Force Gages can lower scrap rates and set up time. you can quickly and easily job-set multiple-station canning machines. These Gauges come with and adjustable self-loading micrometer dial, calibrated in thousandths. This means you may accurately deflect spring-loaded can wear plates to any desired dimension.
|
|
|
CanNeed-CSS-300 Seam Saw
|
|
CanNeed-CSS-300 Seam saw is a special seam circular saw with double cut for double seam inspections.
The CanNeed -CSS-300 has specially designed for the irregular shaped cans, like rectangle cans, oval cans, etc. Also aerosol-cans can also be sawed with the saw. The nitrated blades achieve together with the speed of approx. 1.000 r/min. so that comes a very plain cut surface. The seam Image on the CanNeed series of Automatic Seam Monitors gets thereby very clear and improves measurement speed and reliability.
|
|
|
PEPT-100 PET Bottle Perpendicularity Tester
|
|
The CanNeed “PET Bottle Perpendicularity Tester ” is used to measure the perpendicularity of PET Bottle. The Tester is the industrial standard in PET bottle manufacturing and beverage industry. It consist of rotation clamp, digital Mitutoyo indicator and calibration column.
|
|
|
CanNeed-CAN-10774 Planer and Shaper Pin Height Gauge
|
|
CanNeed-CAN-10774 The Pin Height Gauge is commonly used in the initial setup of the seamer to ensure double seaming
performance and air removal.
All working surfaces are hardened and accurately ground.
|
|
|
CPG-200 Canners Pressure Gauge
|
The “CPG-200 Canners Pressure Gauge” is for measuring the inner pressure of the beverage or other containers.
Pierce into the sample with the piercing head of CPG-200, the seal component will form a temporary sealed condition, then the inner pressure of the sample will display on the pressure gauge.
CPG-200 consisting of: Piercing holder; pressure gauge; Piercing head and seal component.
|
|
|
FHS-100 Fill Height Syringe
|
Used to adjust water level in a bottle to a pre-determined fill height.
For checking content of bottle using the fill height Syringe accurately and quickly.
|
|
|

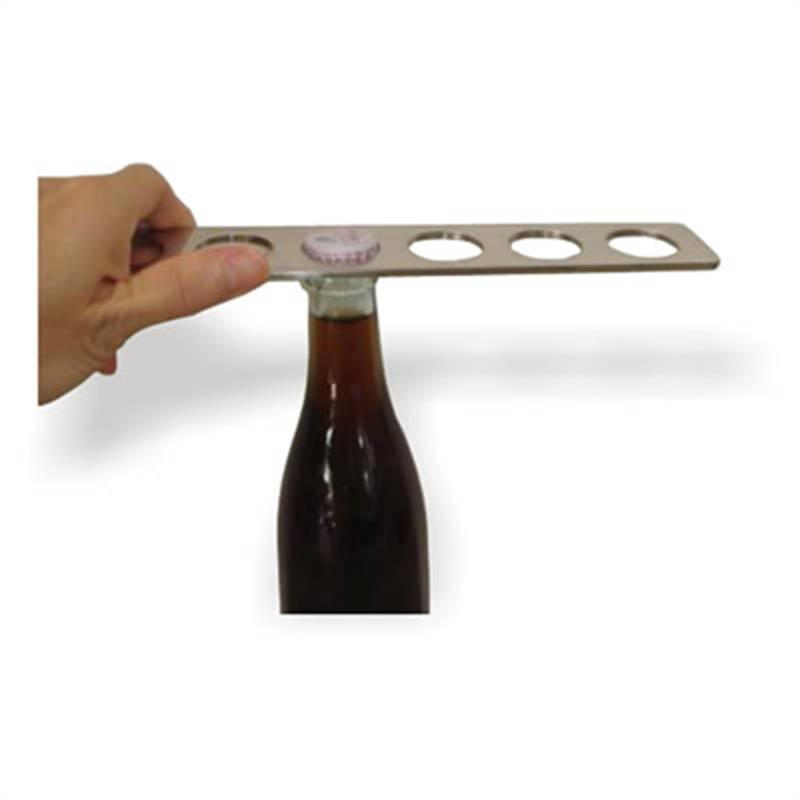

CANNEED-SCDG Crown Gauge
|
|
CanNeed-SCDG Crown Gauge is used to test the external diameter of the crown caps to see if it is qualified.
Judgment method : Qualified limit corresponding holes should be passed the bottle caps, but caps can not pass through corresponding holes if they’re below the lower Limit Usage: Place this SCDG on the crown cap, to see if the hole can pass the crown cap or not.
|
|
|
EBT-300 Buckle Tester for Loose Ends(with Missile Test)
|
|
The CanNeed "EBT-300 Buckle Tester for loose ends" is for testing the exact pressure at which the end buckles. Any end of varying diameter may be tested: change parts are available that can be exchanged within seconds. Three testing mode, "Buckle Test", "Missile Test", and "Score Burst Test".
|
|
|
CanNeed-CMD-200S Can Measure Desk for Rear Stations
|
The CanNeed CMD-200 Can Measure Desk for Rear Stations is developed on basis of the long experience of Rear stations in 2 -piece can product line.
CMD-200 Measures the Flange width, can height, inner Diameter. Please indicate the can type when ordering.
|
|
|
CanNeed-CAN-1050D Digital Can Closing Force Gauge
|
|
CanNeed-CAN-1050D Can Closing Force Gauge is for measuring the force of seaming head of the seaming machine. By using CanNeed-CAN-1050d, producers can avoid product defects caused by over plating: sharp edge, seam breakage, body deformation, body hook overlength, over large countersink and so on. In the meantime, producers can also avoid product defects caused by too small pallet lift force: slippery cans, too short hook and so on.
|
|
|
CanNeed-CAN-5000 Air Meter
|
|
The “CAN-5000 Air Meter “ is for measuring the total air content in carbonated beverages filled in glass and PET bottles and cans. And the air content in the headspace volume. This instrument is recommended for testing air content where greater speed and accuracy is required. It is applicable to various size of bottles and cans.
|
|
|
CanNeed SeamSight®-V3 Full Automatic Seam Monitor
|
|
The CanNeed Seam Sight® professional seam measuring software will do the line positioning automatically and the measurement to be finished within 1 second! The software also adopted the data base management system, all the measurement data will be restored in the system data base, so that to enhance the software performance and more convenience in data management. The result statistic and result chart has been added in the data base screen for overview and comparison. Meanwhile, the measurement screen has been optimized for a vivid result display.
The CanNeed Seam Sight® Full Automatic Seam Monitor has adopted the advanced optical system and Golden Lens® video capture device, which interference-free of external light source and ensured the high image definition and the measurement accuracy. The Seam Sight® system is equipped with the new seam measuring software Seam Sight® .
|
|
|
CanNeed-CAN-10774 Planer and Shaper Pin Height Gauge
|
|
CanNeed-CAN-10774 The Pin Height Gauge is commonly used in the initial setup of the seamer to ensure double seaming
performance and air removal.
All working surfaces are hardened and accurately ground.
|
|
|
CanNeed-CSG-200 Countersink Gauge (Digital)
|
|
The CanNeed-CSG-200 Countersink Gauge (digital) is a Digital gauge for measuring Countersink depth parameters (the depth of beader of can). With the Mitutoyo 0.01mm Resolution Digital Indicator.
The gauge can be connected to a computer or SPC system via the adapter and cable, so that to avoid the manual recording and personal error. The gauge can also combine with Canneed Seam Monitors and import the measurement data into computer.
|
|
|
|
CAN-1050 Can Closing Force Gauge
|
"CAN-1050 Can Closing Force Gauge" is for measuring the force of seaming head of the seaming machine. Advantages:
1. Deduct the scrap rate of the production
2. Shorten the adjusting time, improved production efficiency.
3. Improved the seam quality
|
|
|
CanNeed-CND-TRK-300 Oven Temperature Tracker
|
|
The “CanNeed-TRK-300 Oven Temperature Tracker” is a professional oven temperature curve inspection system for the coating industry, it is including the data logger, heat insulation case, software (Chinese / English) and thermocouples.
"CanNeed-TRK-300 Oven Temperature Tracker” is use to pass through the oven with the solidifying products, and record down the real temperature during the process. The logger is in the centre of the system. Heat insulation case is for protecting the logger from over heat by the oven. When passing through the oven, the CanNeed-TRK-300 Oven Temperature Tracker will record down the real time temperature of the solidifying products through the 5 thermocouples which were connected to the products, and one thermocouple is for recording the air temperature of the oven. After the recording process was finished, use the CND_TRK Software to analyze the temperature data and generate the detail reports.
|
|
|
CanNeed-AS-100 AutoShaker Beverage CO2 Calculator
|
|
The “AS-100 AutoShaker Beverage CO2 Calculator” is a patented instrument which is for calculating the carbon dioxide content in the filled beverage in glass/PET bottles and cans. The simple operation which guarantees high reproducibility has led to its becoming a significant element of Quality Assurance in the drinks industry.
Attributes:
- Rotate by motor, avoid shaking by hand, guarantees high reproducibility
- With protection drum, more safety
- Measurement just need 3 minutes
- Simple operation
- Applicable to most common glass bottle PET bottle and cans.
|
|
|
CanNeed-AS-200d Digital AutoShaker Beverage CO2 Calculator
|
The “AS-200d Digital AutoShaker Beverage CO2 Calculator” is a patented instrument which is for calculating the carbon dioxide content in the filled drink in glass/PET bottles and cans. The simple operation which guarantees high reproducibility has led to its becoming a significant element of Quality Assurance in the drinks industry.
Attributes:
- Rotate by motor, avoid shaking by hand, guarantees high reproducibility
- With protection drum, more safety
- High accuracy, calculate the CO2 content automatically
- Good repeatability
- Simple operation
- Easy to calibrate
- Applicable to most common glass/PET bottle and cans.
|
|
|
CIDG Cap internal diameter Gauge
|
|
The “CIDG Cap Internal Diameter Gauge”is used to test the internal diamter of the crown caps to see if the gland is qualified or not.
|
|
|
PNR-E100 Pressure No Return Tester for Ends
|
|
The CanNeed "PNR-E100 Pressure No Return Tester for Ends" can measure the PNR value (Plastic Deformation) and the buckle value of the ends. During the whole pressurization process, use the micrometer to track and measure the deformation amount, generate the curve through the software and analyze the correlation between pressure and deformation amount of the ends.
|
|
|
SCO Sanitary Can Opener
|
A unique opener used to remove the centre section of the can end while keeping the double seam intact.
Sample can diameter: 40-300 mm 3-piece cans
|
|
|
CanNeed-L-100 CO2 Purity Tester
|
|
The “CanNeed-L-100 CO2 Purity Tester” adopts Alkali Absorption Method to measure the purity of CO2. It is widely used in gas monitoring station and brewery plants. CanNeed-L-100 is a CO2 purity tester with the highest accuracy of the world. Accuracy: 0.001%.
|
|
|
FWG-100-D, FWG-200-D, FWG-300-D Flange Width Gauge
|
|
The “CanNeed-FWG-100-d, CanNeed-FWG-200-d, CanNeed-FWG-300-d Flange Width Gauge (digital)” is used to measure the flange width of empty cans. Reliable design, invariableness measuring pressure and measuring angle which enable the inexperienced operators can also perform the measurement accurately. Auto aligning the center of can body, applicable for different types of cans.
If purchased the adapter and cable, the gauges can be connected to a computer or SPC system for data collection, avoiding the manual recording and personal error.
|
|
"If you can not find the product you need, please contact us or leave a message."
|
|
